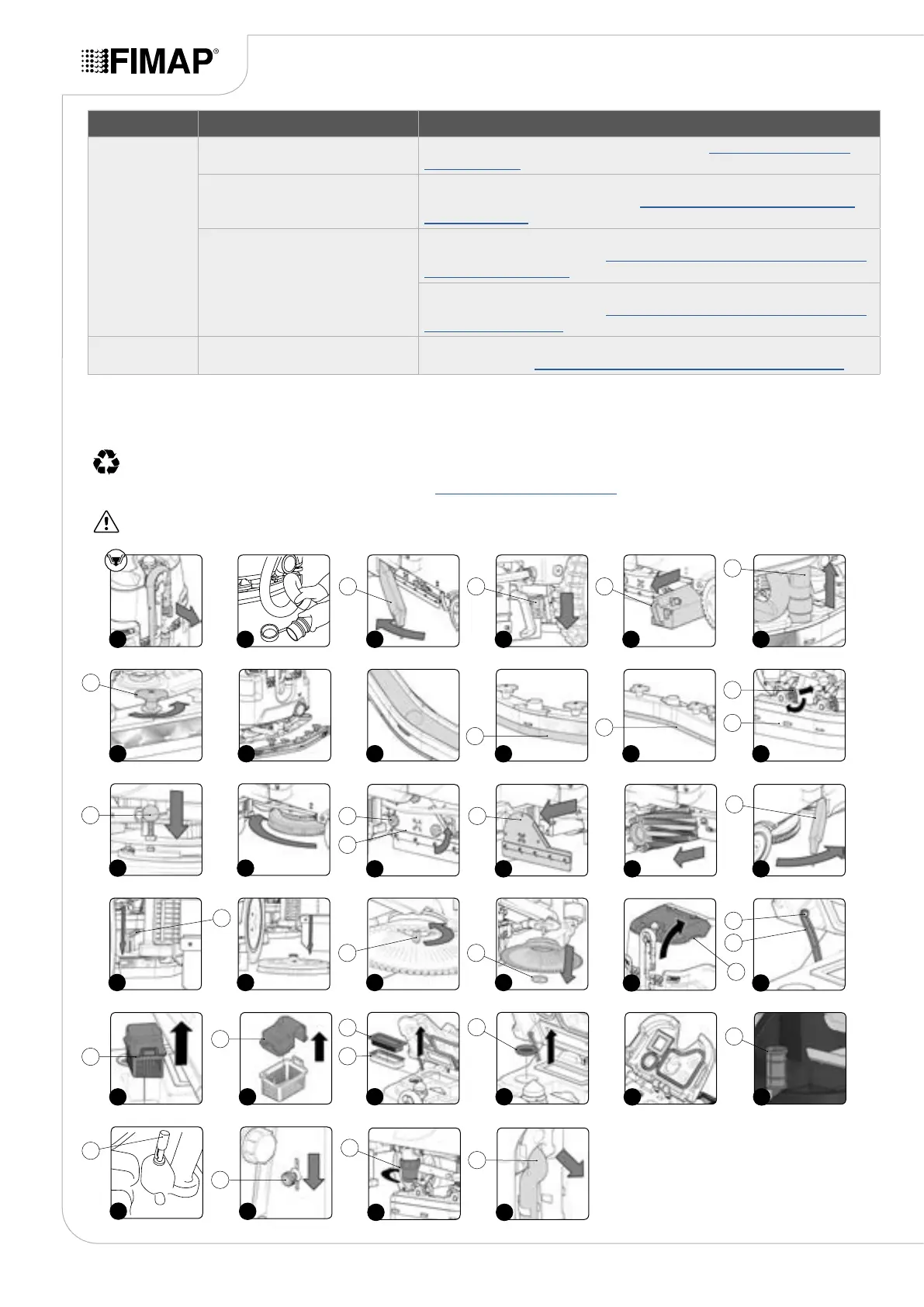

Before carrying out any routine maintenance operations, proceed as follows:
1. Take the machine to the maintenance area.
N.B.: the place given over to this operation must comply with current environmental protection regulations.
2. Make sure the machine is in a safe condition (see chapter “MACHINE SAFETY MEASURES”).
CAUTION: it is recommended to wear the appropriate PPE (Personal Protective Equipment), suitable for the work to be carried out.
28
34
4
33
32
27
28
31
26
3029
27
25
22
23
28
24
26
21
25
24
22
23
17
20
18
19
16
21
15
19 20
18
13
14
1715 16
11
12
12
1413
12
8
9
10
7 8
6
4
5
11
9
10
6
7
4 53
21 3
21
INTERVAL MACHINE COMPONENTS PROCEDURE
WEEKLY
Machine water system
Clean the lter in the machine's water system (see “CLEANING THE WATER
SYSTEM FILTER”).
Squeegee rubber blades
Check that the rubber blades on the squeegee body are intact and inspect for
wear; if necessary, replace these (see “REPLACING THE SQUEEGEE BODY
RUBBER BLADES”).
Brush head brushes
Check that the brushes on the brush head body are intact and inspect for wear;
if necessary, replace these (see “ASSEMBLING THE BRUSH HEAD BRUSHES
(SCRUBBING VERSION)”.
Check that the brushes on the brush head body are intact and inspect for wear;
if necessary, replace these (see “ASSEMBLING THE BRUSH HEAD BRUSHES
(SWEEPING VERSION)”.
MONTHLY Squeegee rubber blade levelling
Check that the rubber blades on the squeegee body are level and if necessary,
adjust these (see “ADJUSTING THE SQUEEGEE BODY RUBBER BLADES”).
