5-38

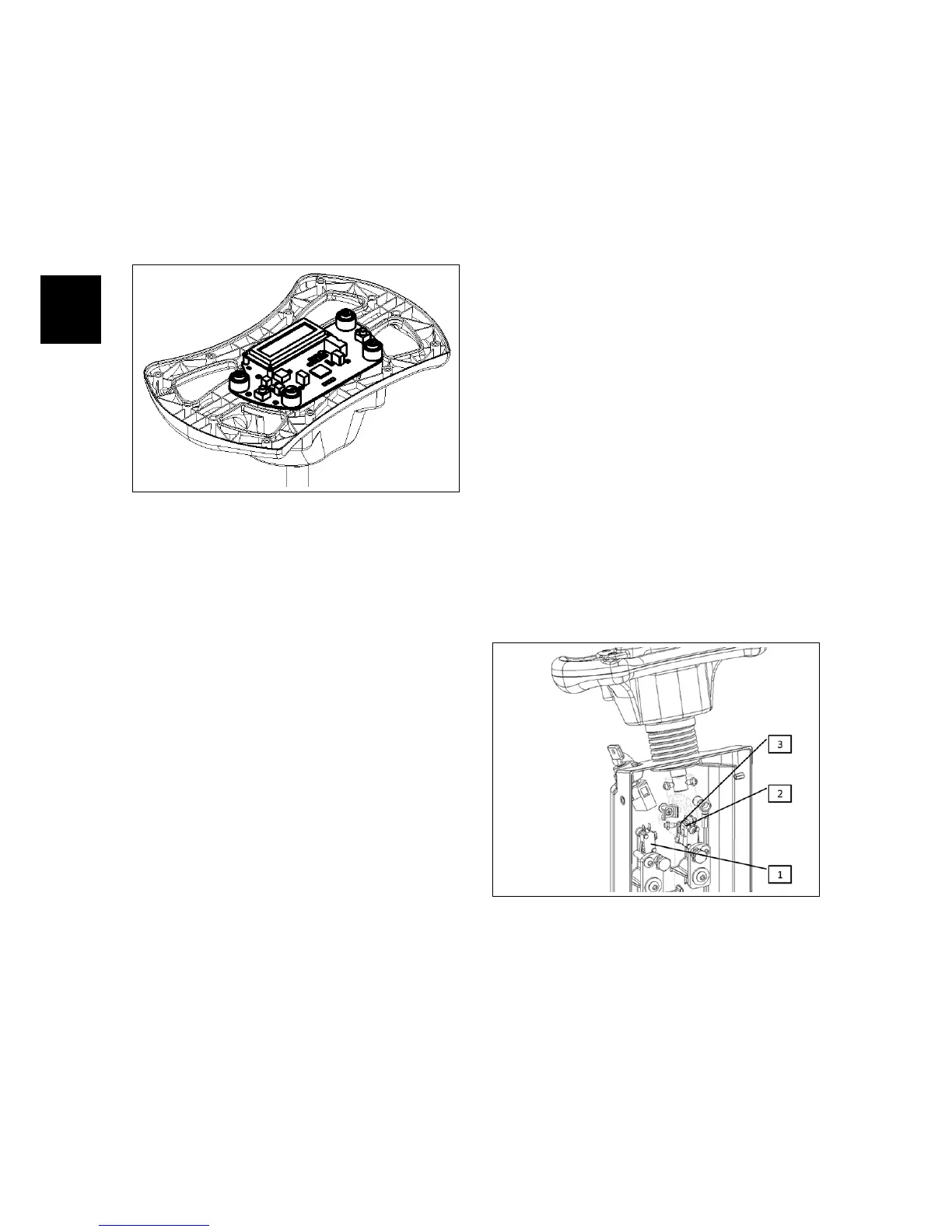

5.3.3 Control Card
The Control Card is located inside of the
steering wheel and transfers all the in-
formation and settings to the Main Card.
The Control Card is linked to the Main
Card by a connecting cable (item J6).
5.3.4 Microswitches
The machine is provided with a series of
microswitches that send signals to the
main card. In particular:
• Brush motor Microswitch (1). With
lowered brush deck lifting lever and
closed micro the deck goes down to
the floor and the brush motor starts
running (as long as the gear pedal
is pressed). The cleaning function is
active.
• Vacuum motor Microswitch (2). With
lowered squeegee lifting lever and
closed micro the squeegee goes down
to the floor and the vacuum motor
starts running. The cleaning func-
tion is active.
• Reverse function Microswitch (3).
With lowered squeegee lifting lever
and activated drying function (closed
microswitch) the reverse function is
inhibited.
