3.8.3 PLACING MATERIAL INSIDE THE COMPARTMENT
Care must be taken when loading material, to avoid malfunctions and allow air flow to ensure temperature uniformity
inside the refrigerated compartment.
Observe the following instructions:
✓ Do not place material over the label indicating the maximum permitted loading level, if present.

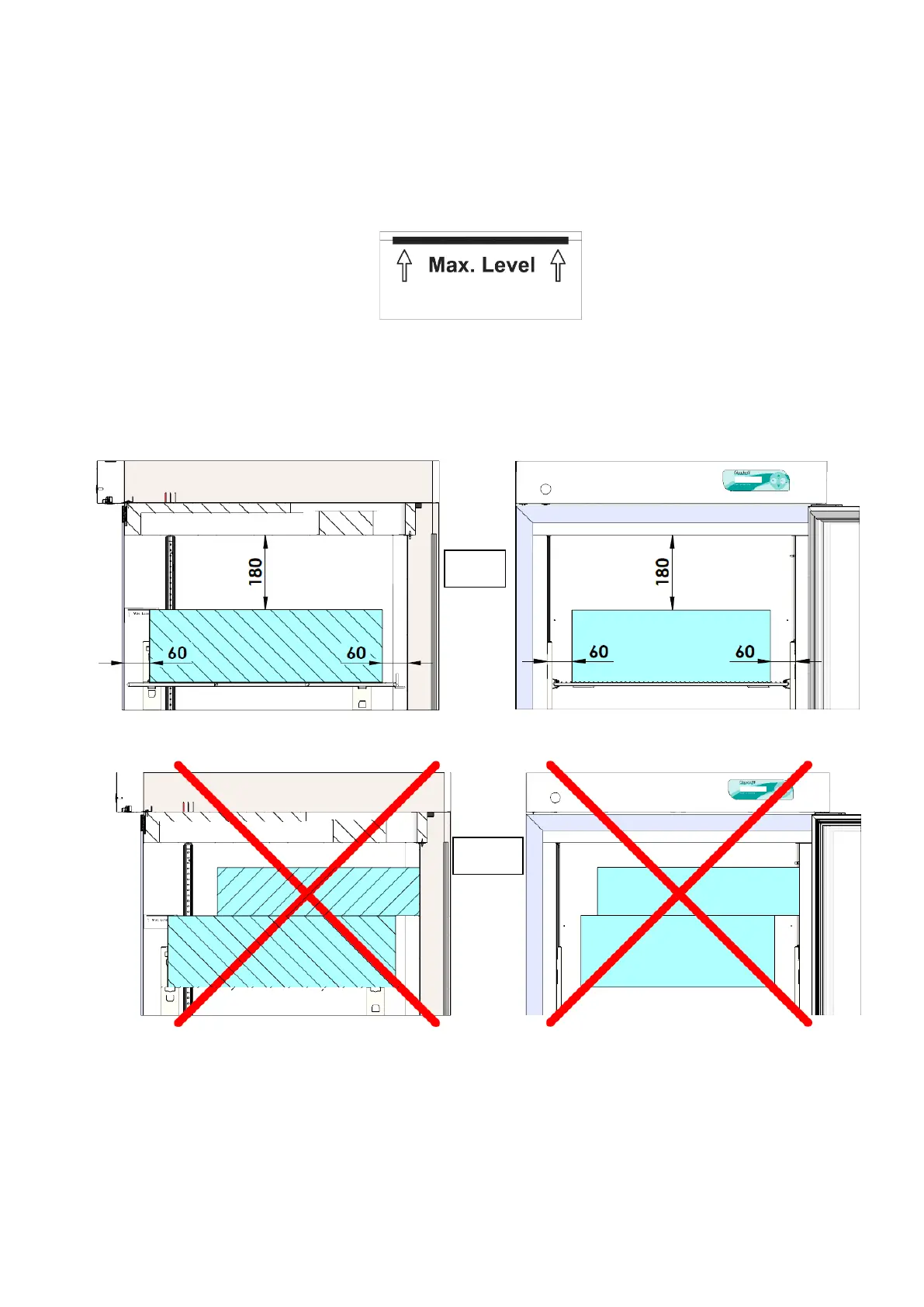

✓ Store material leaving a distance of at least 6 cm from sides and at least 18 cm from the top of the compartment
(Figure 11-12)
Figure 12 – Correct material storage
Figure 13 – INCORRECT material storage
NO
PO
SI
Figure 11 - Max. level label
