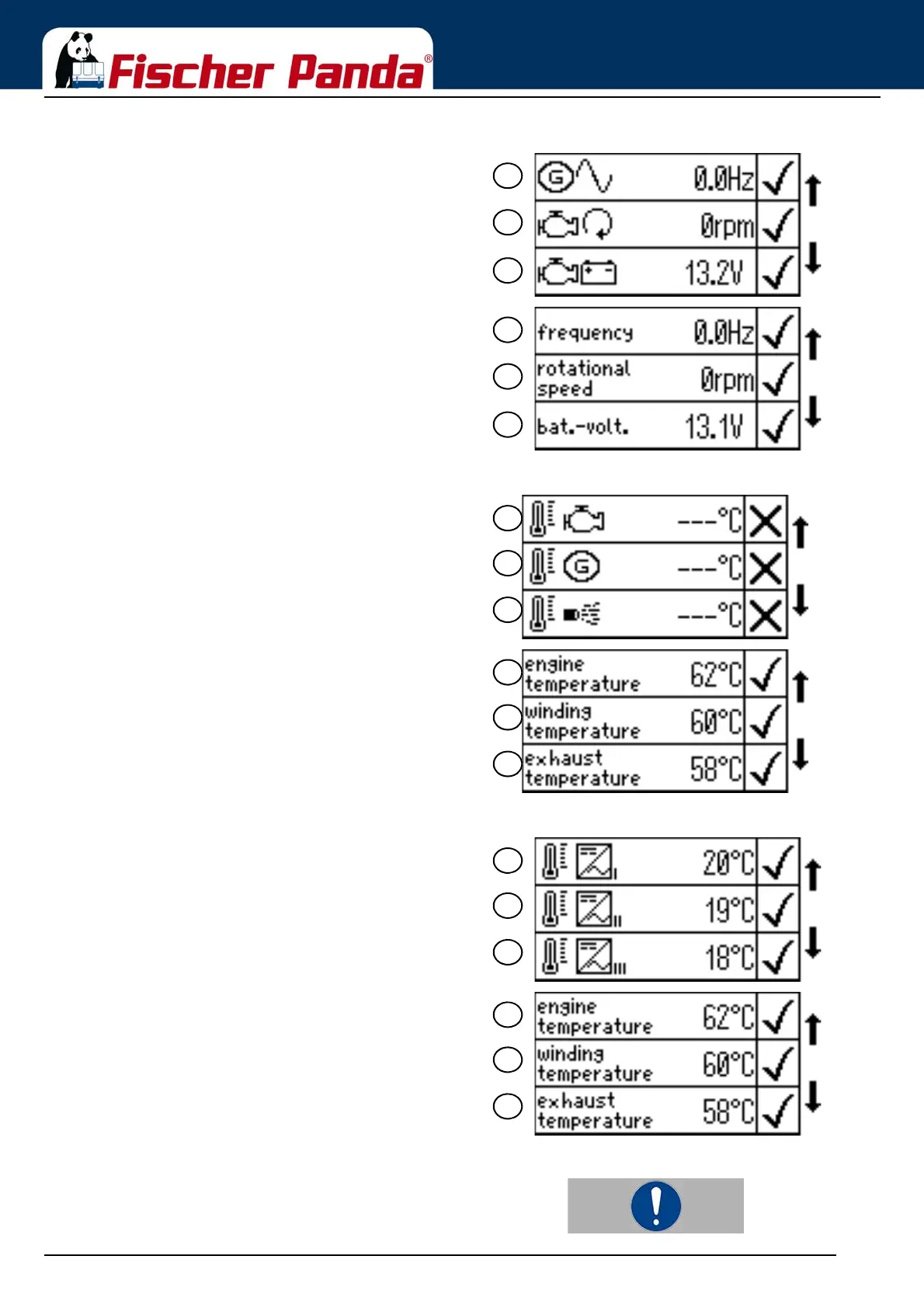

Fig. 2.3.4-6: Overview Page 4 Symbols/EnglishOverview Page 4:
09. Frequency of the generator [Hz]
10. Generator speed (r.p.m.)
11. Voltage of the starter battery [V]
Fig. 2.3.4-7: Overview Page 5 Symbols/EnglishOverview Page 5:
12. Temperature of the cylinder head
13. Temperature of the generator winding
14. Temperature at exhaust manifold
Fig. 2.3.4-8: Overview Page 6 Symbols/EnglishOverview Page 6:
15. Inverter Temperature L1
16. Inverter Temperature L2
17. Inverter Temperature L3
Note:If the information pages of optional components (e.g. fuel
gauge, oil pressure) are available, then these pages are
inserted after Overview Page 4.
