Basics
Seite/Page 26 - Kaptitel/Chapter 5: Basics 14.7.16
5.4.2 Fischer Panda transport box with metal tab closure
1. Bend up the metal tab closures on the transport box lid
2. Remove the cover
3. Remove the loose
4. Bend open the metal tab closures at the bottom of the transport box
5. Remove the sidewalls
6. Open the generator attachment
5.5 Opening the MPL sound insulation capsule

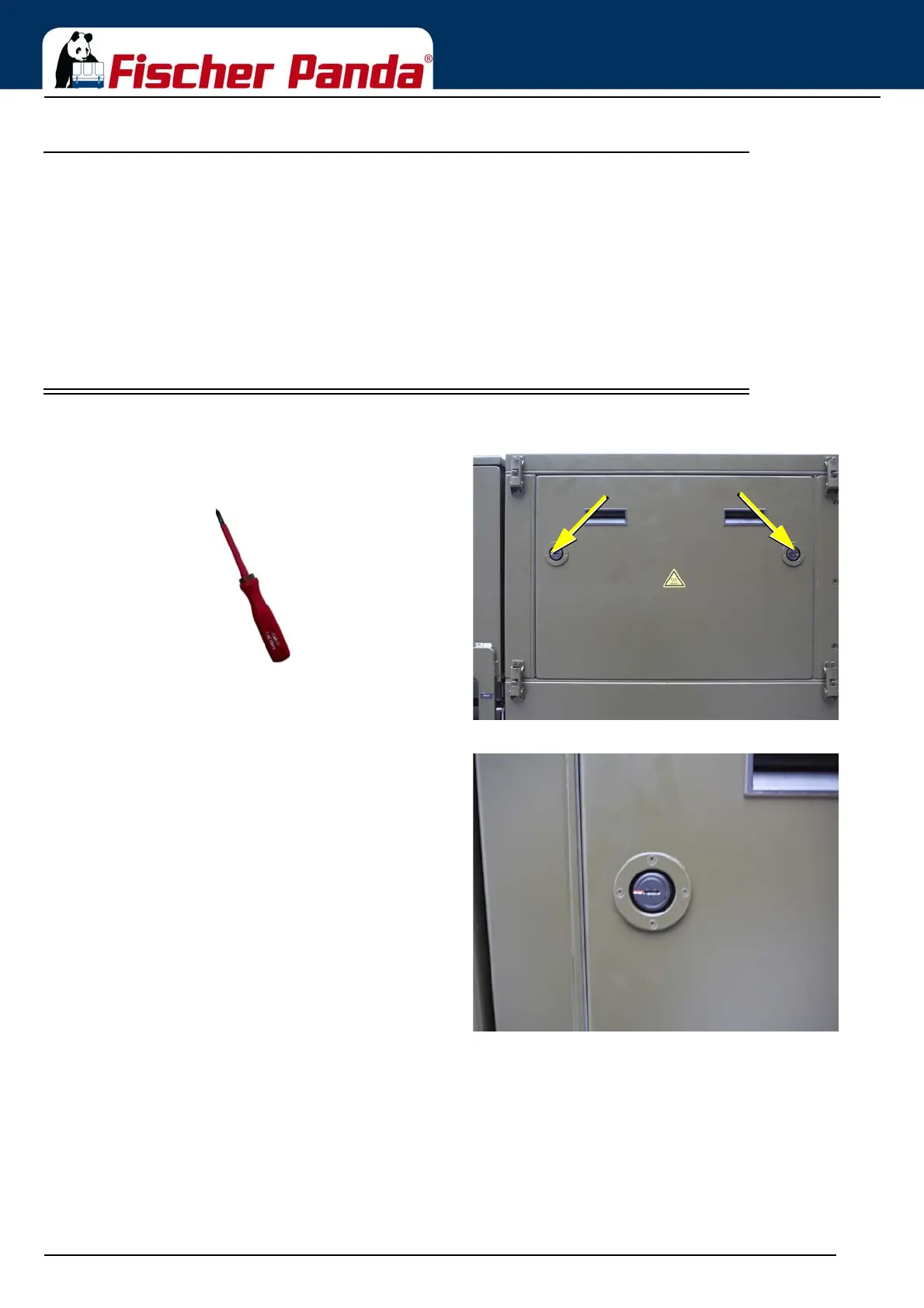

Fig. 5.5-1: Sound insulation capsule, side partTo open the sound insulation capsule, the closures must
be rotated roughly 180° counter-clockwise. Use a flat
head screwdriver. Pull the sidewalls out by gripping into
the slots.
Fig. 5.5-2: Closure lockedClosure locked
