Panda 5000i PMS generator
Seite/Page 36 - Kaptitel/Chapter 6: Panda 5000i PMS generator 14.7.16
6.1.3 Front View

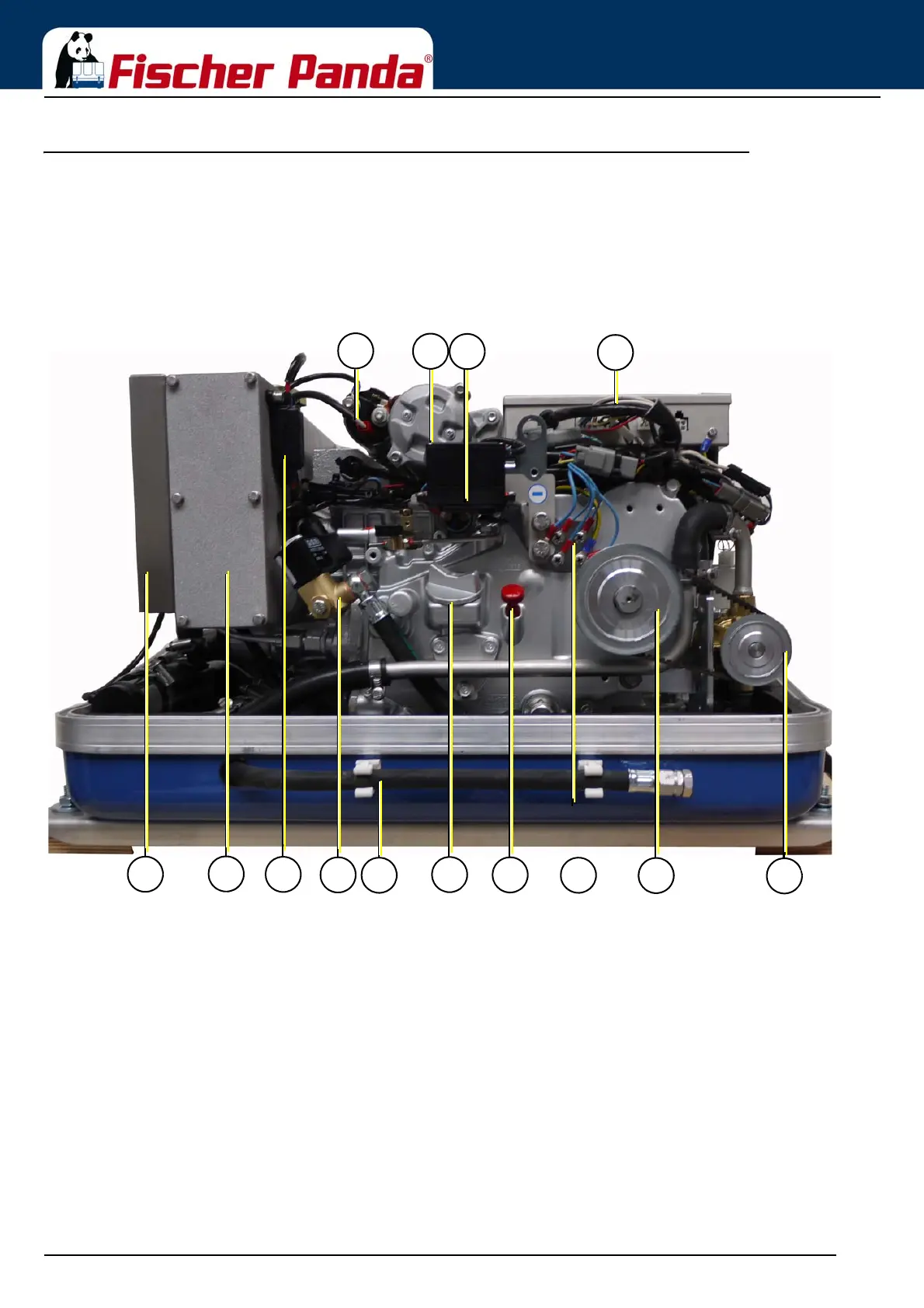

Fig. 6.1.3-1: Front side view
13
14
01
09
08
07
06
05
11
10
02
03
04
12
01) Solenoid switch for starter motor
02) Starter motor
03) Actuator
04) Housing with iControl electronic board „DO NOT OPEN“
05) Raw water pump
06) Pulley
07) Ground connection terminal
08) Oil dipstick
09) Engine oil filler neck
10) Oil drain hose
11) Fuel solenoid valve
12) Fuse 30A
13) Air suction housing with air filter inlet
14) Suction port
