Fischer Panda Panda 5000i PMS - Components of the Fuel System

Panda 5000i PMS generator
14.7.16 Kapitel/Chapter 6: Panda 5000i PMS generator - Seite/Page 41
6.2.4 Components of the Fuel System

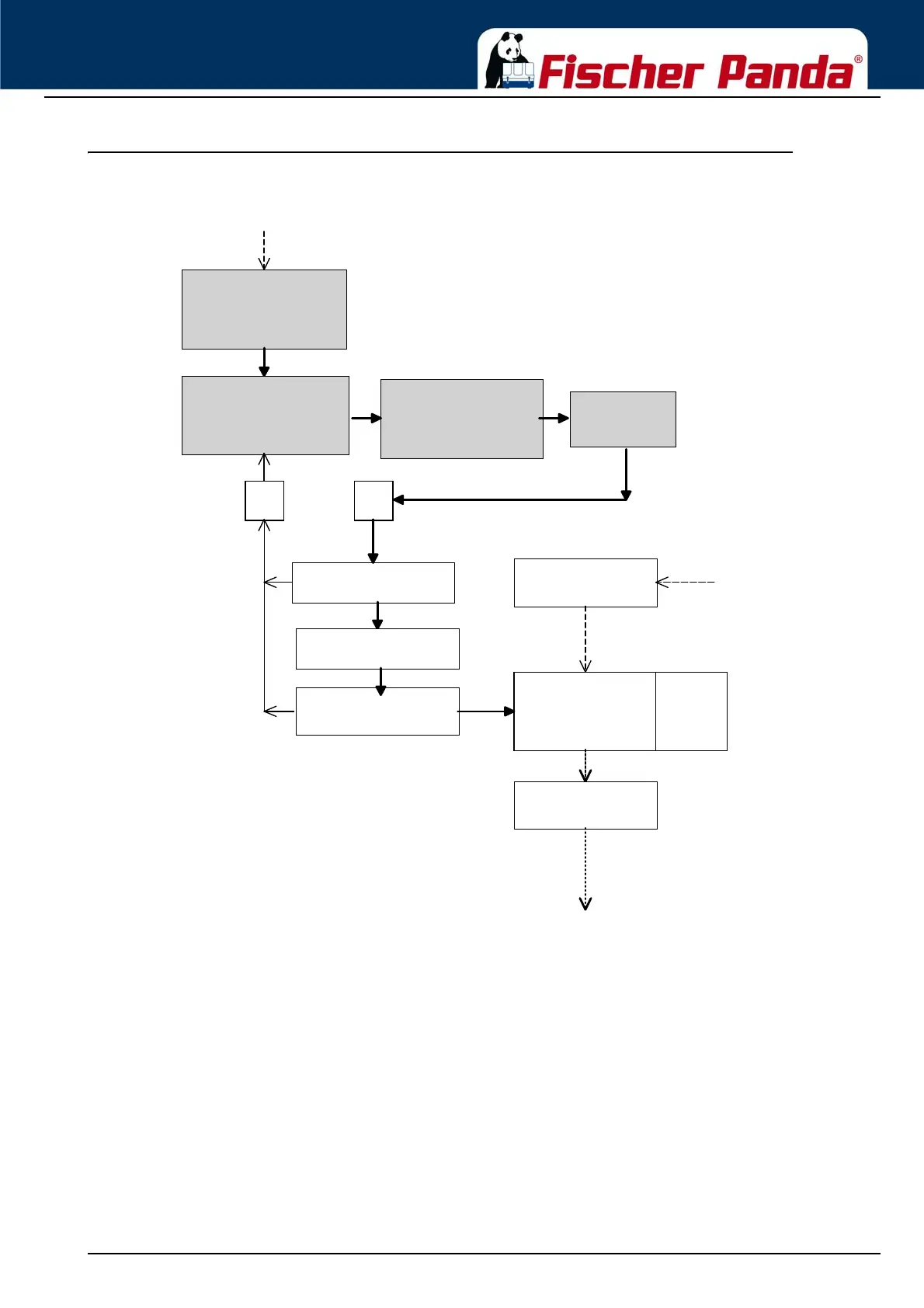

Fig. 6.2.4-1: Components of the Fuel System
external Tank
external elec. fuelpump
fuel stop solonoid
fuel injection nozzle
fuel
in
fuel
out
air filter housing
engine
Kubota EA300
exhaust elbow
glow
plug
automatic venting
filler cap with strainer
injection pump
Fuel filter +
water seperator
fuel in
exhaust
out
combustion
air in
