Installation Instructions
14.7.16 Kapitel/Chapter 7: Installation Instructions - Seite/Page 71

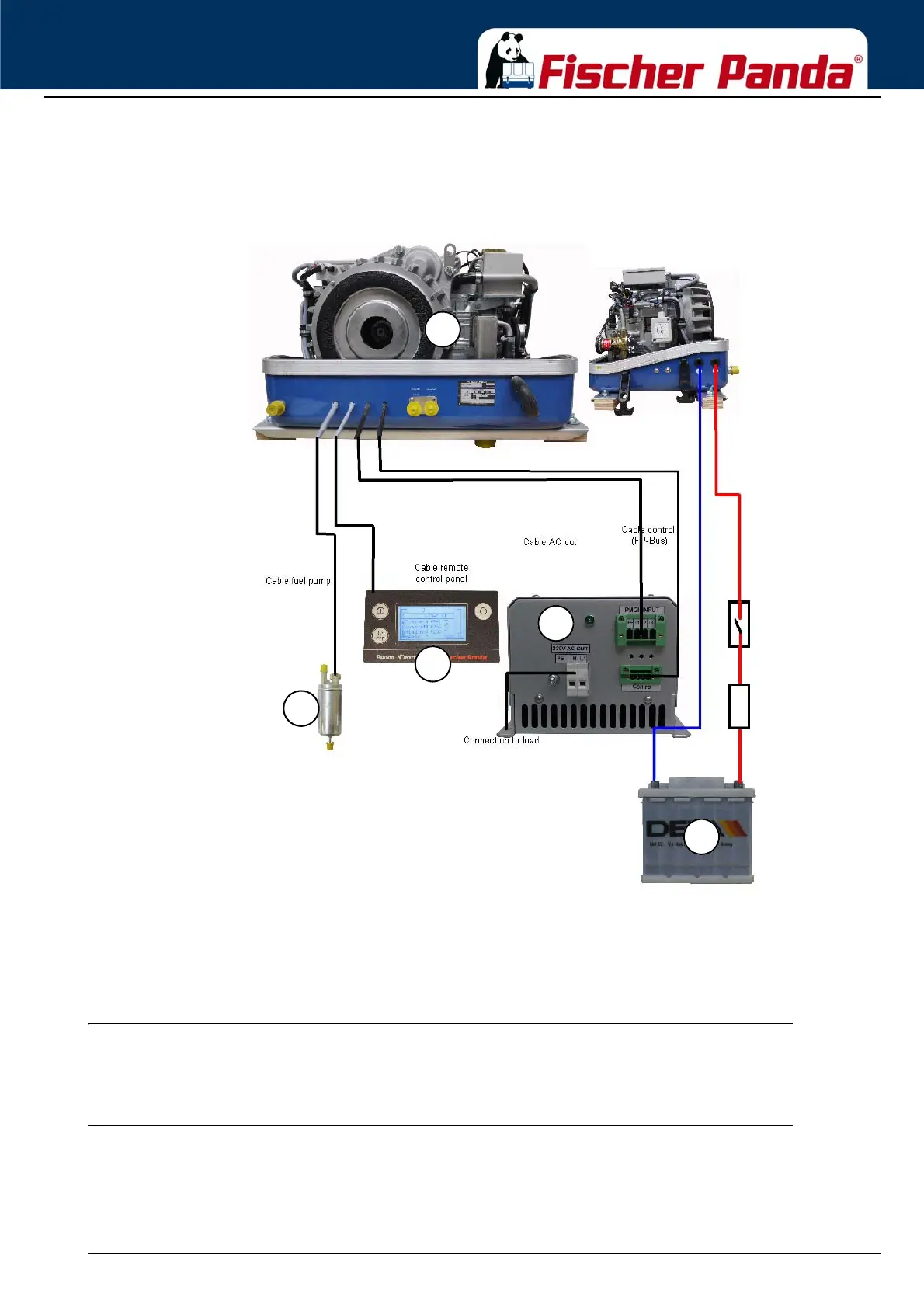

Fig. 7.13-1: Electrical installation - example
7.13.1 Installation PMGi inverter - See separate PMGi 5000 inverter manual
All electrical safety installations have to be made on board.
7.13.2 Power source selector
A power source selector switch must be installed between the generator (or if applicable, AC-Control box)
and the ship's electrical supply system. This switch must used to ensure that all AC consumers can be
switched off at once. This switch should also be installed to keep the generator and shore (grid) power
1. Generator
2. Electrical fuel pump DC
3. PMGi 5000 inverter
4. iControl panel
5. Starter battery DC
