Installation Instructions
14.7.16 Kapitel/Chapter 7: Installation Instructions - Seite/Page 53

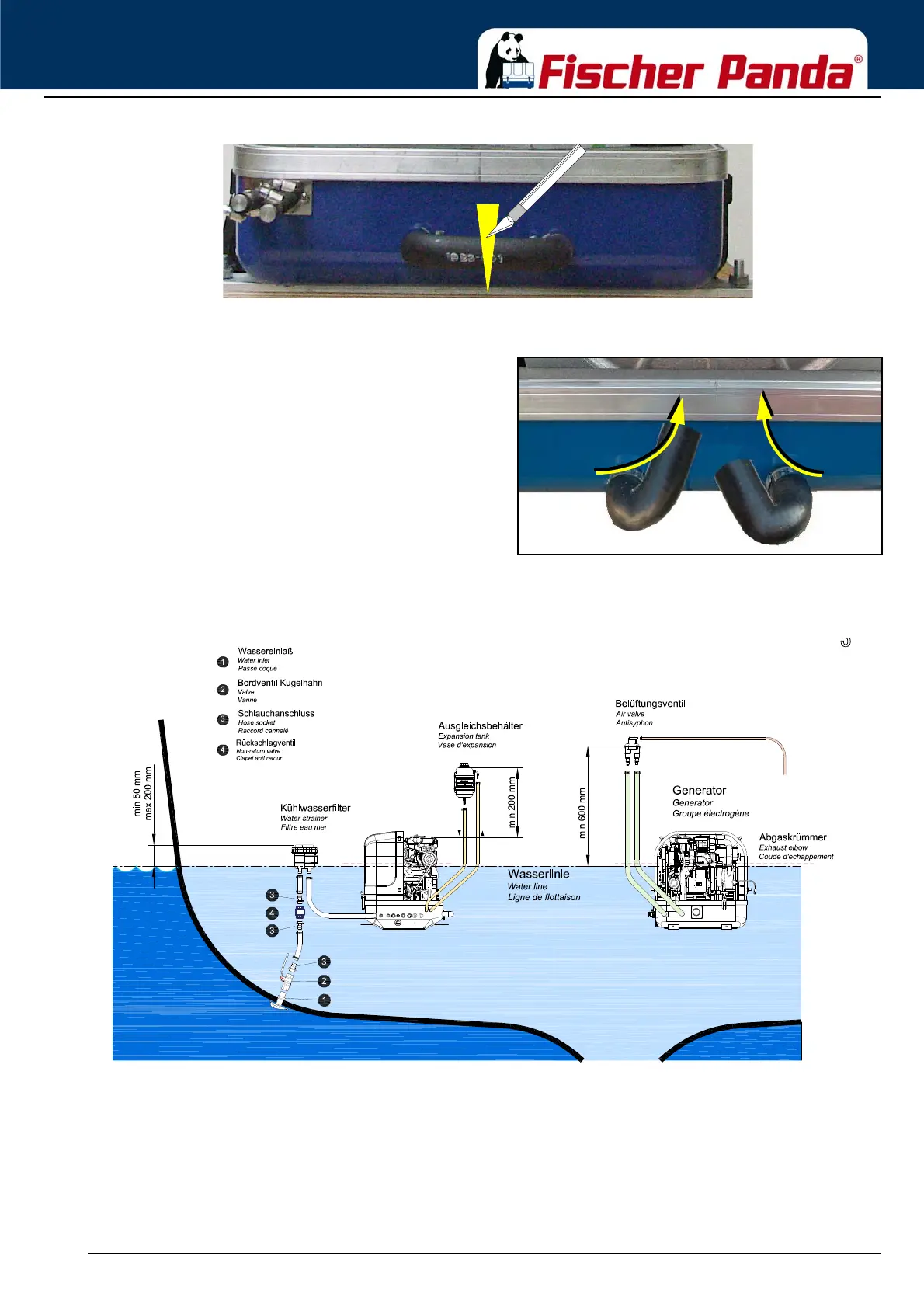

Fig. 7.4.5-2: Rubber hose for vent valve - example
The rubber hose for the external vent valve will be cut...
Fig. 7.4.5-3: Split rubber hose for vent valve ...and bend upwards.
Both hose ends will be extended respectively with a
hose and connected with a vent valve 600 mm over the
waterline.
Example
7.4.5.1 Raw water installation scheme
Fig. 7.4.5.1-1: Raw water installation schema
