Panda 5000i PMS generator
Seite/Page 34 - Kaptitel/Chapter 6: Panda 5000i PMS generator 14.7.16
Description of the Generator
6.1.1 Right Side View

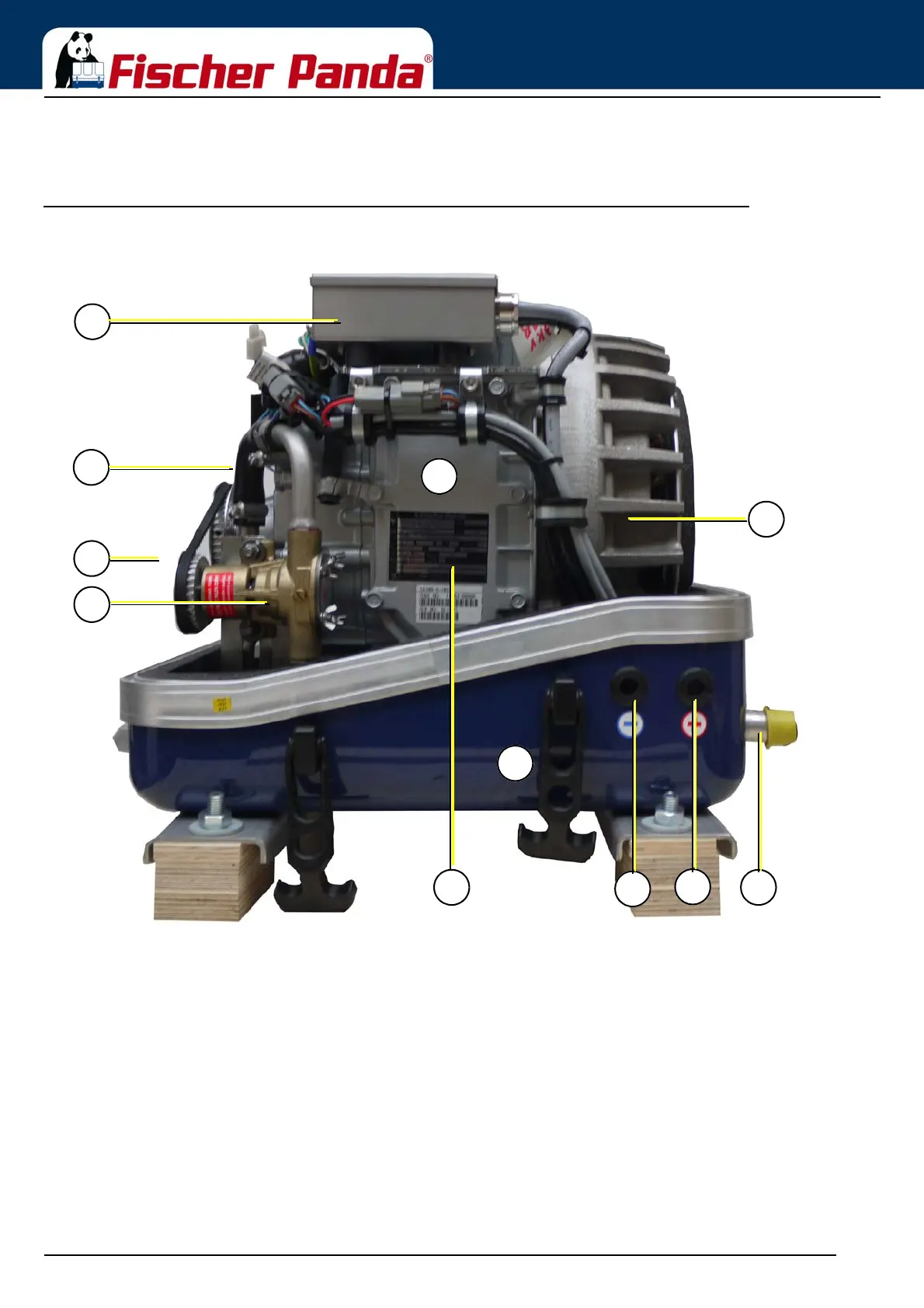

Fig. 6.1.1-1: Right side view
01
03
04
06
10
05 09
11
08
07
02
01) Housing with iControl electronic board (DO NOT OPEN)
02) Coolant pipe, raw water pump - heat exchanger
03) Toothed belt
04) Raw water pump
05) Type Plate
06) Sound cover base part
07) Passage for battery cable (+)
08) Passage for battery cable (-)
09) Raw water inlet
10) Engine Kubota EA300
11) Generator housing with coil
