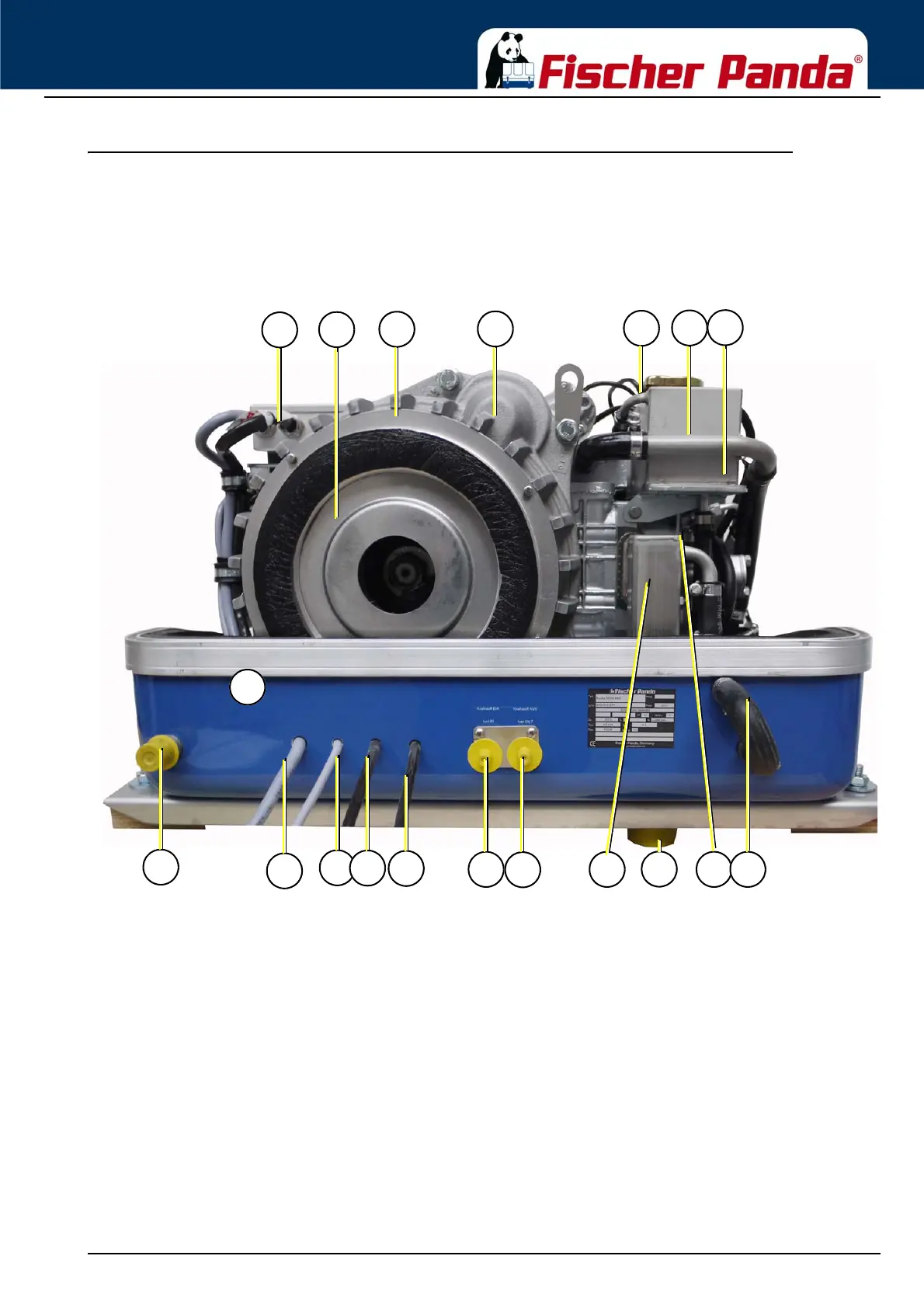

Fig. 6.1.4-1: Back side view
01) Housing with iControl electronic board „DO NOT OPEN“
02) Generator front cover
03) Generator housing with coil
04) Starter motor
05) Cooling water filler neck
06) Cooling water tank
07) Coolant pipe, water pump - engine
08) Connection external ventilation valve
09) Raw water injection nozzle
10) Exhaust outlet (through capsul bottem)
11) Exhaust elbow
12) Connection for fuel OUT
13) Connection for fuel IN
14) FP bus cable to PMGi
15) Cable for fuel pump
16) Cable for iControl
17) Cable for PMGi
18) Sound cover base part
19) Raw water inlet
