2 Technical Description
2.1 Basic unit components
*) Without fan chamber VDI 6022 certification is not applicable!

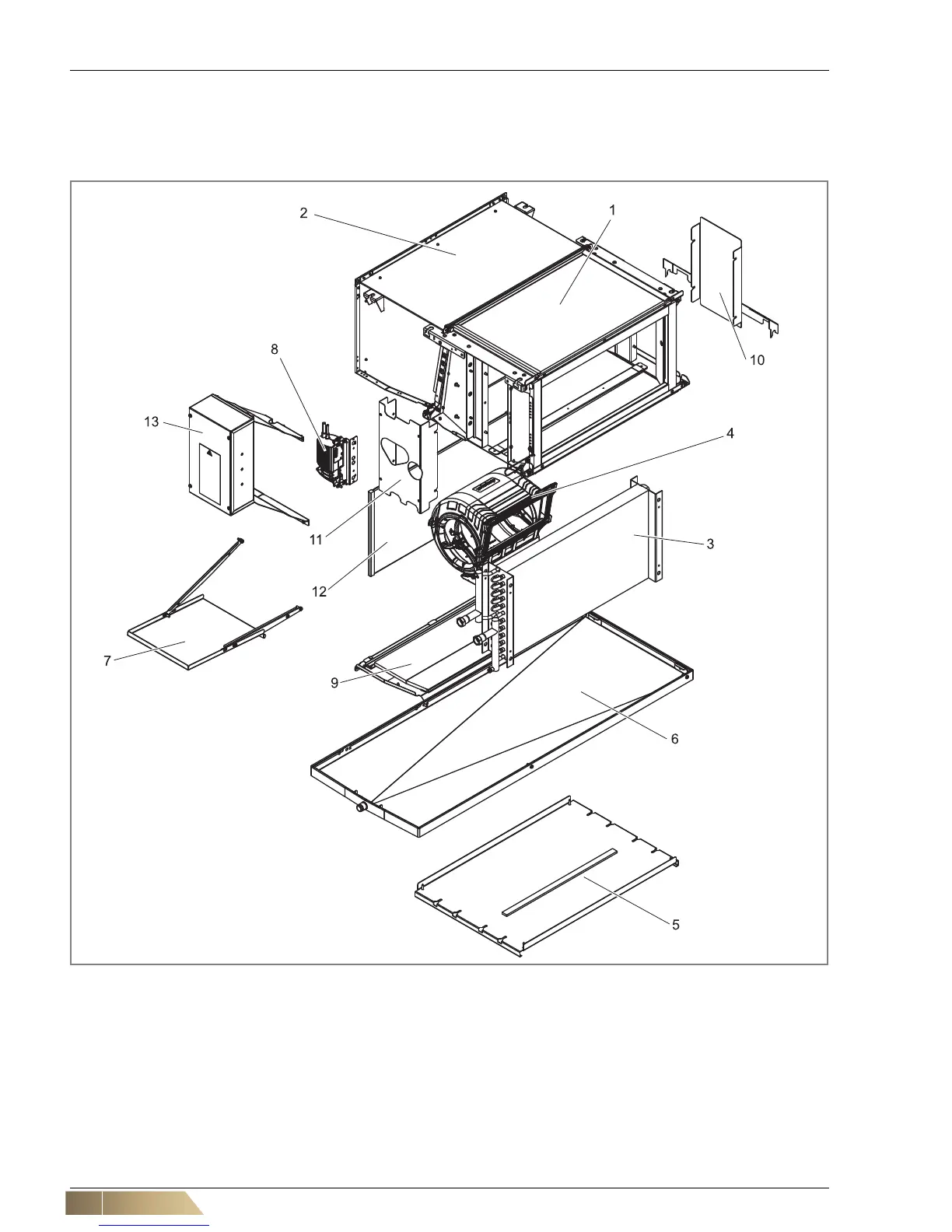

Fig. 2-1: Basic unit components
Pos. 1: Basic casing (incl. assembly mountings)
Pos. 2: Fan chamber (optional)*
Pos. 3: Heat exchanger: Cu/Al
Pos. 4: Fan
Pos. 5: Bottom basic casing cover (instead of condensate tray
Pos. 6, for heating-only units)
Pos. 6: Condensate tray (optional)
Pos. 7: Auxiliary condensate tray
(only for unit type U - GH##.U###.#####)
Pos. 8: Condensate pump (optional)
Pos. 9: Service panel
Pos. 10: Cover for heat exchanger and condensate drain
Pos. 11: Heat exchanger cover (only for unit type H
- GH##.H###.#####)
Pos. 12: Filter
Pos. 13: Electric switch cabinet (optional)
