HyPower-Geko Mounting
FläktGroup DC-2014-0022-GB 2018-05/R5 • Subject to modifications 27
4.2 Recommended service opening for maintenance work on the basic unit
4.2.1 Unit type U (GH##.U###.#####)
In order to carry out all necessary service and maintenance work on the basic unit it is
recommended that a service opening with minimum dimensions of B x 1150 mm (B
x
1040 mm)* is provided (see
fig. 4-1).
Pos. 1: Condensate tray - small - unit type U
Pos. 2: Service panel
Pos. 3: Filter behind cover strip
Pos. 4: Discharge transition piece (ZGH.#A912)
Pos. 5: Auxiliary drain pan

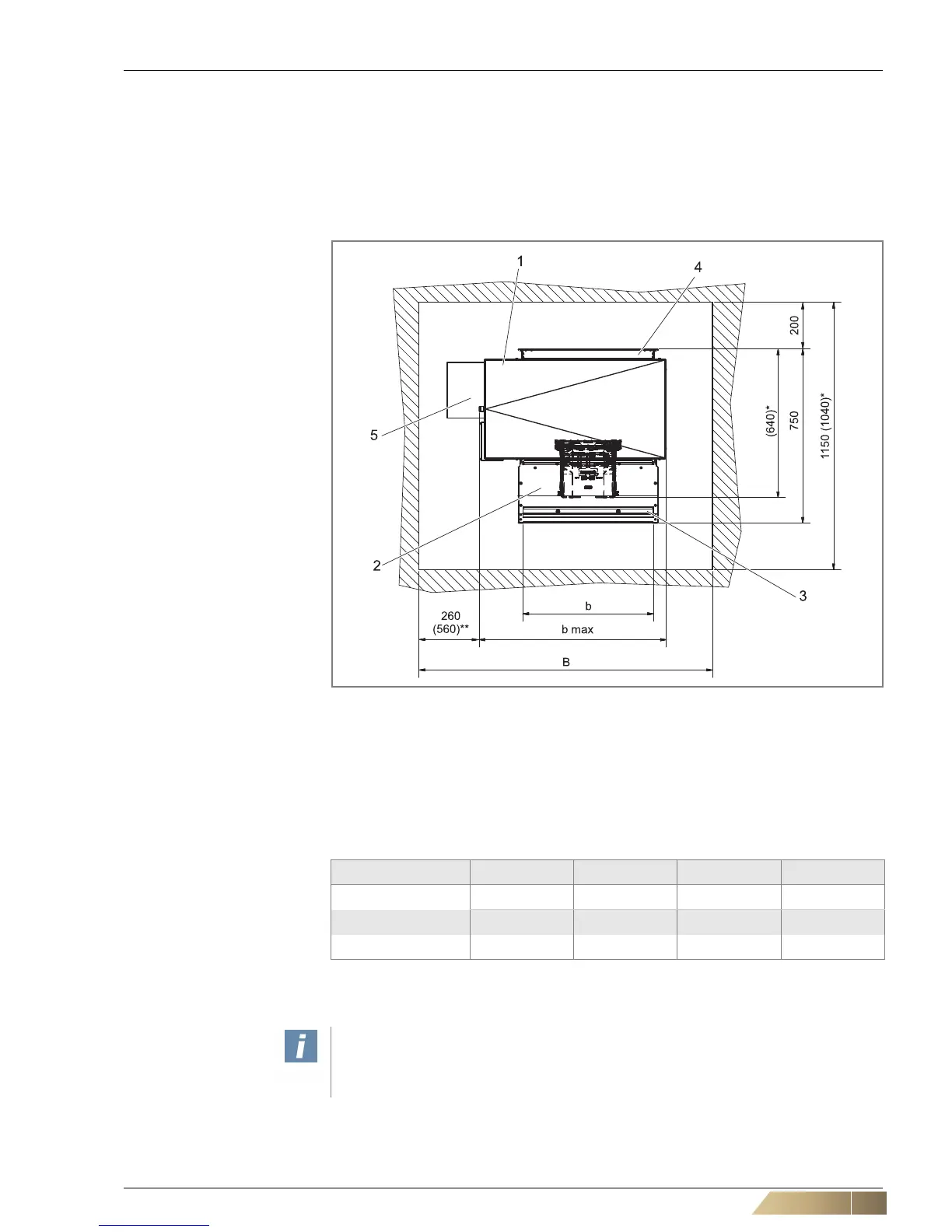

Fig. 4-1: Service opening - unit type U (GH##.U###.#####)
*) Dimensions in brackets apply to units without fan chamber
**) Dimensions in brackets apply if an auxiliary drain pan is used
Model size 1 2 3 4
b [mm] 560 865 1170 1590
b
max
[mm]*** 805 1110 1415 1835
B [mm]*** 1265 (1565)** 1570 (1870)** 1875 (2175)** 2295 (2595)**
Tab. 4-1: Size of unit type U (GH##.U###.#####) and service opening
***)
Dimensions also apply for units with function "only heating"
User instructions!
Please consider that further or larger openings may be needed, if accessories are
mounted.
