2.2 Material specification
2.3 Range of Application
2.3.1 Water inlet temperature
To prevent condensate from forming on non-insulated casing parts when the tempera-
ture falls below the dew point during cooling operation, certain minimum inlet tempera-
tures must be maintained. These temperatures depend on ambient temperature and
indoor relative humidity and are specified in the following diagram.
Example:
The room temperature is 28°C, the relative humidity is 60%. According to the diagram
(fig. 2-2), the minimum allowable water inlet temperature is 8°C.
Unit part Material
Fan chamber (optional) Galvanized sheet steel (optionally: insulation made of mineral wool laminated
with glass fiber)
Basic casing (including assembly mountings) Galvanized steel sheet, insulation PE
Heat Exchanger Copper/aluminium (copper/copper, copper/alodine)
AC and EC-Motor Different materials
Connecting cable Different materials
Fan with casing Plastic
Condensate pan Galvanized sheet steel with polyethylene thermal insulation on the underside
Filter Filter fleece, synthetic
Auxiliary drain pan Galvanized metal sheet
Tab. 2-1: Material specification of unit components

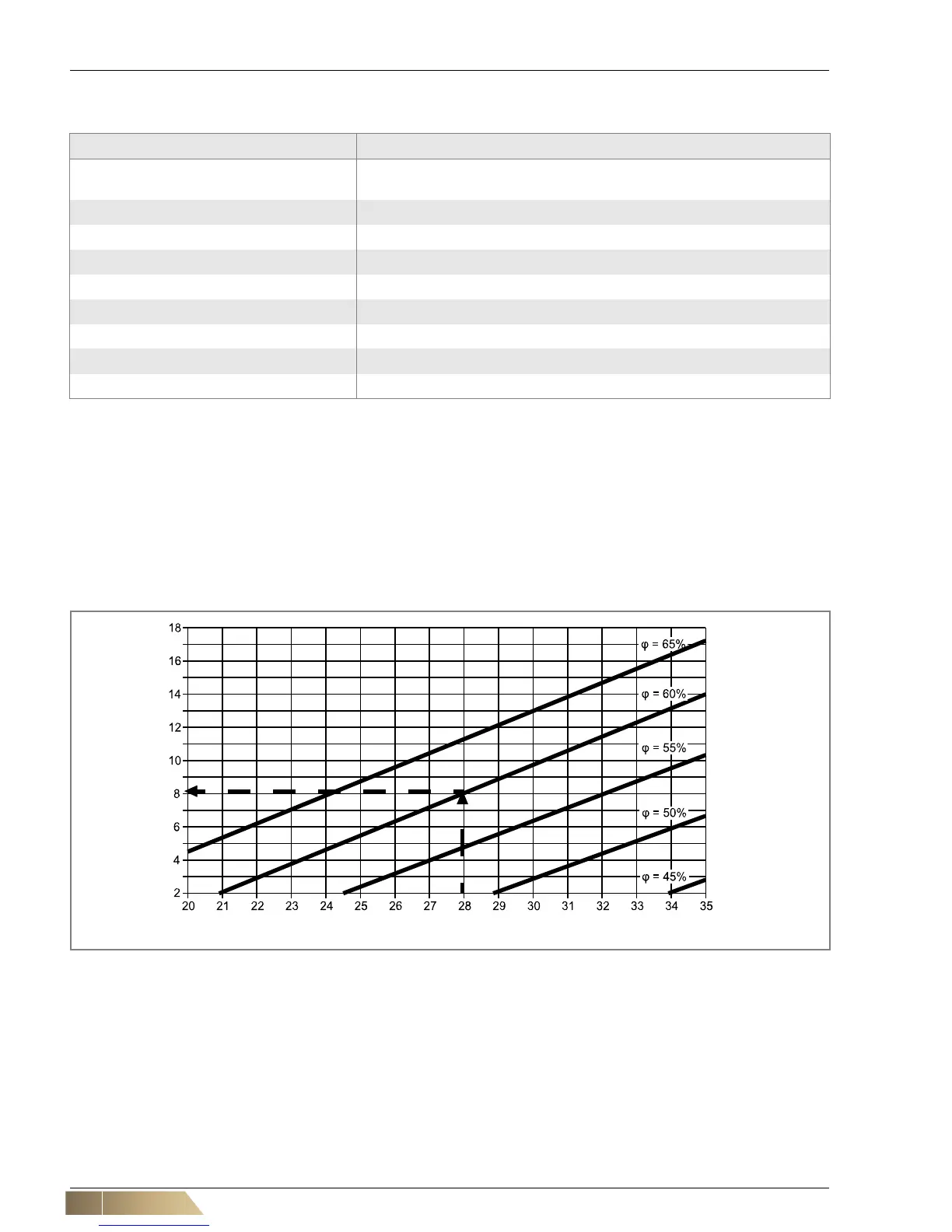

Fig. 2-2: Minimum allowed water inlet temperature as a function of indoor air condition; air pressure = 1013 hPa; j = relative hu-
midity
