HyPower-Geko Technical Description
FläktGroup DC-2014-0022-GB 2018-05/R5 • Subject to modifications 15
2.4 Dimensions
2.4.1 Basic unit

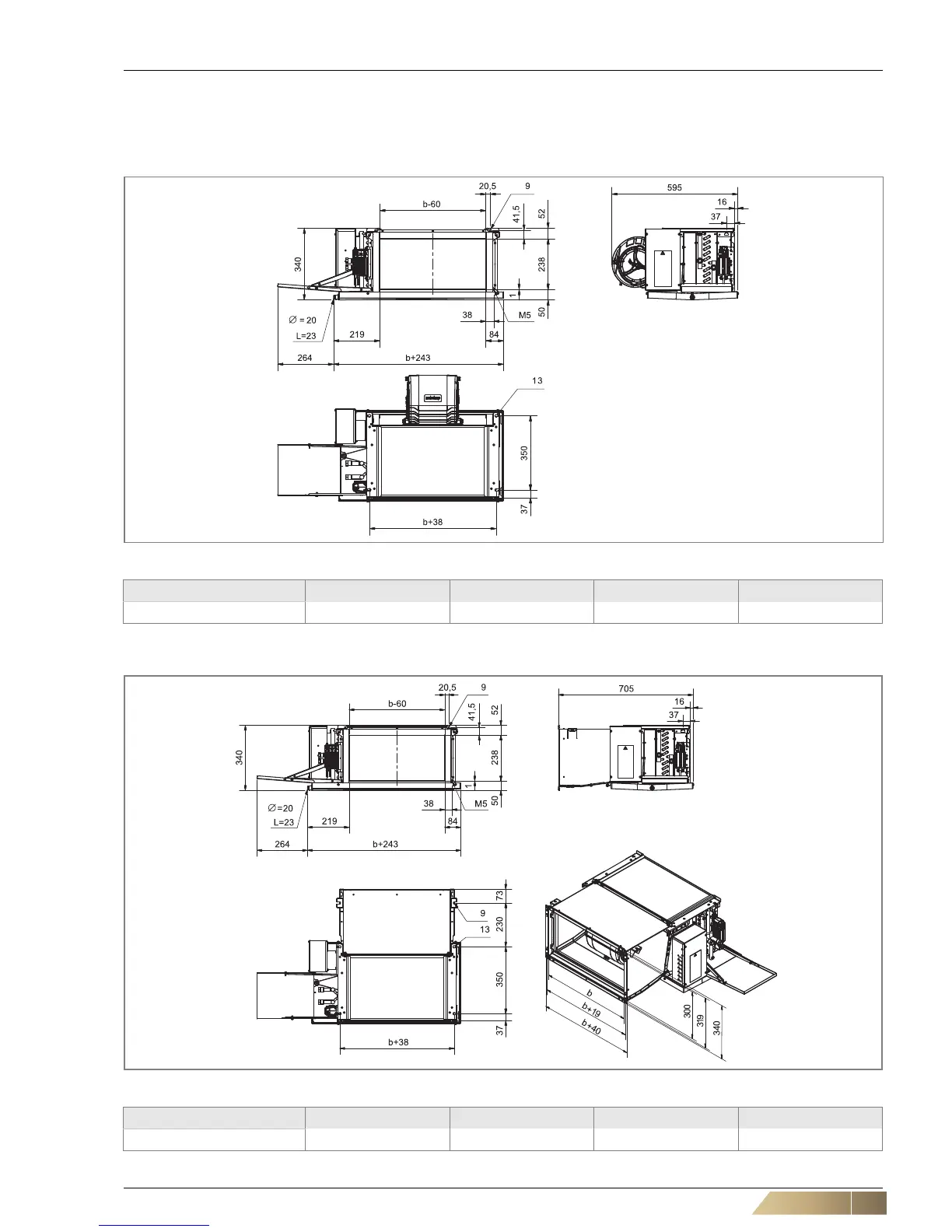

Fig. 2-3: Dimensions for unit type U without fan chamber (A) (not certified as of VDI 6022) - GH##.U###.###A0
Model size 1 2 3 4
b [mm] 560 865 1170 1590
Tab. 2-8: Width of basic unit, depending on unit size
Fig. 2-4: Dimensions for unit type U with fan chamber (B, C) - GH##.U###.###B(C)#
Model size 1 2 3 4
b [mm] 560 865 1170 1590
Tab. 2-9: Widths dependent on unit size
