Technical Description HyPower-Geko
16 FläktGroup DC-2014-0022-GB 2018-05/R5 • Subject to modifications
2.4.2 Air side accessories

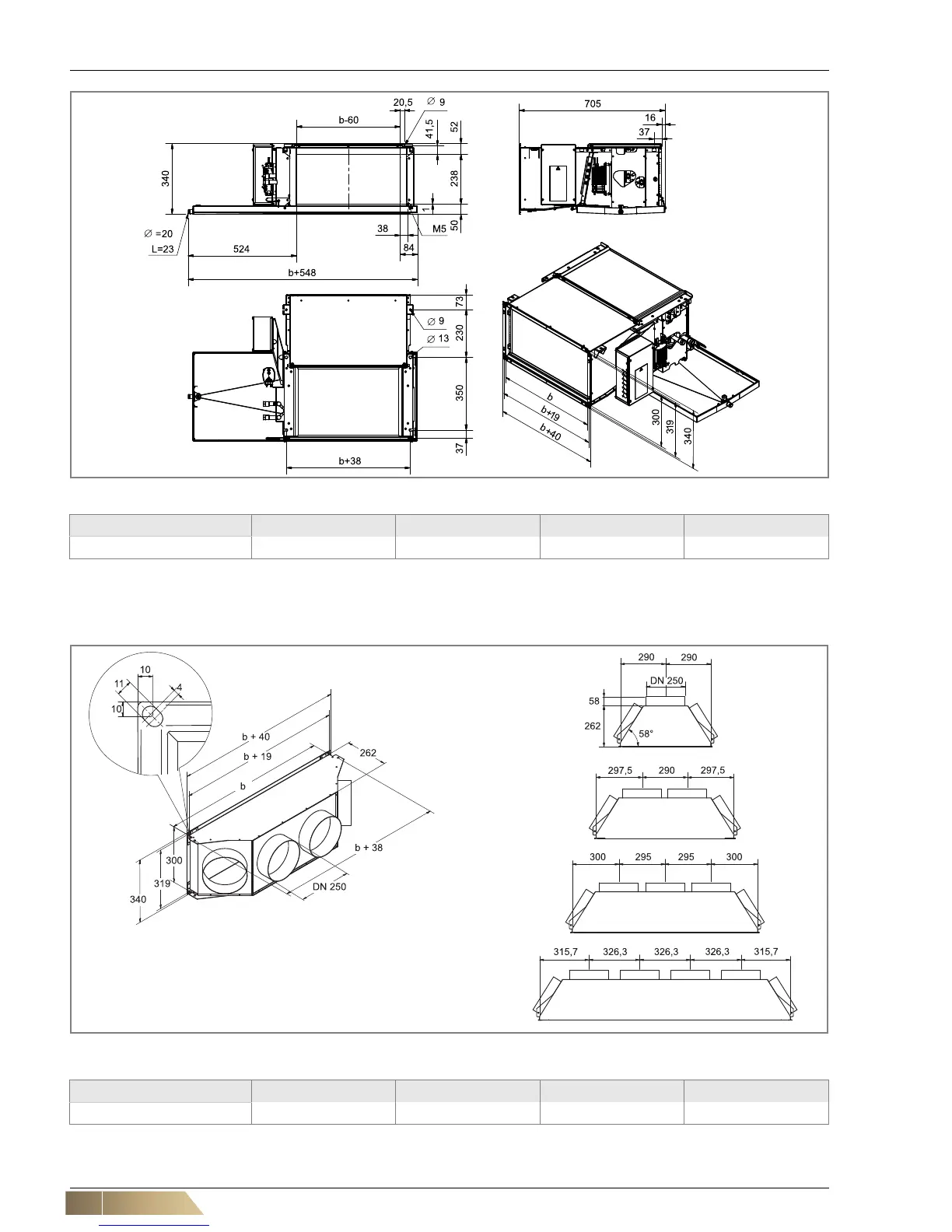

Fig. 2-5: Dimensions for unit type H with fan chamber (B, C) - GH##.H###.###B(C)#
Model size 1 2 3 4
b [mm] 560 865 1170 1590
Tab. 2-10: Widths dependent on unit size
Fig. 2-6: Dimensions of intake and discharge plenum(ZGH.#A031 / ZGH.#A042)
Model size 1 2 3 4
b [mm] 560 865 1170 1590
Tab. 2-11: Unit size dependent width of accessories
