HyPower-Geko Technical Description
FläktGroup DC-2014-0022-GB 2018-05/R5 • Subject to modifications 17

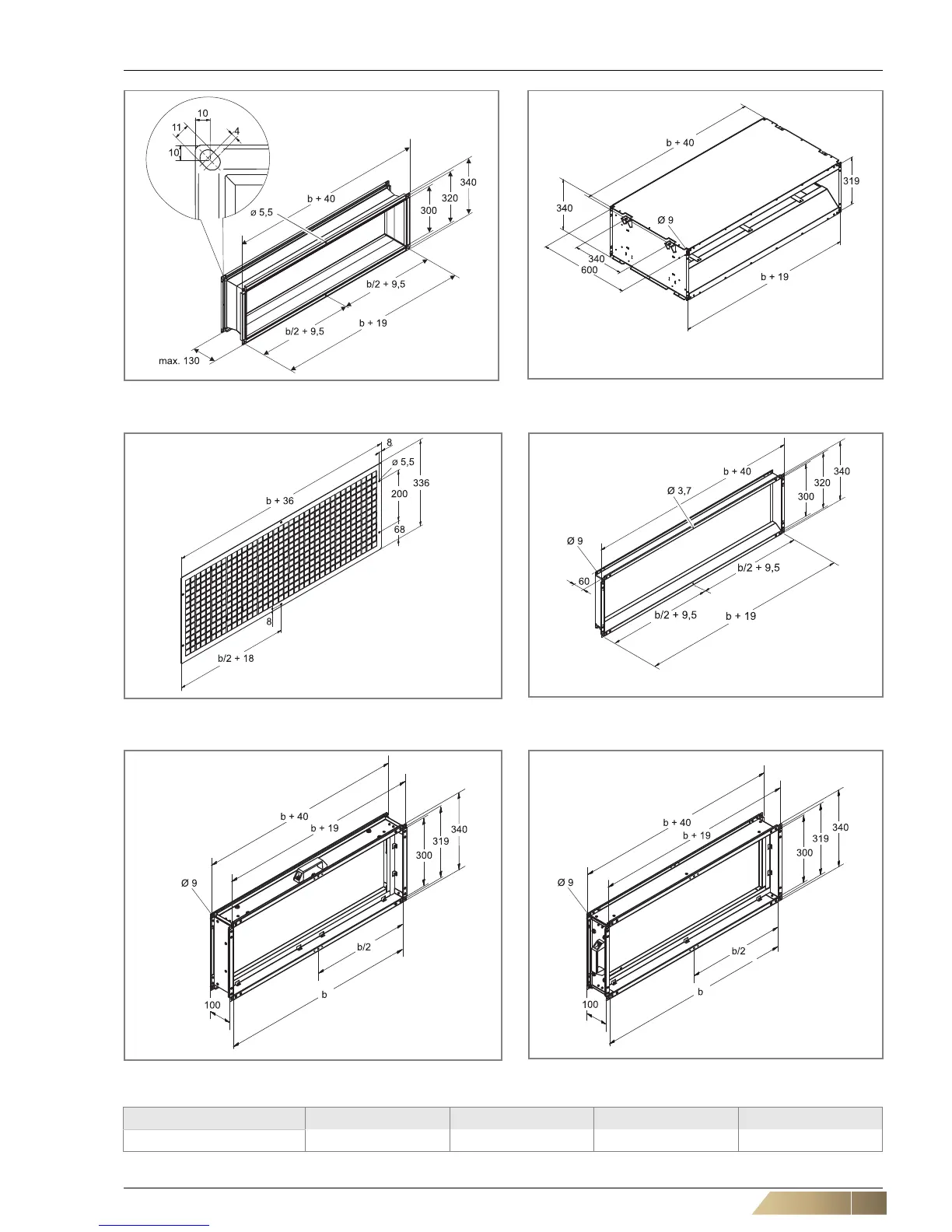

Fig. 2-7: Dimensions of intake and discharge plenum
(ZGH.#A111 / ZGH.#A112)
Fig. 2-10: Dimensions of air-intake and air-discharge sound
absorber fittings (ZGH.#A211 / ZGH.#A212)
Fig. 2-8: Dimensions air intake grille (intervention protection)
(ZGH.#A511)
Fig. 2-11: Dimensions of air discharge transition piece
(ZGH.#A912)
Fig. 2-9: Filter chamber, removal from top (ZGH.#A411) Fig. 2-12: Filter chamber, removal from side (ZGH.#A421)
Model size 1 2 3 4
b [mm] 560 865 1170 1590
Tab. 2-12: Unit size dependent width of accessories
