Mounting HyPower-Geko
28 FläktGroup DC-2014-0022-GB 2018-05/R5 • Subject to modifications
4.2.2 Unit type H (GH##.H###.#####)
In order to carry out all necessary service and maintenance work on the basic unit it is
recommended that a service opening with minimum dimensions of B x 1150 mm (B
x
1040 mm)* is provided (see
fig. 4-2 )
Pos. 1: Condensate tray - large - unit type H
Pos. 2: Service panel
Pos. 3: Filter behind cover strip
Pos. 4: Discharge transition piece (ZGH.#A912)

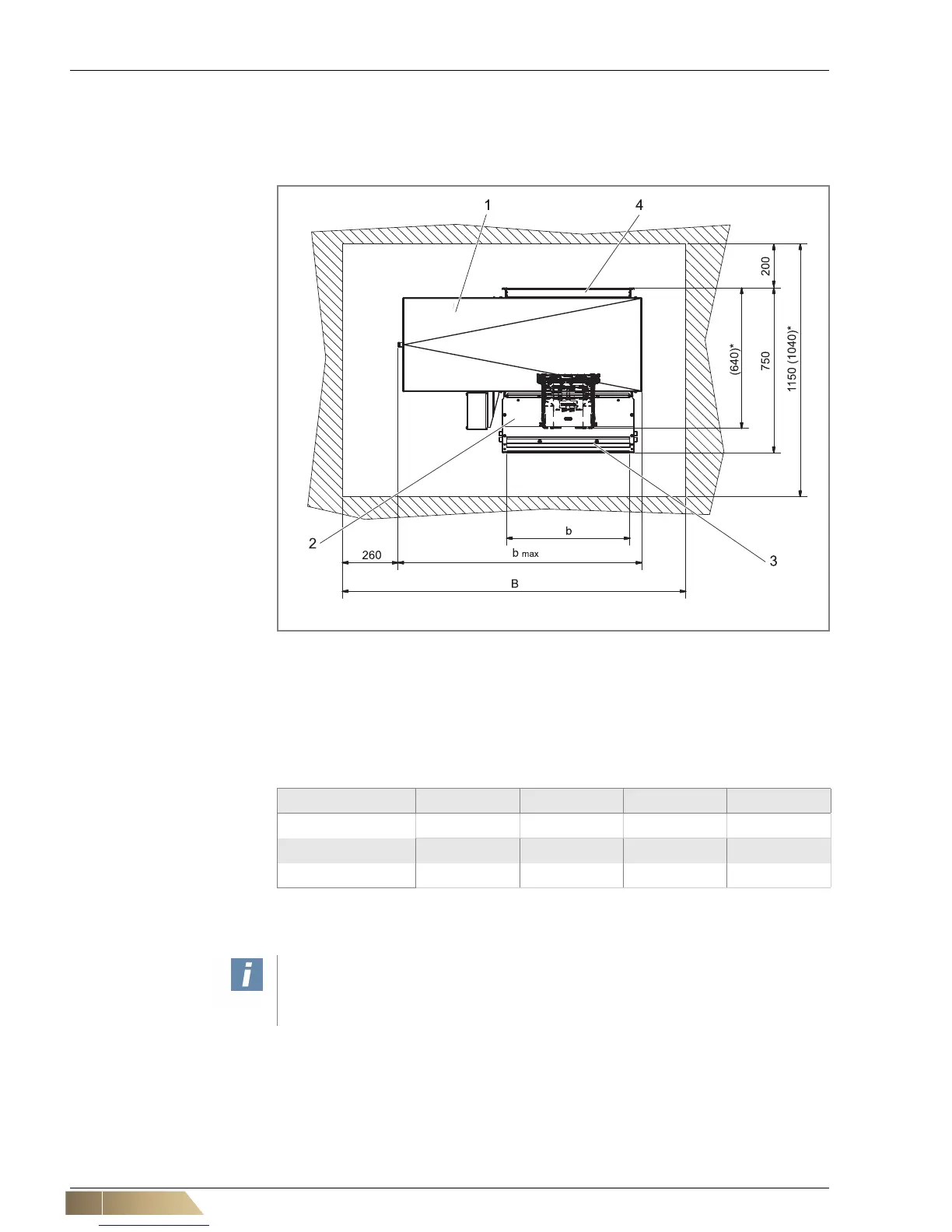

Fig. 4-2: Service opening - unit type H (GH##.H###.#####)
*) Dimensions in brackets apply to units without fan chamber
Model size 1 2 3 4
b [mm] 560 865 1170 1590
b
max
[mm] 1110 (805)** 1415 (1110)** 1720 (1415)** 2140 (1835)**
B [mm] 1560 (1265)** 1860 (1570)** 2160 (1875)** 2590 (2295)**
Tab. 4-2: Size of unit type H (GH##.U###.#####) and service opening
**) Dimensions in brackets also apply for units with function "only heating"
User instructions!
Please consider that further or larger openings may be needed, if accessories are
mounted.
