HyPower-Geko Mounting
FläktGroup DC-2014-0022-GB 2018-05/R5 • Subject to modifications 39
4.4.8 Mounting filter chamber with top/side removal (ZGH.#A411 / ZGH.#A421)
•
Stick the insulate tape to the connection edges
.
• For installation of filter chamber on unit (ZGH.#A411 – with top removal,
ZGH.#A421 – with side removal, symbol # designates unit size) use 4 screws M8
and nuts and washers (Pos. 1).
•
Insert filter in chamber.
Notice!
The filter chambers with top/side removal (ZGH.#A411 / ZGH.#A4212) are supplied
with a separately enclosed insulation tape. This tape is used as a sealing between
the connection of the filter chamber and the fan chamber of unit.
Notice!
Before the installation remove the filter from the fan chamber. After the installation
of the filter chamber (ZGH.#A411 / ZGH.#A4212) insert the filter in this chamber.

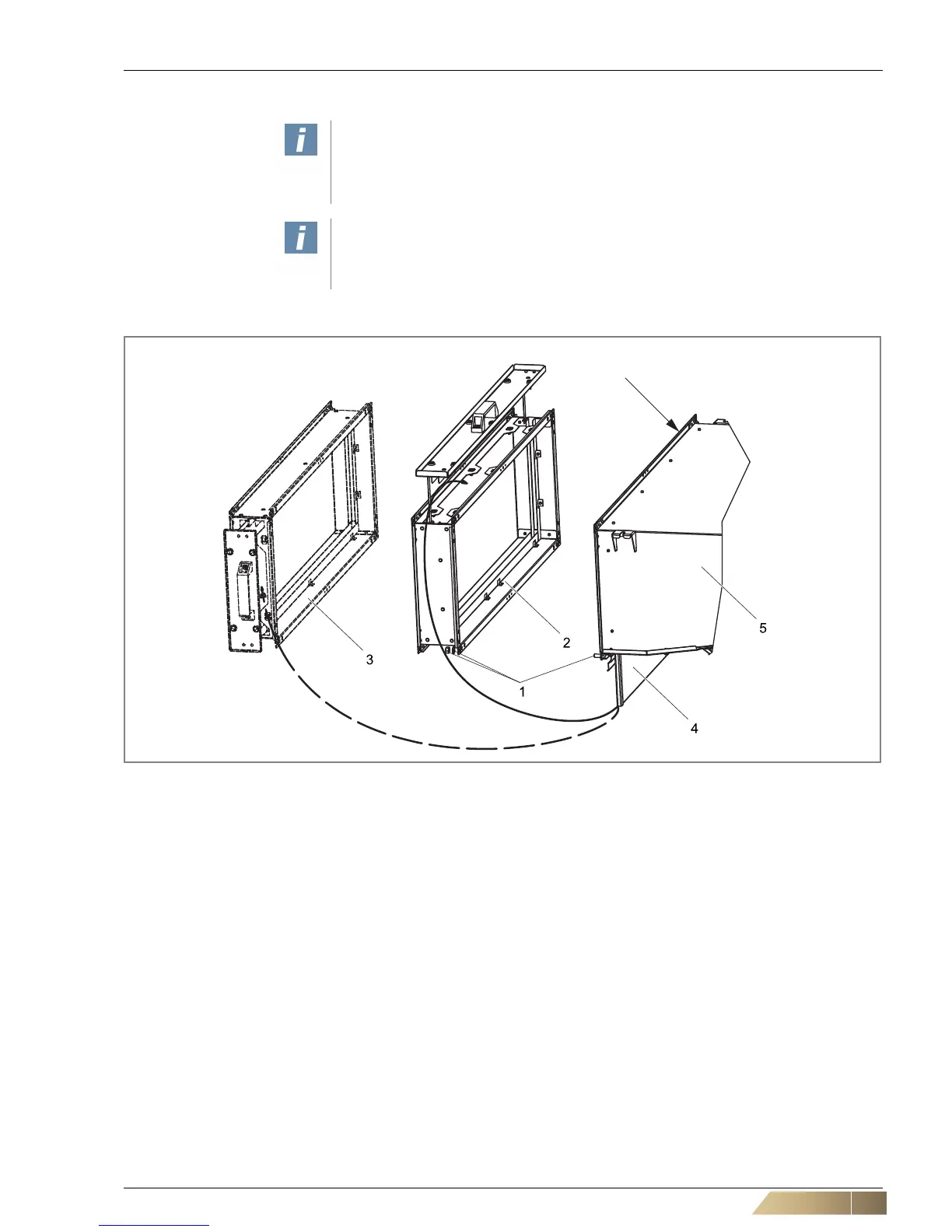

Fig. 4-16: Installation of filter chamber with top / side removal (ZGH.#A411 / ZGH.#A421)
Pos. 1: Screw M8x25, washer, nut (4 pc.)
Pos. 2: Filter chamber, removal from top (ZGH.#A411)
Pos. 3: Filter chamber, removal from side (ZGH.#A421)
Pos. 4: Filter
Pos. 5: Unit with fan chamber
B (C) (GH##.####.###B(C)#
)
