Hydraulic Connection HyPower-Geko
42 FläktGroup DC-2014-0022-GB 2018-05/R5 • Subject to modifications
With a 2-way valve, control is carried out by throttling the medium supply (see fig. 5-2).
Valves with thermoelectric actuator
On/off operation (open/close) is possible with these valves. If 3-way valves are fitted
by the manufacturer, control is performed via a distributor circuit (refer to
fig. 5-3).
With a 2-way valve, control is carried out by throttling the medium supply (see fig. 5-4).
Shut-off valve
The shut-off valve is used to limit or shut off the medium flow (refer to fig. 5-5).

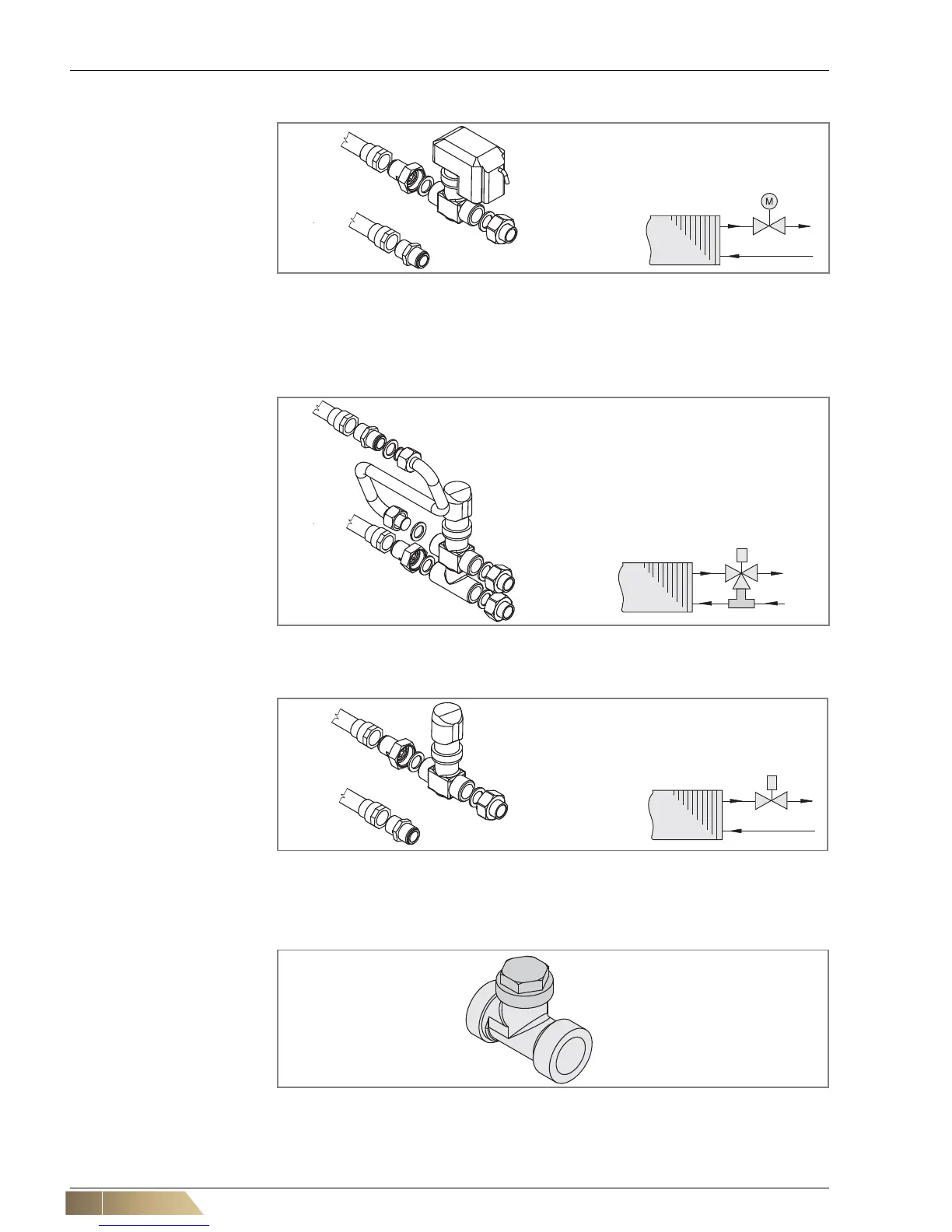

Fig. 5-2: Motor actuated 2-way valve
Fig. 5-3: 3-way valves with thermoelectric actuator
Fig. 5-4: 2-way valves with thermoelectric actuator
Fig. 5-5: Shut-off valve
