HyPower-Geko Hydraulic Connection
FläktGroup DC-2014-0022-GB 2018-05/R5 • Subject to modifications 47
5.4.2 Medium connection in a 2-pipe system
2-way valve
Pos. 1: Supply line
Pos. 2: Valve actuator motor
Pos. 3: Shut-off valve/ball valve (optional)
Pos. 4: Return line

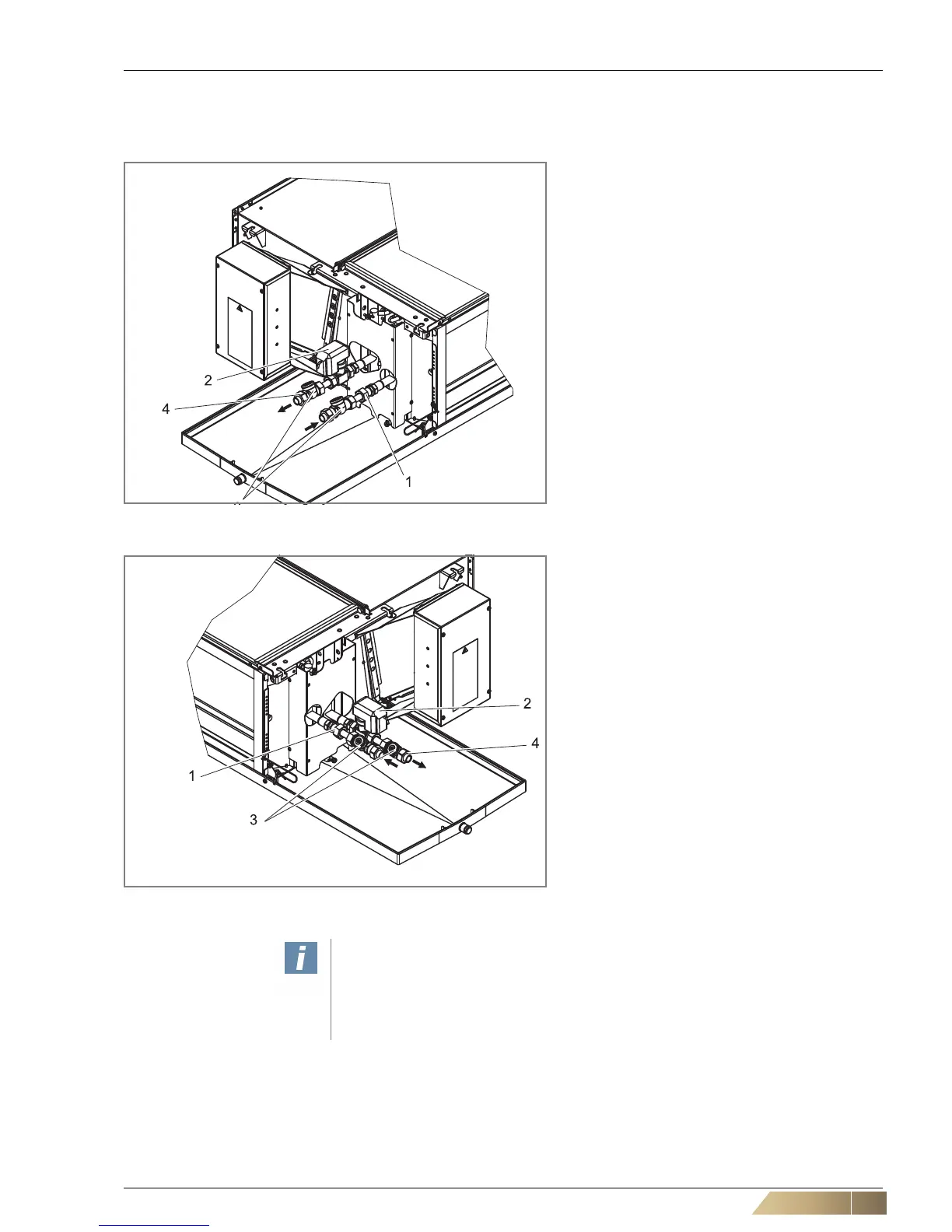

Fig. 5-11: Piping connections of 2-pipe system, 2-way valve, left connection
Pos. 1: Supply line
Pos. 2: Valve actuator motor
Pos. 3: Shut-off valve/ball valve (optional)
Pos. 4: Return line
Fig. 5-12: Piping connections of 2-pipe system, 2-way valve, right connection
User instructions!
The valve accessories are always delivered separately and must be installed on-site
to the basic unit.
The ball valves can be fitted at the water inlet or return line, the shut-off valve must
always be fitted at the return line!
