HyPower-Geko Hydraulic Connection
FläktGroup DC-2014-0022-GB 2018-05/R5 • Subject to modifications 53
NOTICE!
When laying out the pressure hose, ensure that it is not bent or folded.
Insulate the hose against all surfaces with which it could come into contact to
prevent the transmission of structure-borne noise.
Actual discharge volume of condensate pump in [l/h]
Vertical discharge head Horizontal discharge head [m]
5 10 20 30
0 14.0 13.9 13.5 12.5
1 13.3 13.3 13.2 13.0
2 13.2 13.3 13.2 13.0
3 13.1 13.1 13.0 13.0
4 13.0 13.0 12.9 12.8
5 12.4 12.3 12.2 12.0
6 11.5 11.0 10.8 10.4
7 10.3 9.9 9.4 8.5
Tab. 5-4: Actual discharge volume of the condensate pump depending on the horizontal and
vertical discharge distance

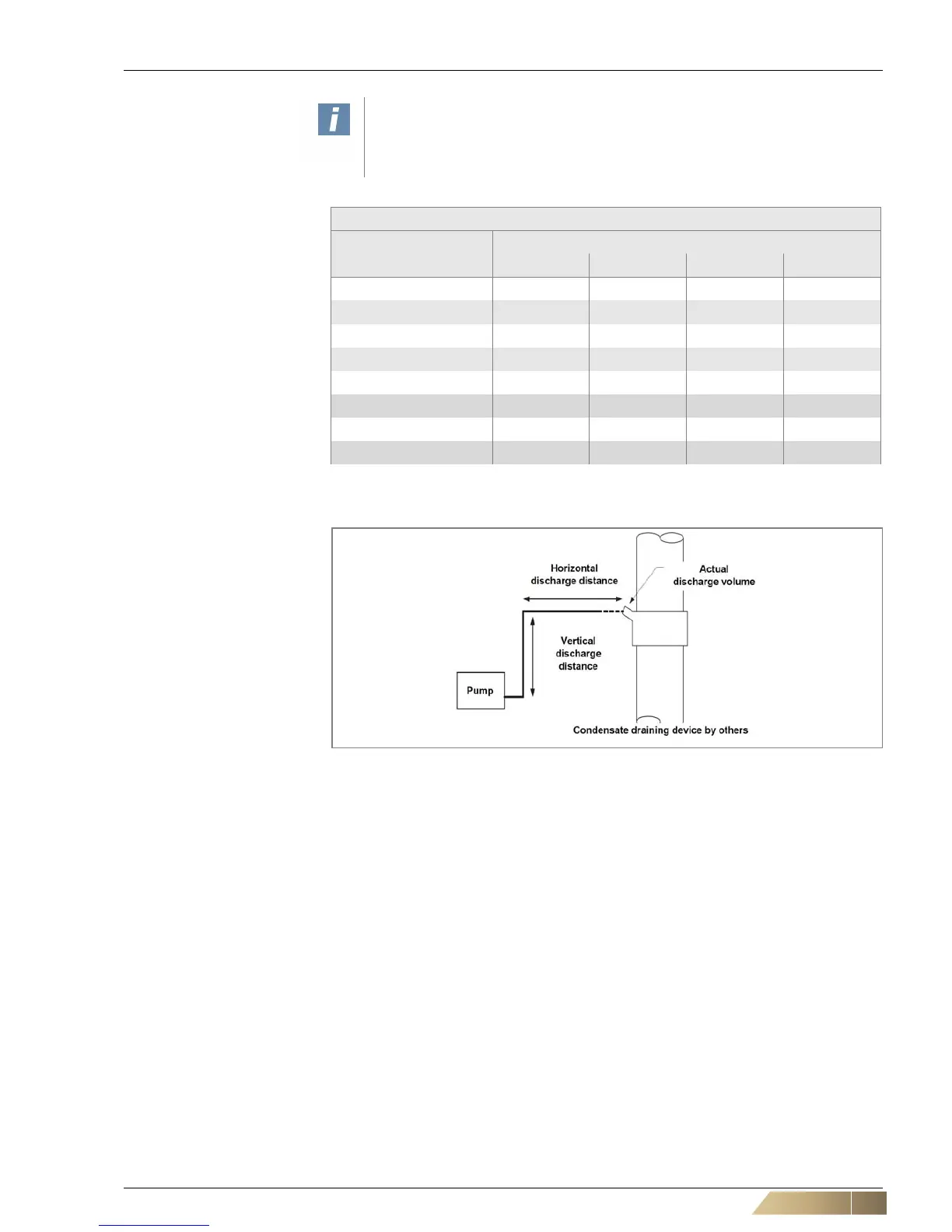

Fig. 5-22: Horizontal and vertical discharge heads
