6.12.3 Operating mode Heating or Cooling (2-pipe system)
***) Signal contact condensate pump fault (for wiring on further units, refer to wiring diagram chapter 6.12).
****) In case of a condensate pump fault, the switch is automatically disconnected from the power supply.

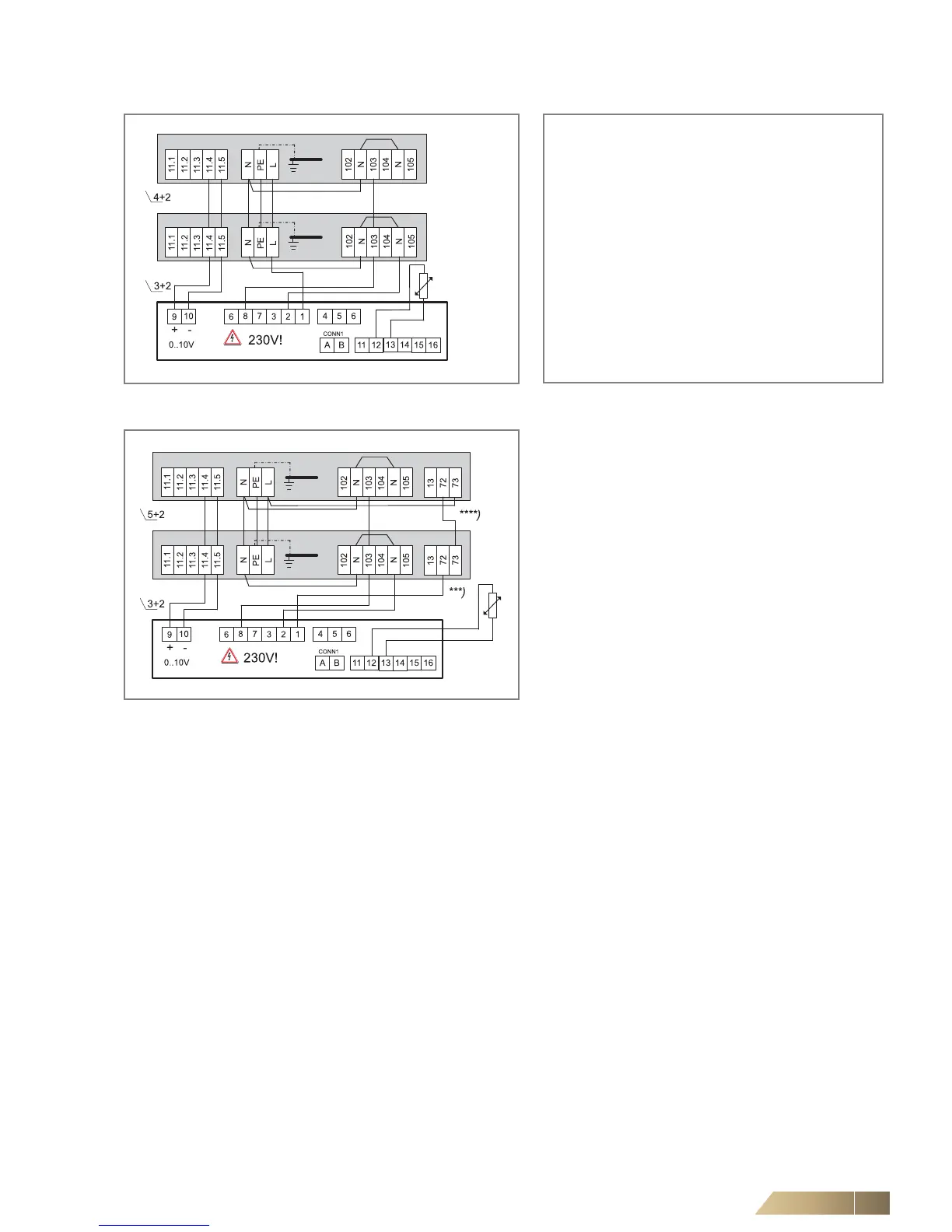

Fig. 6-79: Fan and valve control
(unit with terminal strip)
Configuration
Fig. 6-80: Fan and valve control
(unit with terminal strip and condensate pump)
Parameter 3: SEL0 = 14 and SEL2 = auto
(2-pipe system)
Parameter 4: SEL0 = 16 and SEL2 = OFF
(fan On/Off)
Parameter 5: SEL0 = 18 and SEL2 = auto
Parameter 7: SEL0 = 22 and SEL2 = auto
Parameter 8: SEL0 = 24 and SEL2 = auto
(switch-over heating/cooling)
Parameter 9: SEL0 = 26 and SEL2 = auto
(centrally or via sensor)
