6.6.9 P-Version Variances
For the WaterCool Module of the P-Version, there is an internal connection between
this Module and the main unit, the connection should be performed by the supplied
flexible hoses.
The first flexible hose is connected to the outlet of the pump, and the other end should
be connected to the main unit inlet. The second flexible hose is connected to the
header’s port of the condenser, and the other end should be connected to the main unit
outlet. See Fig. 6-16.

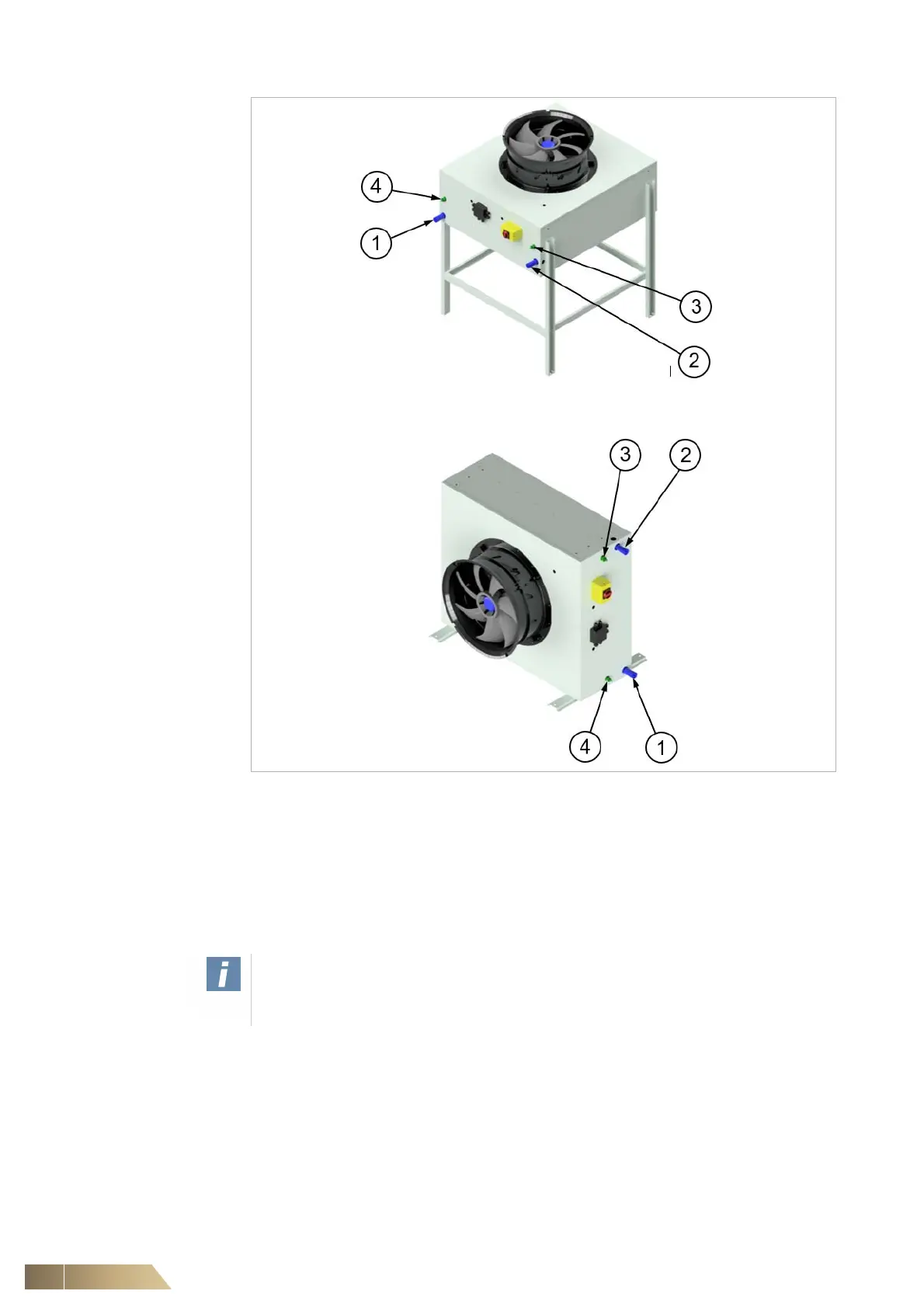

A =FreeCool Coil 1: FreeCool OUT 3: Direct Expansion IN
B =Direct Expansion Coil 2: FreeCool IN 4: Direct Expansion OUT
NOTE!
Ensure that the outdoor unit is installed within the separation limits as specified in
chapter 5.6.2
