Multi-DENCO Medium Connections
FläktGroup DC-2013-0101-GB • Subject to modifications • R5-08/2020 85
For the size 065 of the P-Version; there is only one hose that is on the header’s port,
the pump outlet can be connected directly to the main unit inlet by the flanges that are
fixed on the both units, if the pipes are in misalignment, unfasten the bolts of the pump
and the expansion vessel and move them a little bit on the slots that are on the pump

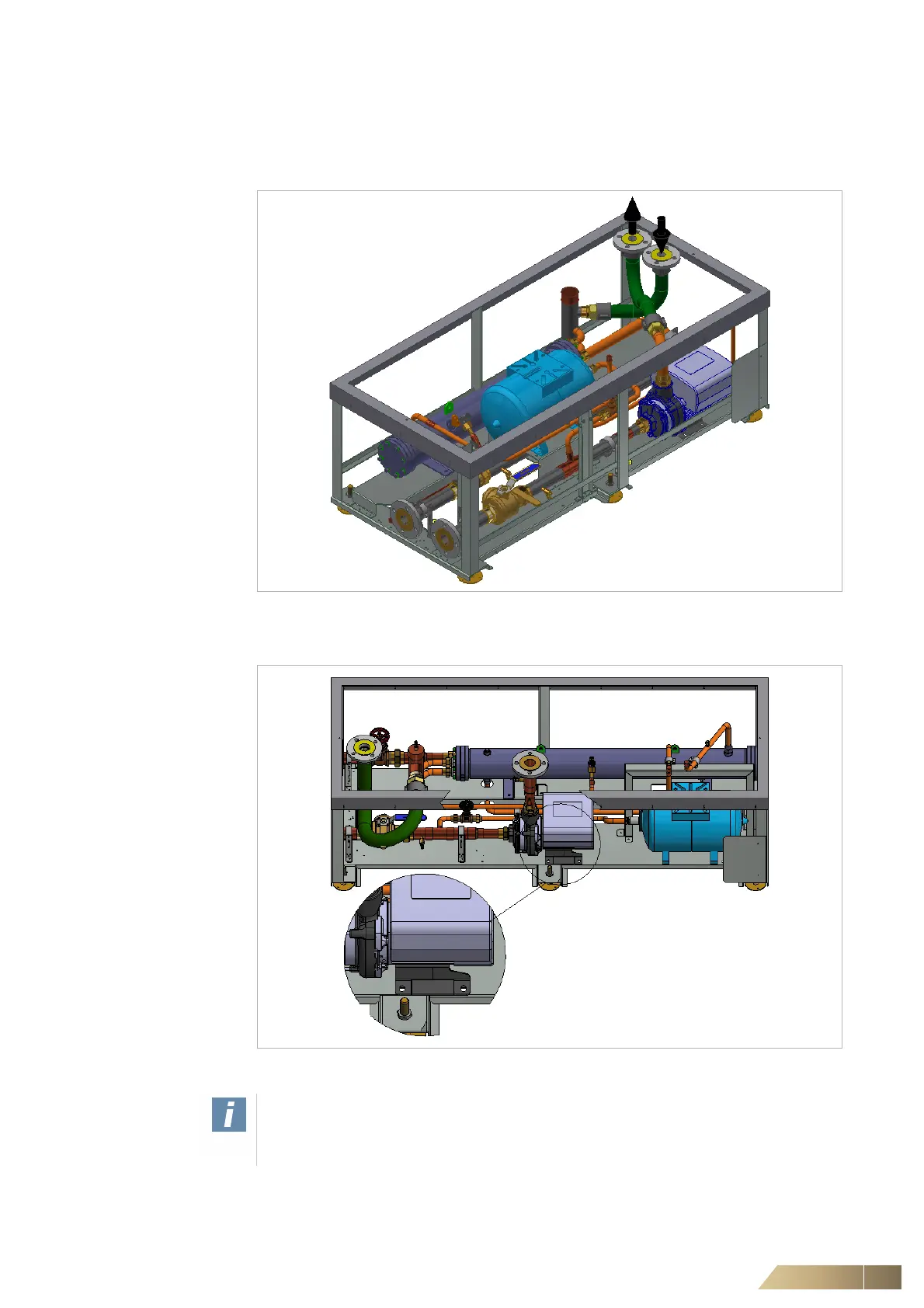

base to match the correct position of the main unit pipe. See Fig. 6-17.
Fig. 6-16
Fig. 6-17
NOTE!
Refer to the inlet/outlet of the main unit by the “Big Arrow” stickers that are on the
pipes
