Sound beam plane
The plane containing one, two or more sound paths or beams (see Fig. 3.10).
3.3.2 Examples

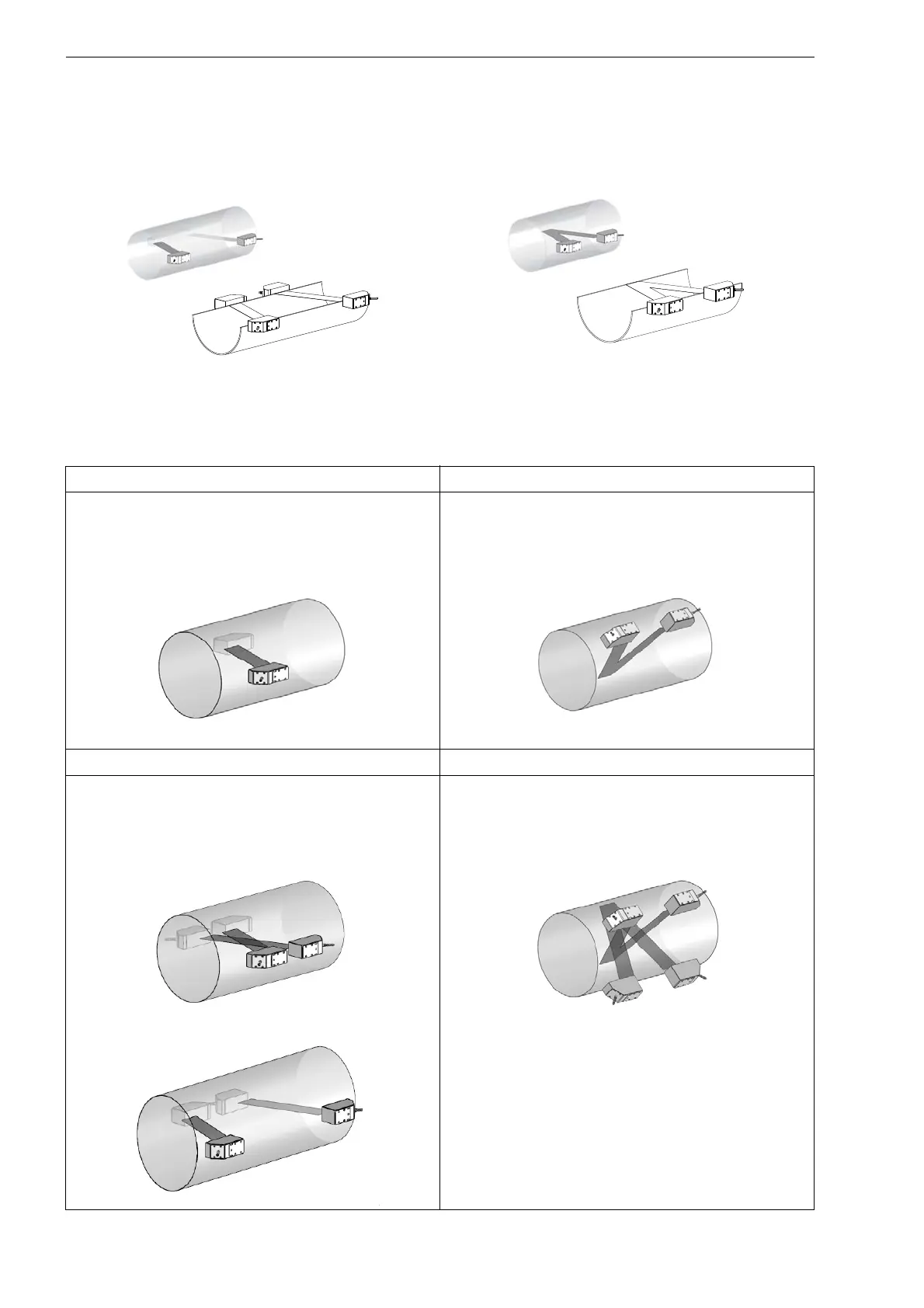

Fig. 3.10: Sound paths and beams in one plane
Diagonal arrangement with 1 beam Reflection arrangement with 1 beam
1 transducer pair
1 sound path
1 beam
1 plane
1 transducer pair
2 sound paths
1 beam
1 plane
Diagonal arrangement with 2 beams Reflection arrangement with 2 beams and 2 planes
2 transducer pairs
2 sound path
2 beams
1 plane
2 transducer pairs
4 sound paths
2 beams
2 planes
2 beams
in 1 plane
2 sound paths
in 1 plane
X arrangement
displaced
X arrangement
