FLUXUS F70x 7 Connection
68 UMFLUXUS_F7V4-6-2EN, 2017-10-01
7.2 Temperature Probe
Temperature probes Pt100/Pt1000 (4-wire) can be connected to the inputs of the transmitter (optional).
For the direct connection of the temperature probe, see section 7.2.1 and Tab. 7.12.
For the connection with an extension cable, see section 7.2.2 and Tab. 7.12.
For the connection with a junction box, see section 7.2.3 and Tab. 7.12.
Tab. 7.11: Terminal assignment (extension cable, KL2)
terminal connection
TV white or marked cable (core)
TVS white or marked cable (internal shield)
TRS brown cable (internal shield)
TR brown cable (core)

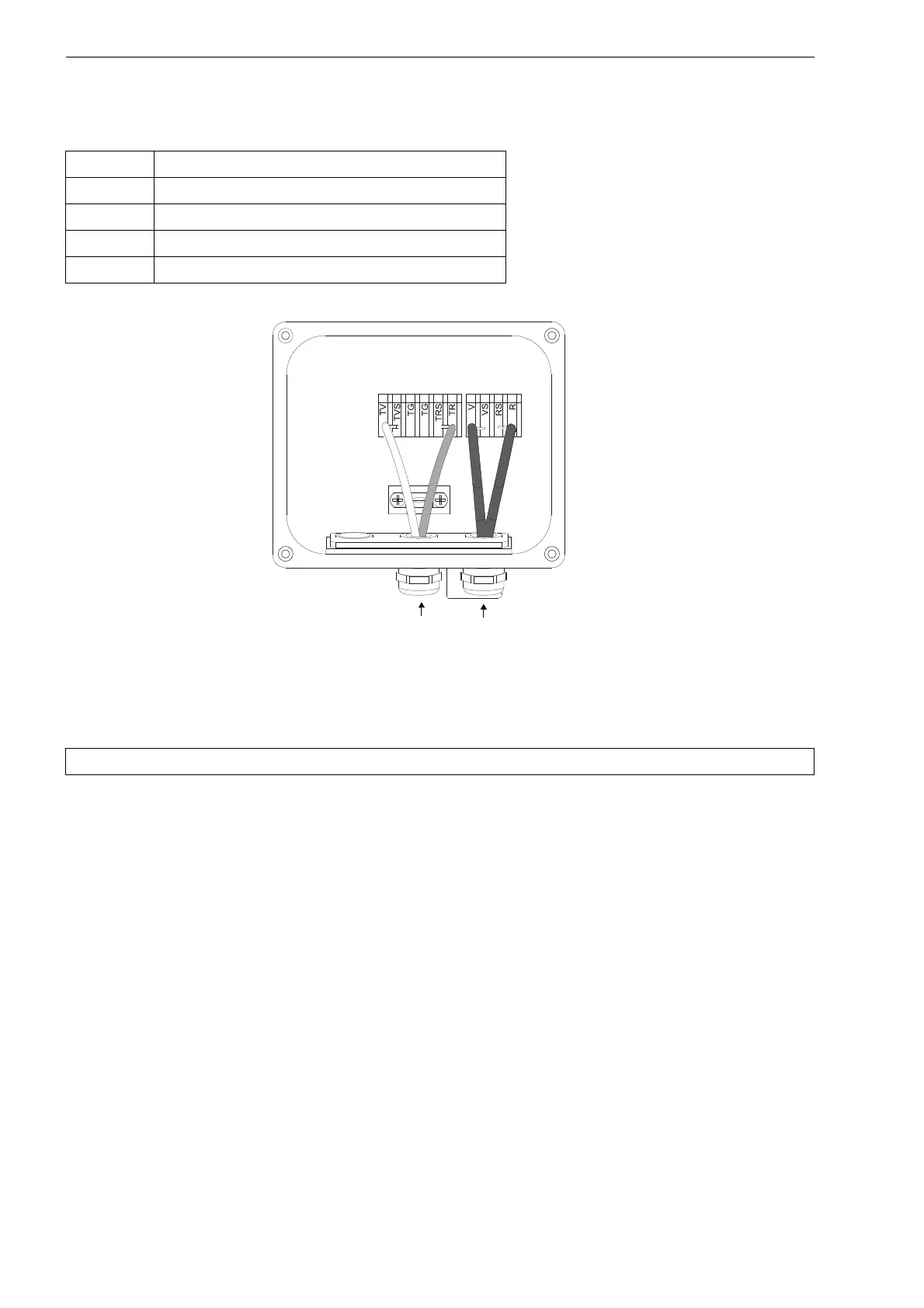

Fig. 7.24: Connection of the extension cable and the transducer cable
to the junction box JBxx (example with JB01)
Attention! Observe the "Safety Instructions for the Use in Explosive Atmosphere" (see document SIFLUXUS).
extension cable
transducer cable
