Flexim FLUXUS F705**-NN Series User Manual

6 Installation FLUXUS F70x
UMFLUXUS_F7V4-6-2EN, 2017-10-01 33
6.4.3.1 Disassembly of Variofix L
• Disassemble the transducer mounting fixture Variofix L (see Fig. 6.13).
6.4.3.2 Fixing the Clasps to the Tension Straps
Select the installation instructions that correspond to the supplied clasp:
Band clamp clasp
The clasp is fixed to the tension strap (see Fig. 6.14).
Quick release clasp
The clasp is fixed to the tension strap (see Fig. 6.15).
• Cut the tension straps to length (pipe circumference + at least 120 mm).
Ratchet clasp
• Cut the tension strap to length (pipe circumference + at least 120 mm).
• Insert approx. 100 mm of the tension strap into parts 1 and 2 of the clasp (see Fig. 6.16 a).
• Bend the tension strap.
• Insert the tension strap into part (1) of the ratchet clasp (see Fig. 6.16 b).
• Tighten the tension strap.
• Repeat the steps for the second tension strap.

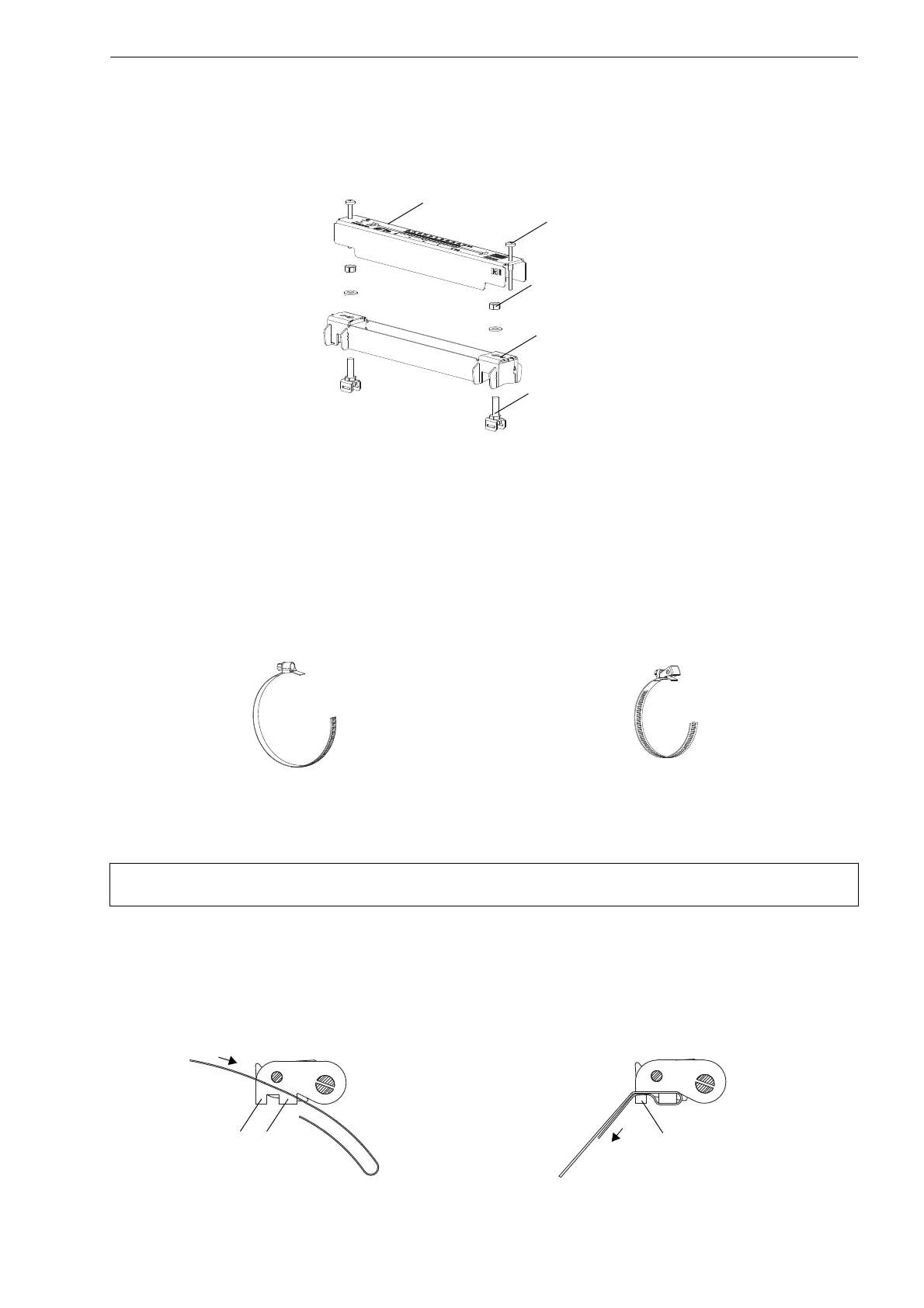

Fig. 6.13: Disassembly of Variofix L
Fig. 6.14: Band clamp clasp with tension strap Fig. 6.15: Quick release clasp with tension strap
Attention! The edge of the tension strap is very sharp, leading to risk of injury. Remove the burr of the sharp
edge.
a b
Fig. 6.16: Ratchet clasp with tension strap
cover
rail
tension strap clamp
nut
screw
1 2
1
