6 Installation FLUXUS F70x
UMFLUXUS_F7V4-6-2EN, 2017-10-01 35
Ratchet clasp
• Insert the tension strap into the tension strap clamp and the metal spring (see Fig. 6.22). It is not necessary to mount the
metal spring:
– on steel pipes
– on pipes with an outer pipe diameter < 80 mm or
– on pipes that are not subjected to significant temperature fluctuations
• Position the clasp, the metal spring (if necessary) and the tension strap clamp on the pipe (see Fig. 6.17).
– On a horizontal pipe, mount the tension strap clamp on the side of the pipe, if possible.
– Mount the metal spring on the opposite side of the tension strap clamp (if necessary).
• Place the tension strap around the pipe and insert it into part 3 of the clasp (see Fig. 6.23).
• Tighten the tension strap.
• Cut off the protruding tension strap (see Fig. 6.24).
• Tighten the screw of the clasp.
Attention! The edge of the tension strap is very sharp, leading to risk of injury. Remove the burr of the sharp
edge.

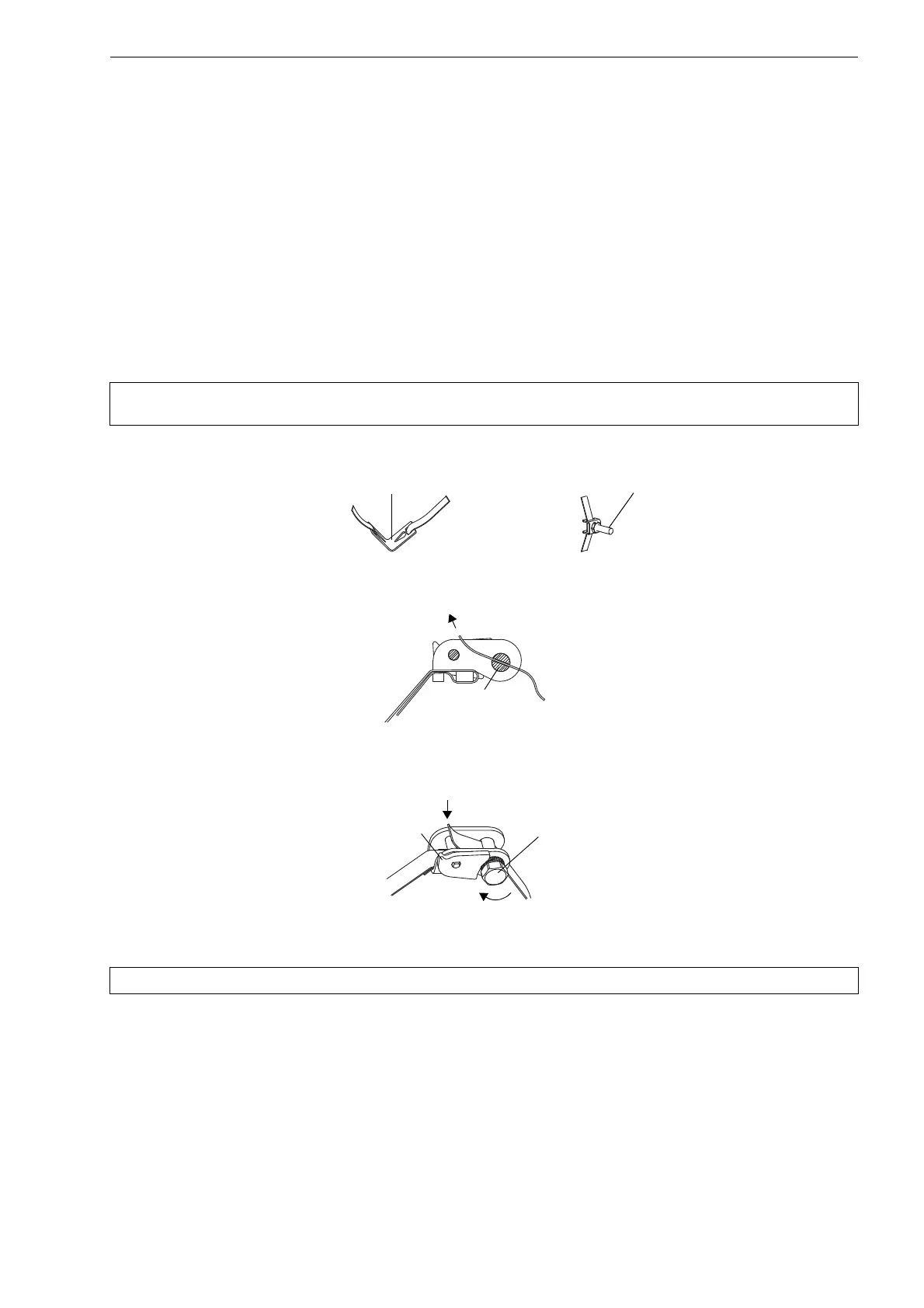

Fig. 6.22: Tension strap with the metal spring and the tension strap clamp
Fig. 6.23: Ratchet clasp with tension strap
Fig. 6.24: Ratchet clasp with tension strap
Attention! To release the screw and the tension strap press the lever down (see Fig. 6.24).
lever
sense of rotation
cut
screw of the clasp
