7 Connection
FLUXUS G809 7.1 Transducers
69
UMFLUXUS_G809V2-2EN, 2020-06-25
Tab. 7.6: Terminal assignment
terminal connection (extension cable)
TV white or marked cable (core)
TVS white or marked cable (internal shield)
TRS brown cable (internal shield)
TR brown cable (core)
cable gland external shield

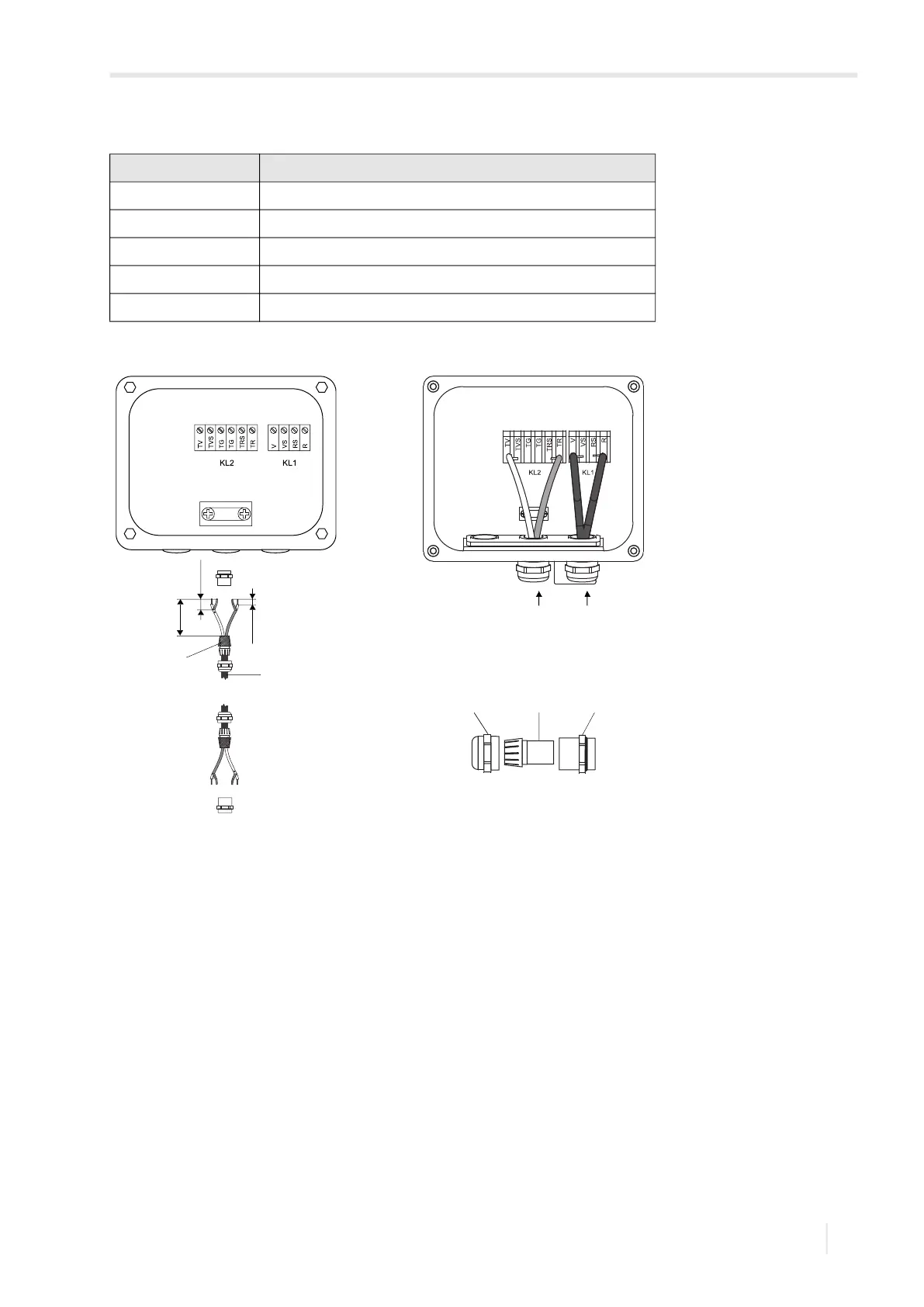

Fig. 7.8: Connection of the extension and transducer cable to the junction box
1 – extension cable
2 – external shield brushed back
3 – cap nut
4 – compression part
5 – basic part
6 – connection of the extension cable
7 – connection of the transducer cable
cable gland
3 4 5
100 mm
20 mm
10 mm
1
2
6 7
