FlexRadio Systems Flex-3000 User Manual

F R O N T C O N S O L E C H A P T E R 3
The VHF+ button will swap between the typical HF bands and any configured transverter bands (see
the description of the XVTRs Form on page 121). The VHF band buttons work in the same way, but for
the frequencies within the transverter frequency range.
(6) Mode Selection

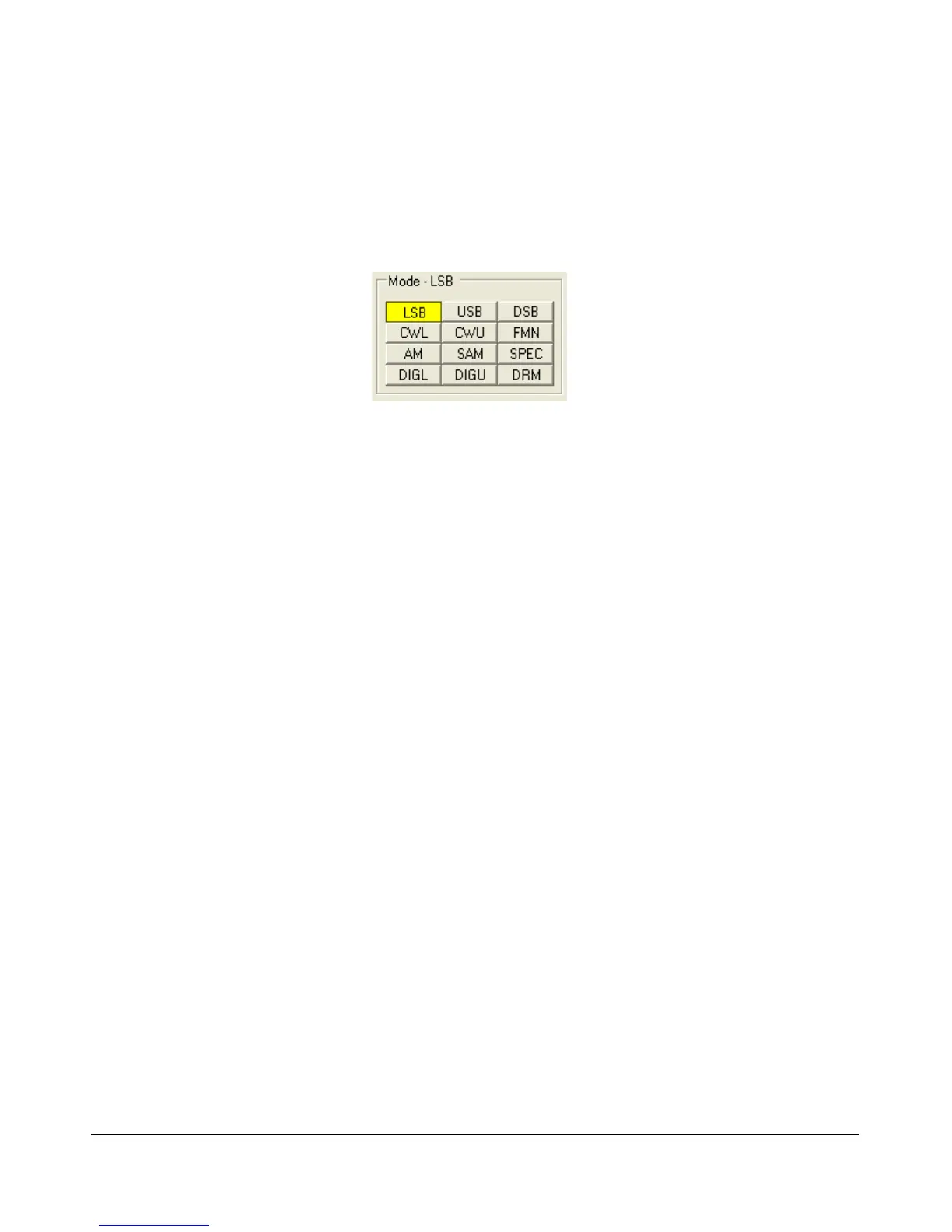

Figure 37: Mode Selection
The Mode Selection controls allow you to change the selected demodulation routine. Changing modes
will select the last frequency and filter used for that mode. Additionally, it will display the (configurable)
filter settings available for that mode (see Figure 39 below) and the appropriate mode specific controls
on the front console (see page 44). Following is a list of the available modes:
 LSB: Lower Side Band
 USB: Upper Side Band
 DSB: Double Side Band
 CWL: CW Lower Side Band
 CWU: CW Upper Side Band
 FMN: Frequency Modulation (FM) Narrow
 AM: Amplitude Modulation
 SAM: Synchronous (PLL) Amplitude Modulation
 SPEC: Spectrum mode (DC IF, max bandwidth determined by the selected sampling rate)
 DIGL: Digital Lower Side Band (Enables VAC if VAC Auto Enable is engaged, see page 74)
 DIGU: Digital Upper Side Band (Enables VAC if VAC Auto Enable is engaged, see page 74)
 DRM: Digital Radio Mondiale (requires licensed external demodulator software not available
from FlexRadio Systems; Enables VAC if VAC Auto Enable is engaged, see page 74)
Hotkeys are available in the Setup-Form, Keyboard Tab to cycle through the various modes using the
keyboard (see page 104).
[The rest of this page has been left blank intentionally]
41  2003-2009 FlexRadio Systems
