OPERATION (continued)
USER CONFIGURATION MODE (continued)
Custom Volume Unit Label Menu (continued)

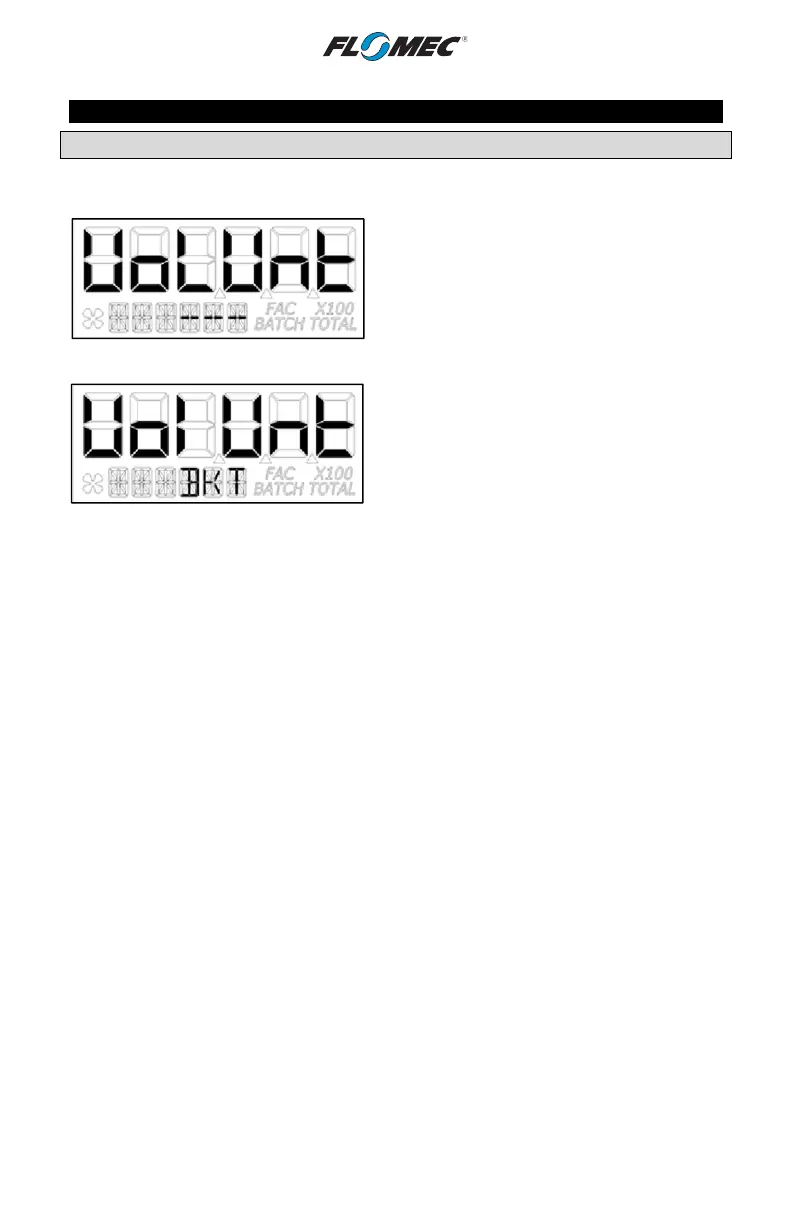

If the computer is new or has no previous custom volume unit label stored in memory, the
screen will appear with three dashes. (See Figure 20)
The left most of the dashes will be in focus and
the user can select a letter from the list of upper
case letters. An empty space will be shown on
the menu screen as an underscore “_”during
creation, but the underscore will not show when
displaying the unit label in operation.
Figure 20
If the user has previously entered a custom
volume unit label, it will be read from computer
memory and the unit label will be displayed (see
Figure 21) with the left most character in focus.
The label can then be changed if desired.
Figure 21
NOTE: Once the custom volume unit label is created, the user will be required to enter a
calibration method for the custom volume unit created. Therefore, upon advancing focus to
next menu, the user will be shunted to the calibration method menu to select a method of
calibrating their custom volume unit.
NOTE: The calibration method section that defines the methods of calibration can be found
later in this manual.
After selecting the calibration method, advance focus to the next menu that will be flow rate/
time period menu.
NOTE: The computer will remember your calibration method selection. If you selected field
calibration methods dispense display, percent adjust, or K-factor method, you will be given
the opportunity to configure that method at the point you decide to exit the user configuration
mode. At that point, the software will automatically shunt you to the field calibration method
entry menu.
The field calibration method entry section that defines the field calibration procedure of the
selected method can be found later in this manual.
NOTE: The factory calibration stored in the unit will never be lost.
