OPERATION (continued)
USER CONFIGURATION MODE
General Notes for User Configuration Mode Menus
1. The term “focus” as used in this manual indicates an active editable item. Focused items
will constantly flash ON/OFF.
2. Advance focus: Press the Total button. Advancing focus will move focus to the next
editable item to the right. If already on right most item, the focus will go back to the start
position in a round robin fashion. If only (1) item is editable, advancing focus will move
the focus to next menu.
3. Increment the value of editable item: Press the Rate button. If editing a number, the
number will increment in a round robin fashion. If editing a text option, focus will advance
thru a predefined list of text depending on the active menu and item. Advancing to the
next item or menu with a unit in focus will select that unit.
4. Advance focus to next menu: Press and hold the Total button and then press the Rate
button.
5. Retrogress focus back to previous editable item or previous menu: Press and hold
the Rate button and then press the Total button.
6. Exit any user configuration mode menu: Press and hold the Total button first and
immediately press and hold the Rate button, holding both buttons down for 3 seconds.
NOTE: Unless an exception is noted, there is a 90 second “no action” clock running when
in user configuration mode. After 90 seconds with no button push to reset the clock, the
computer will automatically exit and return to normal operating mode. There is no automatic
“save”, all entries made up to that point would be lost.
Entering User Configuration Mode
While in normal operation mode, the user can enter the display user configuration mode by
pressing and holding the Total and Rate buttons simultaneously for 3 seconds from any
screen; the software will display a three second count down sequence (see Figure 12-1),
then reset the display to configuration mode. (See Figure 12-2)

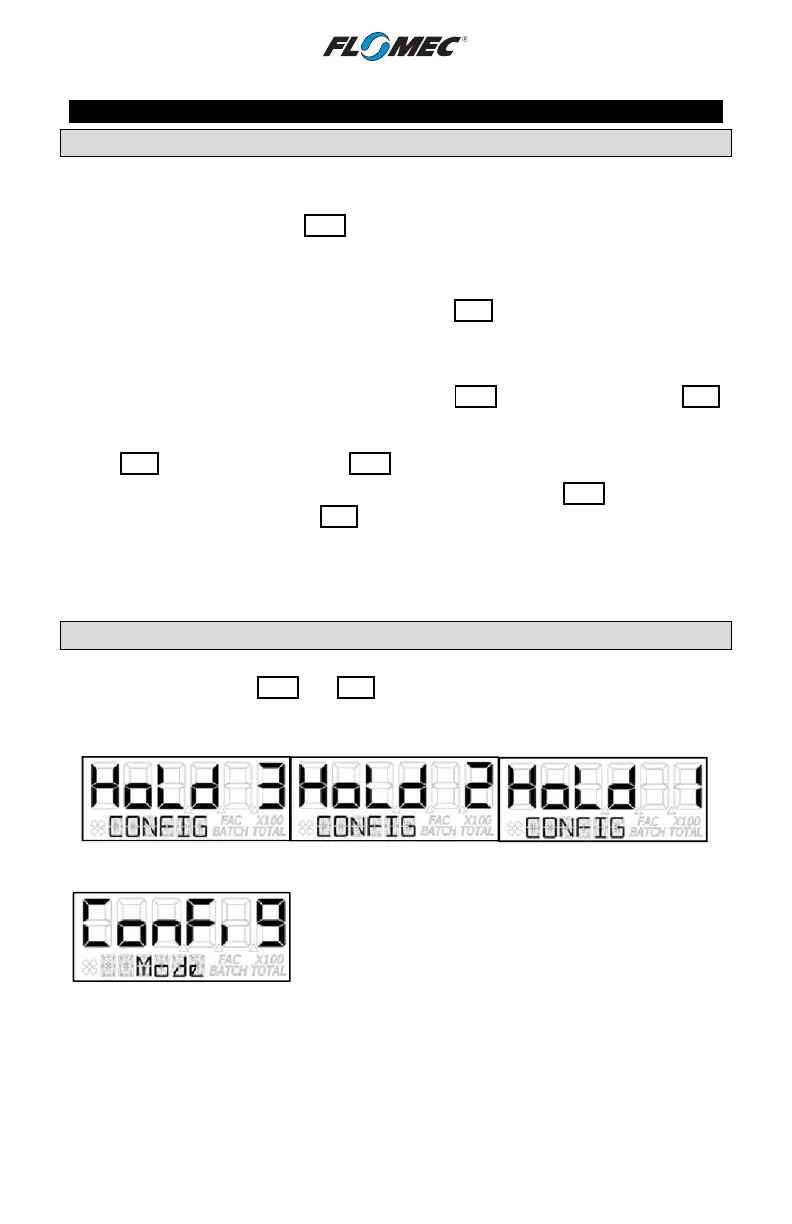

Figure 12-1
NOTE: After three seconds, the LCD will display “ConFig”
on the top row and “Mode” on the bottom row until the
user releases both of the buttons; the display will then
immediately show the first menu (PIN) of the configuration
process menus.
Figure 12-2
NOTE: If the user releases both or either button before the countdown completes, the display
will return to normal operation mode.
