Fluidwell F115-P User Manual

FW_F115-P_M_v2201-01_EN.docx
Page 30
Type OT
A passive transistor output is available with this option. Max. driving capacity 300mA@50V DC.

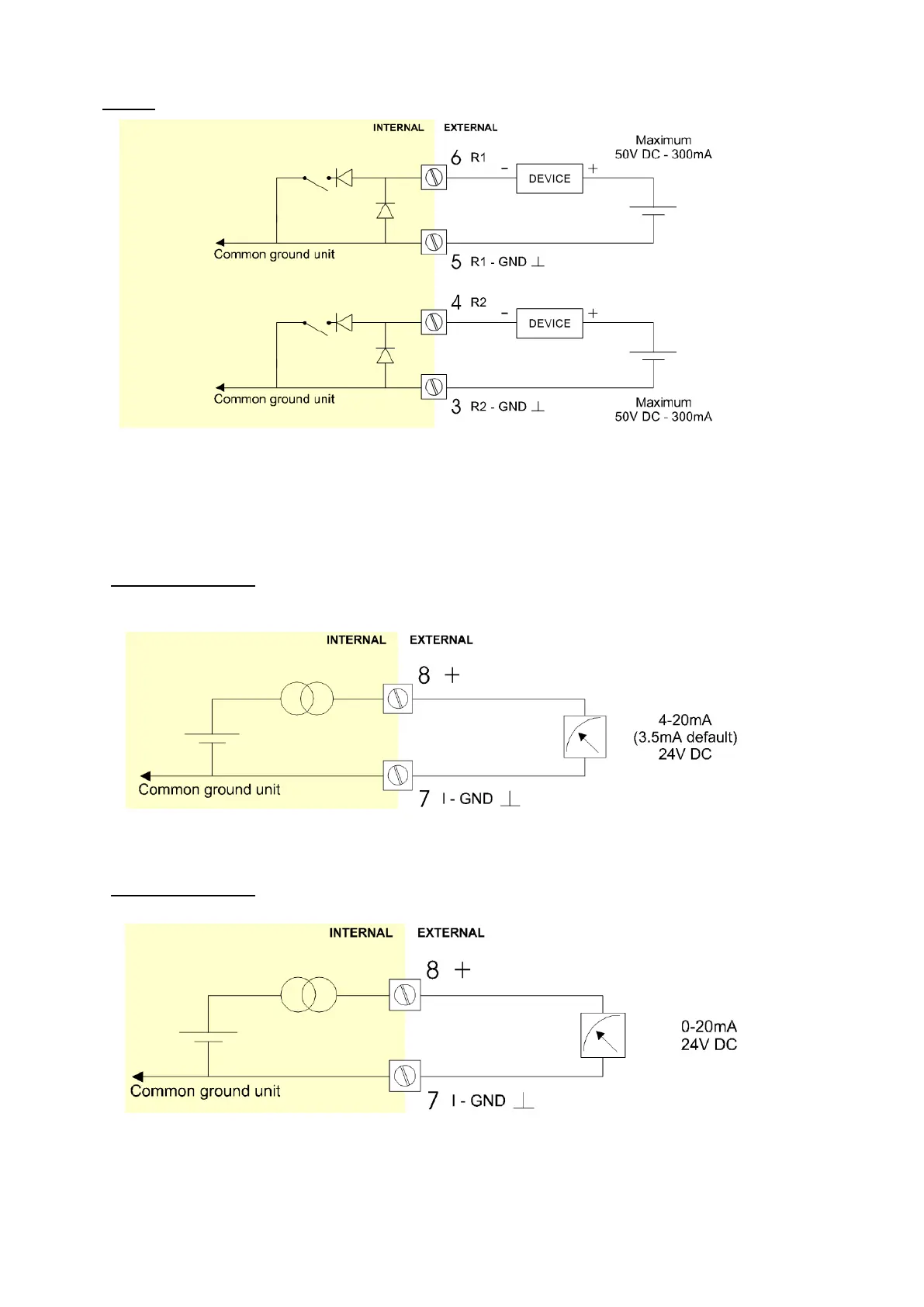

Fig. 16: Terminal connections - Transistor output (typical)
4.6.4 TERMINAL 07-08: ANALOG OUTPUT
An analog output signal proportional to the flow rate is available as standard and is configured using
Setup 8. The following signal type configurations are available, including type AP: loop powered:
Type AA
An active 4-20mA signal proportional to the flow rate is available with this option.
When the output is disabled, a 3.5mA signal will be generated on these terminals.
Max. driving capacity 1000 Ohm @ 24VDC. (Requires power supply type PD/PF/PM).
Fig. 17: Terminal connections - Active 4-20mA analog output (typical)
Type AB
An active 0-20mA signal proportional to the flow rate is available with this option.
Max. driving capacity 1000 Ohm @ 24VDC. (Requires power supply type PD/PF/PM).
Fig. 18: Terminal connections - Active 0-20mA analog output (typical)
