2 OPERATIONAL
2.1 GENERAL INFORMATION
This chapter describes the daily use of the F115-P. This instruction is meant for users / operators.
• This device may only be operated by persons who are authorized and trained by the
operator of the facility. All instructions in this manual are to be observed.
• Take careful notice of the "Safety rules, instructions and precautionary measures" in the
front of this manual.
2.2 CONTROL PANEL

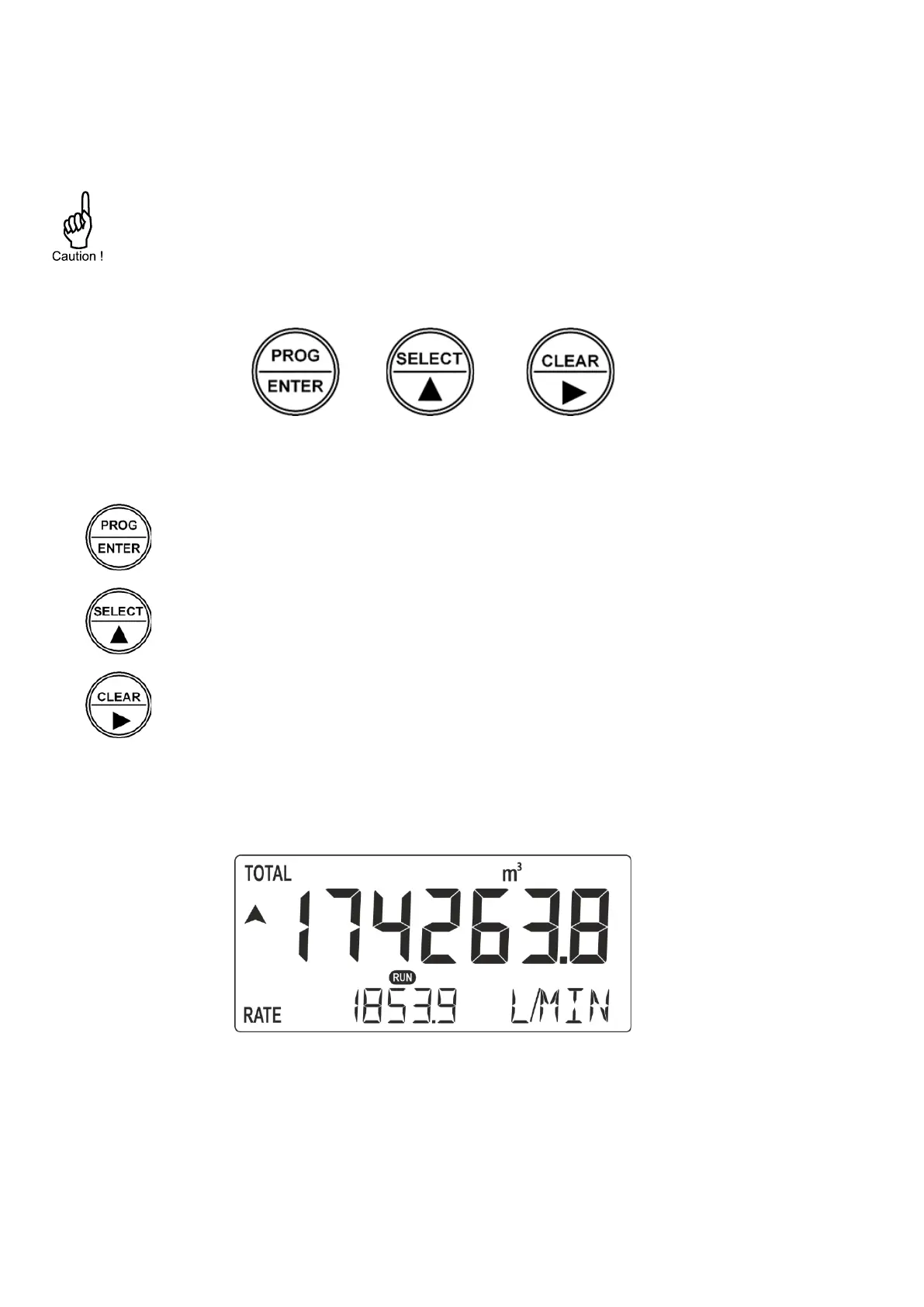

The control panel has three keys. The following keys are available:
Fig. 2: Control panel.
Functions of the keys
PROG-key
This key is used to program and save new values or settings.
The PROG-key is also used to gain access to SETUP-level; please read chapter 3.
SELECT-key
This key is used to SELECT the displayed information, like accumulated total and flow
rate.
CLEAR-key
This key is used to CLEAR the value of total.
2.3 OPERATOR INFORMATION AND FUNCTIONS
In general, the F115-P will always function at Operator level. The information displayed is dependent
upon the SETUP-settings. The signal from the connected sensor is processed by the F115-P in the
background, whichever screen refresh rate setting is chosen. After pressing a key, the display will be
updated very quickly during a 30 second period, after which it will slow-down again.
Fig. 3: Example of display information during process.
For the Operator, the following functions are available:
▪ Display differential flow rate / total or flow rate
This is the main display information of the F115-P. After the selection of any other information, it
will always return to this main display automatically. Differential total is shown on the upper line of
the display and flow rate on the bottom line. When selected in the setup menu, the display shows
the flow rate only. When you press the select key, the differential total shows momentarily.
Based on configuration, the following is shown in case of reverse flow:
- Negative flow rate and total counting down
