The F1-Series can be supplied as suitable for Safe Area or Hazardous Area.
Suitability for Intrinsic Safety is indicated in the model code by Type XI (e.g. F115-P-XI).
If Type XI is not indicated your device is not suitable for Intrinsically Safe applications!
Identification label
To identify your F1-Series device, all field mount enclosures have a weatherproof identification label
placed on the outside of the unit.

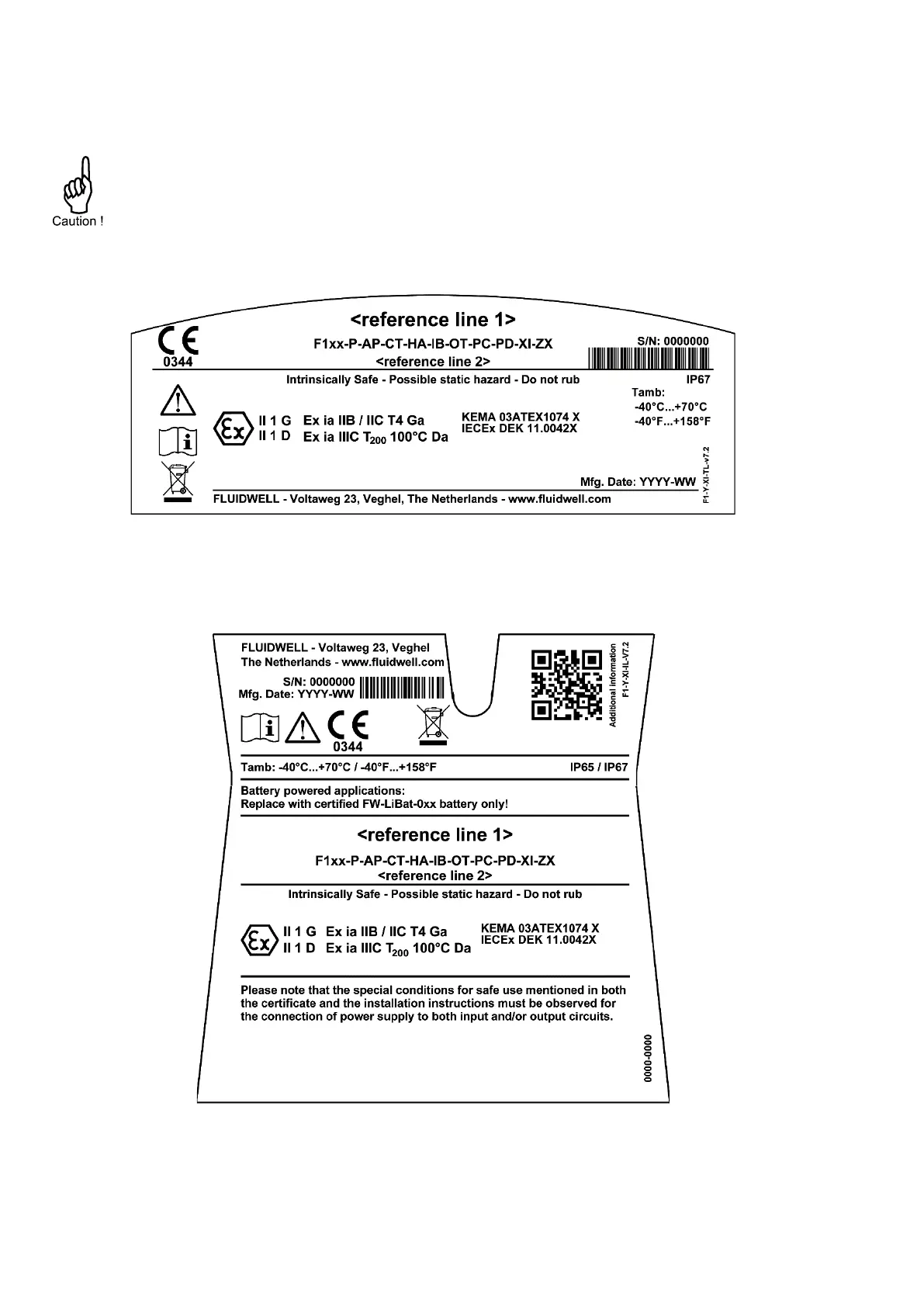

Fig. 30: Identification Example of F1-Series identification label (intrinsic safety)
Installation label
A second label is located on the inside and shows additional installation data. For panel mount
enclosures, the outside label is not available, so the inside label also serves as identification label.
After installation, the inside label is only visible from the rear side of the panel.
Fig. 31: Identification Example of F1-Series installation label (intrinsic safety)
