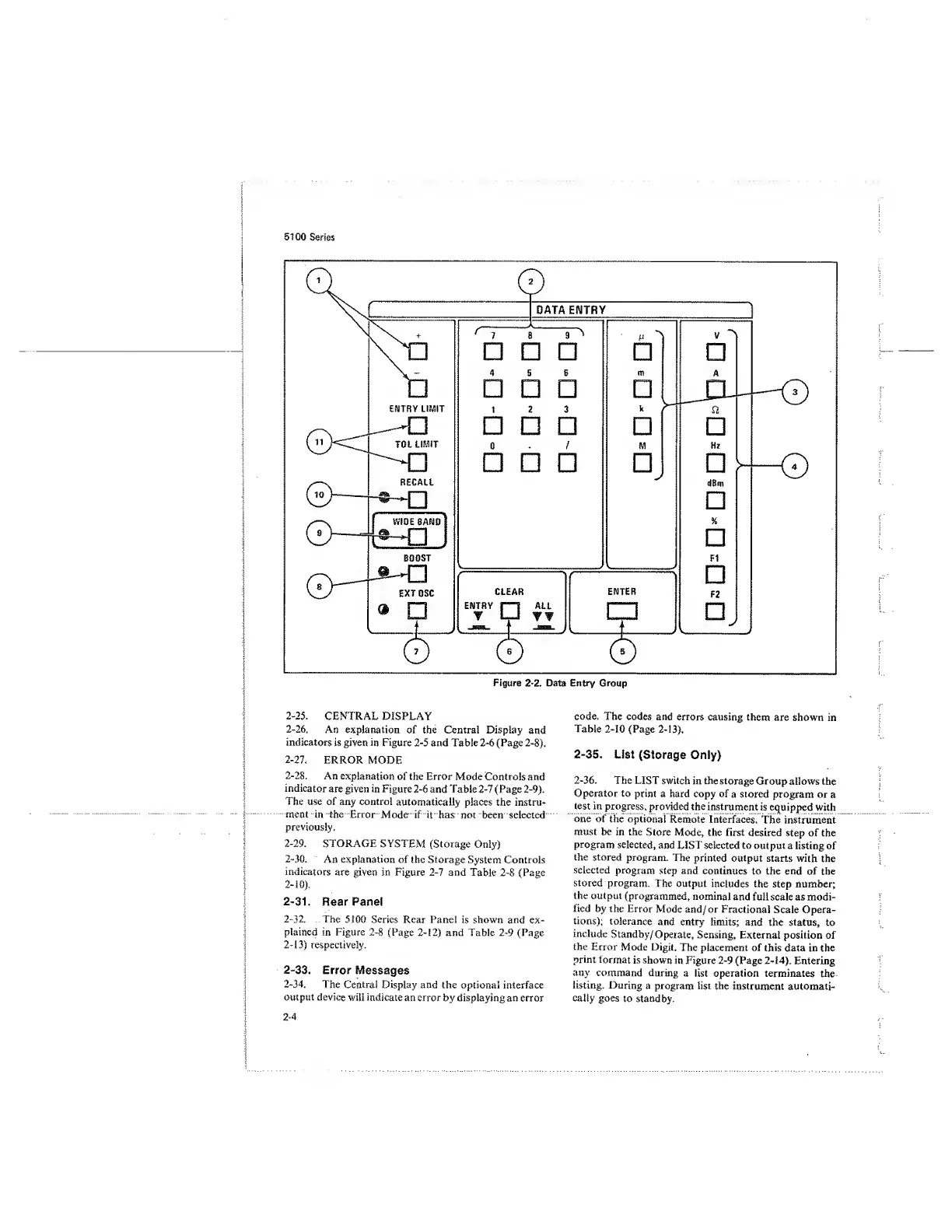

Fluke 5100 Series User Manual

5100
Series
2-25.
CENTRAL DISPLAY
2-26.
An explanation of the Central Display
and
indicators
is given
in
Figure
2-5
and Table 2-6 (Page
2-8).
2-27.
ERROR
MODE
2-28.
An
explanation
of the Error
Mode Controls and
indicator
are given
in Figure
2-6
and Table 2-7 (Page 2-9).
The use of any control
automatically places the instru-
ment in the Error Mode if
it
has not been selected
previously.
2-29.
STORAGE
SYSTEM
(Storage Only)
2-30.
An explanation of the
Storage
System Controls
indicators
are given in Figure
2-7
and
Table 2-8
(Page
2
-
10
).
2-31.
Rear Panel
2-32.
The
5100 Series Rear Panel
is
shown
and
ex-
plained in Figure
2-8
(Page 2-12) and Table
2-9 (Page
2-13) respectively.
2-33.
Error
Messages
2-34.
The
Central
Display and the
optional
interface
output device
will
indicate
an error by displaying
an error
code. The codes
and
errors causing
them
are shown in
Table 2-10
(Page
2-13).
2-35.
List
(Storage Only)
2-36.
The
LIST
switch in the
storage
Group allows the
Operator to
print
a hard copy of
a stored program or
a
test in progress,
provided
the
instrument
is equipped with
one
of the optional
Remote interfaces.
The instrument
must be in the
Store Mode, the first
desired
step of the
program
selected,
and LIST selected to
output
a listing of
the
stored
program. The
printed output starts
with
the
selected
program
step and
continues to the end
of the
stored program.
The output
includes
the step number;
the output
(programmed, nominal
and full scale as modi-
fied by the
Error
Mode and/or
Fractional
Scale Opera-
tions);
tolerance
and entry limits;
and the status, to
include
Standby/
Operate, Sensing,
External position of
the
Error Mode
Digit.
The placement of
this
data in the
print
format
is shown
in Figure
2-9
(Page 2-14).
Entering
any
command
during
a list operation terminates
the
listing.
During
a program list
the
instrument automati-
cally goes
to standby.
