5100
Series
"Err
8”
resuits
if
an
attempt
is
made to write additional
data, or
over
the
existing
data,
on
that side of the tape
cassette.
2-42.
LOCAL
OPERATION
2-43,
Initialization
2-44.
The
instrument
is initialized when power
is
applied
with
the
power
switch,
after
having been remov-
ed,
or
when
the
clear
switch
is
depressed
twice successive-
ly.
This
clears
the
registers
and memory extinguishing
all
the
indicators
except
the
following:
STDBY, LOCAL,
INT
and
500
DIVIDER.
In
addition the OUTPUT
display
reads
0.0000
mV
and the
Central Display flashes
the
number
of
the
software
revision,
e.g., 1.0.2. The
storage
system,
if
installed,
is not
cleared by the switch
depressions.
2-45.
Status
During
Function
Change
2-46.
In some
cases
the
instrument
automatically
drops
in status from
Operate to Standby
when the func-
tion
is
changed. These
cases are listed
in Table 2-11,
When
the
status changes
during a
function
change de-
press the
OPR/ STDBY
keyswitch
to
toggle
the instru-
ment back into
Operate and continue
with the
procedure.
2-47.
Meter
Connection
Procedure
2-48.
Verify the
instrument
is in STDBY,
then connect
the meter to be
calibrated
to the Output
terminals
using
the
applicable
configuration from
Figure
2-12
(Page
2-17),
HEADING
DATE
INSTRUMENT
STEP OUTPUT
&
REFERENCE
LIMITS
STATUS
Eta
H
H
i t i
L
Program
Step Number
2.
OUT:
Actual
Output
NOM:
Programmed
Output
(nominal)
FSREF:
Full
Scale value if
the
nominal is
a
fractional
scale
3.
TOL:
Tolerance
limits
in
percent of
dB
ENT:
Positive
entry limit
Negative entry
limit
(printed
only if
applicable)
4.
STDBY
or
OPR. EXT
SENSE
or
INT SENSE
EXT
OSC
or WIDEBAND
or 5012 DIV OVRD
(mutually
exclusive)
and
BOOST
Position
of the Error Cursor
(1
for
Output Display MSD down
to
6
for the
LSD and FREQ for
frequency)
NOTE
If
the
second
entry within
a
field
is
not used, subsequent
entries within
the field
fill
the vacated space.

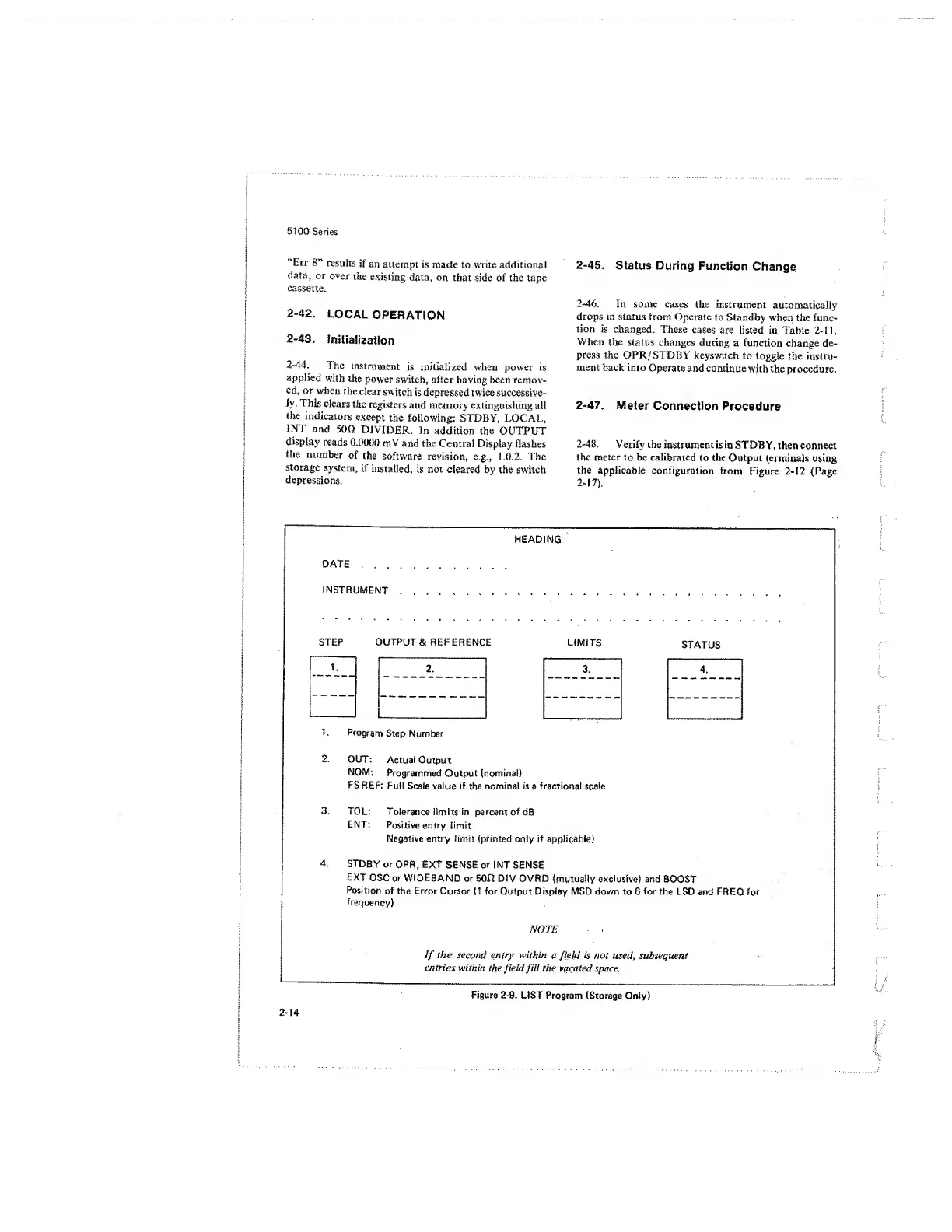

Figure 2-9.
LIST Program
(Storage
Only)
2-14
