Operation
Summary of the Features
3
3-9
BAT OUT
1
5
6
CAUTION:
FOR FIRE PROTECTION,
REPLACE ONLY WITH
A 250V FUSE OF
INDICATED VALUE
T 3/16 (3AG)
100/120
220/240
I
120Vac
50/60 Hz 66W MAX
O
FLUKE CORPORATION
MADE IN USA
2
3
4
BAT
k8f.eps

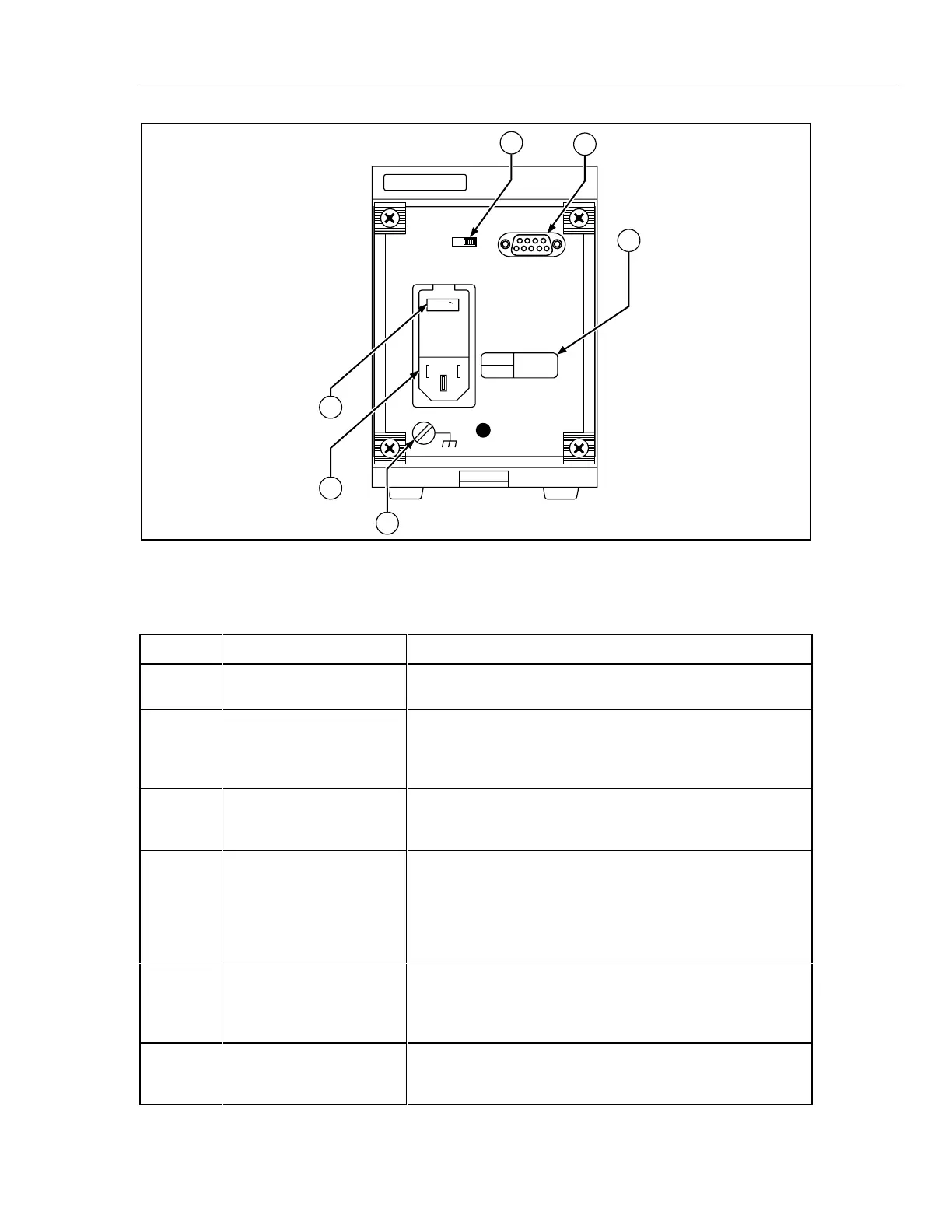

Figure 3-4. 732B-7001 External Battery/Charger Rear Panel Features
Table 3-4. 732B-7001 External Battery/Charger Rear Panel Features
Item Fearture Description
1
BATTERY Switch Connects and disconnects the battery from the internal
charger.
2
BAT OUT Connector Provides the connection point for dc output from the battery
unit. Pins 5 and 9 are the dc voltage positive line, and pins 1
and 6 are the dc voltage negative line. All other pins are not
used.
3
Fuse Type and Rating
Label
States the correct fuse type and rating for use in the 100, 120,
220, and 240V settings. Use of an improper fuse defeats the
safety design of the unit and can cause damage.
4
CHASSIS Connector A connection point for chassis ground. You can use this
connector when operating on battery power to ground the
chassis to the earth ground point in a system of
interconnected instruments. Another chassis ground
connection is on the front panel. (See the text in this section
for more information about guarding and grounding.)
5
Line Cord Plug and Fuse
Holder
Houses the ac line fuse and the male three-prong connector
for an IEC-type power cord. The plastic cover fits over the fuse
so it can be accessed only when the power cord is not
connected.
6
Line Voltage Selector Allows selection of four ac line voltage settings, 100, 120, 220,
and 240V, each with a tolerance of 10%. The accepted line
frequencies are 50 and 60 Hz.
