2-19. Autoranging Kilohms
Although it is not indicated on the front panel, there is an additional
autoranging range available: the autoranging k
Ω
range, which consists of 2
k
Ω
, 20 k
Ω
, and 300 k
Ω
. To select this range, you must simultaneously press
the M
Ω
and the 200
Ω
switches as shown in Figure 2-13. Like the
autoranging M
Ω
ranges, the autoranging k
Ω
ranges have enough voltage to
turn on semiconductor junctions. Note that the use of the relative function
with the autoranging k
Ω
ranges is restricted to the autoranging k
Ω
ranges.
Refer to the description of the relative function for more information. The
autoranging k
Ω
has the same decrease in resolution (see Table 2-3) and the
same display hysteresis as the autoranging M
Ω
.
2000mA
2000nS
A
A
COMMON
V Ω S
V
Ω
S
200mA
200
200k
200µA
DC
AC
Hz
200mV
200Ω
20mA
20
20k
2mA
2
2k
1000 DC
750 AC
MΩ
Hz
dB
REL
1000V DC
750V AC
MAX
2A MAX
500V MAX
!
!
Low (-)
High (+)
1. Push both the MΩ and
200Ω switches at the
same time to select the
KW autorange.
2. Press switch in to select
resistance function and
measure resistance as
described in Figure 2-12.
dx14f.eps

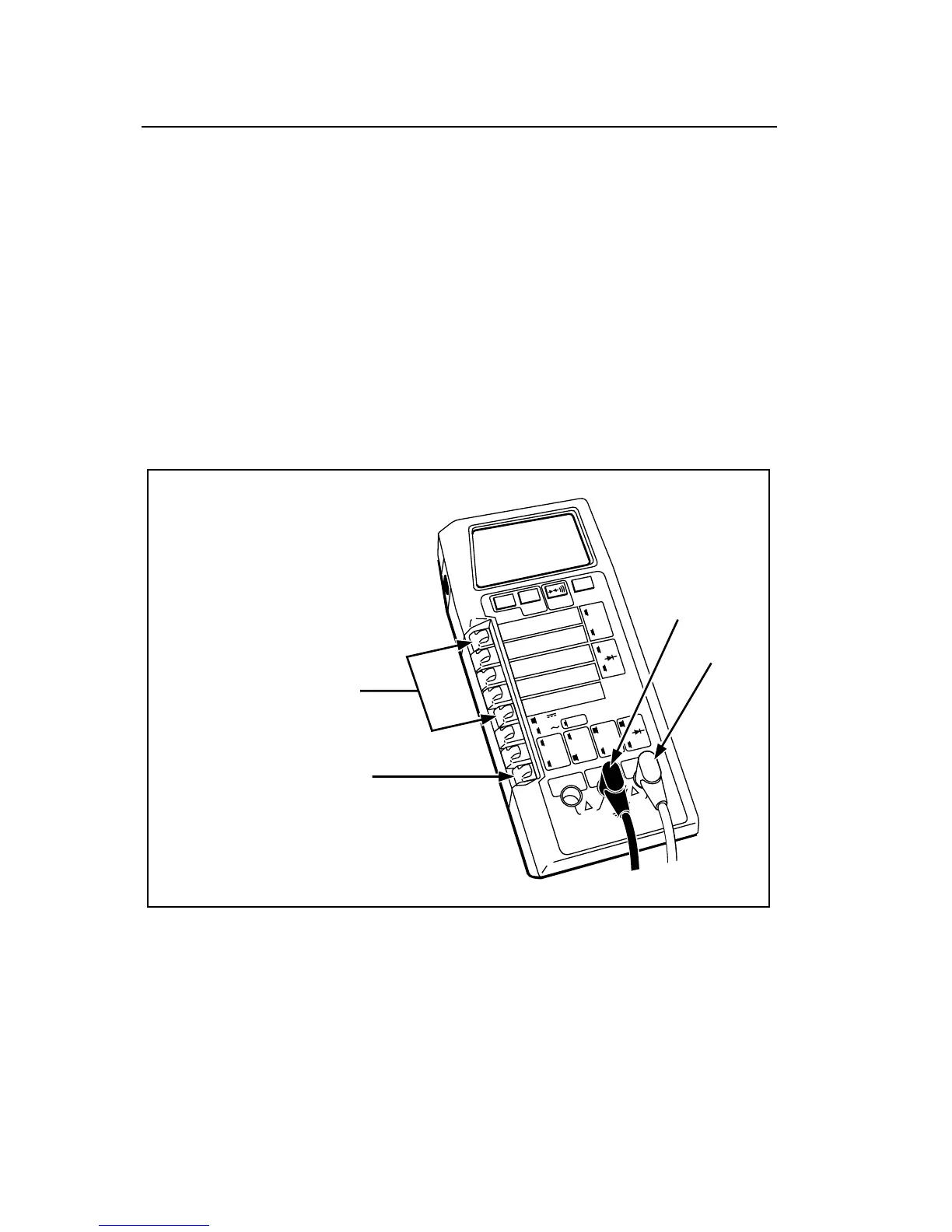

Figure 2-13. Selection of Autoranging Kilohms
