Fluke 8808A User Manual

Preparing the Meter for Operation
Power Considerations 2
2-5
120
eue20.eps

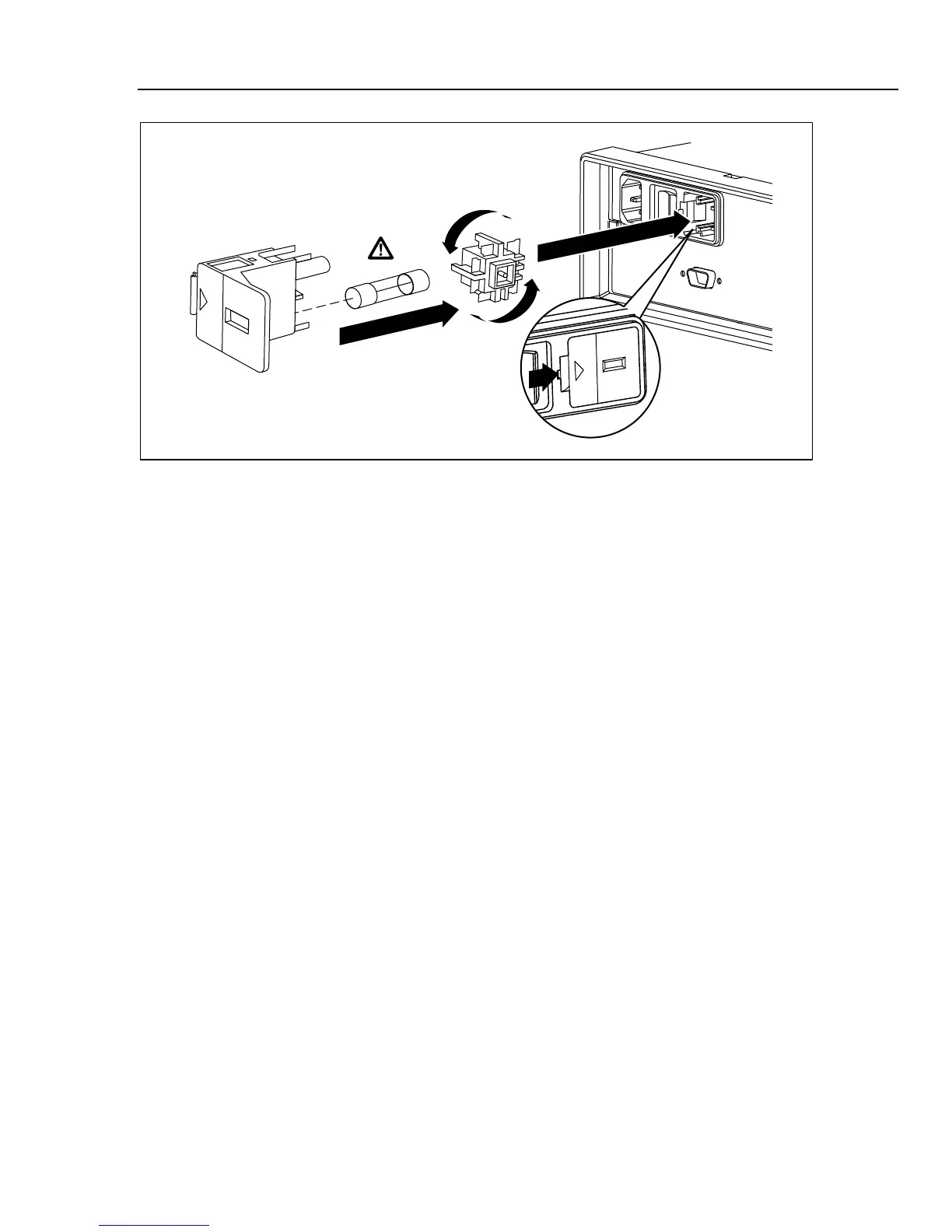

Figure 2-1. Replacing the Line Power Fuse
Current-Input Fuses
The 200 mA and 10 A inputs are protected by user-replaceable fuses.
• The 200 mA input is protected by a fuse (F2) rated at 440 mA, 1000 V (fast
blow), 10,000 A minimum breaking capacity.
• The 10 A input is protected by a fuse (F1) rated at 11 A, 1000 V (fast blow),
10,000 A minimum breaking capacity.
XW Warning
For protection against fire or arc flash, replace a blown fuse
with a fuse of an identical rating.
To test the current-input fuses:
1. Turn on the Meter and plug a test lead into the INPUT VZYR HI terminal.
2. Press O.
3. Press V to set the range to 200 Ω. Only the 200 Ω, 2 kΩ, and 20 kΩ ranges
can be used to test the mA input fuse.
4. Insert the other end of the test lead into the mA terminal. If the fuse is good, the
Meter displays a reading of <10 Ω. If the fuse is blown, the Meter displays 0L to
indicate an overload.
5. Remove the test lead from the mA terminal and insert it into the 10 A terminal.
If the fuse is good, the Meter displays a reading of <2 Ω. If the fuse is blown, the
Meter displays 0L to indicate an overload.
XW Warning
To avoid electric shock, remove the power cord and any test
leads from the Meter before opening the current-input fuse
cover.
Shop for Fluke products online at:
1.877.766.5412
www.MyFlukeStore.ca

Fluke 8808A Specifications

General

Product type	Digital multimeter
Product color	Grey, White
Frequency range	0.2 - 2 kHz
AC current range	0.2 - 10 A
AC voltage range	0.2 - 750 V
DC current range	0.0002 - 10 A
DC voltage range	0.2 - 1000 V
Resistance range	200 - 100000000 Ω
Placement supported	Bench multimeter
Resistance resolution	0.001 Ω
Resolution (frequency)	0.0001 Hz
Resolution (AC current)	100 µA
Resolution (DC current)	1 µA
Resolution (DC voltage)	1 mV
Basic accuracy (frequency)	0.01%
Basic accuracy (DC current)	0.02 + 0.005
Basic accuracy (DC voltage)	0.015 + 0.003
Basic accuracy (resistance)	0.02 + 0.003
Display digits	5.5 digits

Weight and Dimensions

Depth	297 mm
Width	217 mm
Height	88 mm
Weight	2100 g
