Fluke 8808A User Manual

Operating the Meter from the Front Panel
Selecting a Measurement Function 3
3-11
Frequency Ranging
Frequency measurements are automatically ranged so that a frequency measurement is
always displayed with maximum resolution.
To select a range manually, press F to select the frequency function, and then press
U or V to select a range manually. Manual ranging can be performed on readings
displayed in the primary display only.
If you manually select a frequency range and the measurement exceeds the full-scale
value of that range, 0L is displayed to indicate an overload. Refer to the “Electrical
Specifications” section in Chapter 1 for frequency ranges and full-scale values.
Measuring Resistance
The Meter offers 2-wire and 4-wire ohms measurement. Press O to toggle between 2-
wire and 4-wire measurement modes. The Meter displays 2*4 Wire at 2 wire or 2x4 wire
resistance measurement and displays 4 Wire at 4 wire resistance measurement.
2-Wire Resistance Measurement
To perform a 2-wire resistance measurement:
1. Connect test leads between the Meter and the circuit under test as shown in
Figure 3-5.
2. If required, press O to select 2-wire resistance measurement mode. 2*4 Wire is
displayed.
The function and measurement are displayed.
HI
LO
1000V
750V
2W/4W
MAX
INPUT SENSE
HI
LO
4 W
10 A
mA
200 mA
MAX
10 A
MAX
1000V CAT I
600 V CAT II
500 V pk
V
1V
300V
eue11.eps

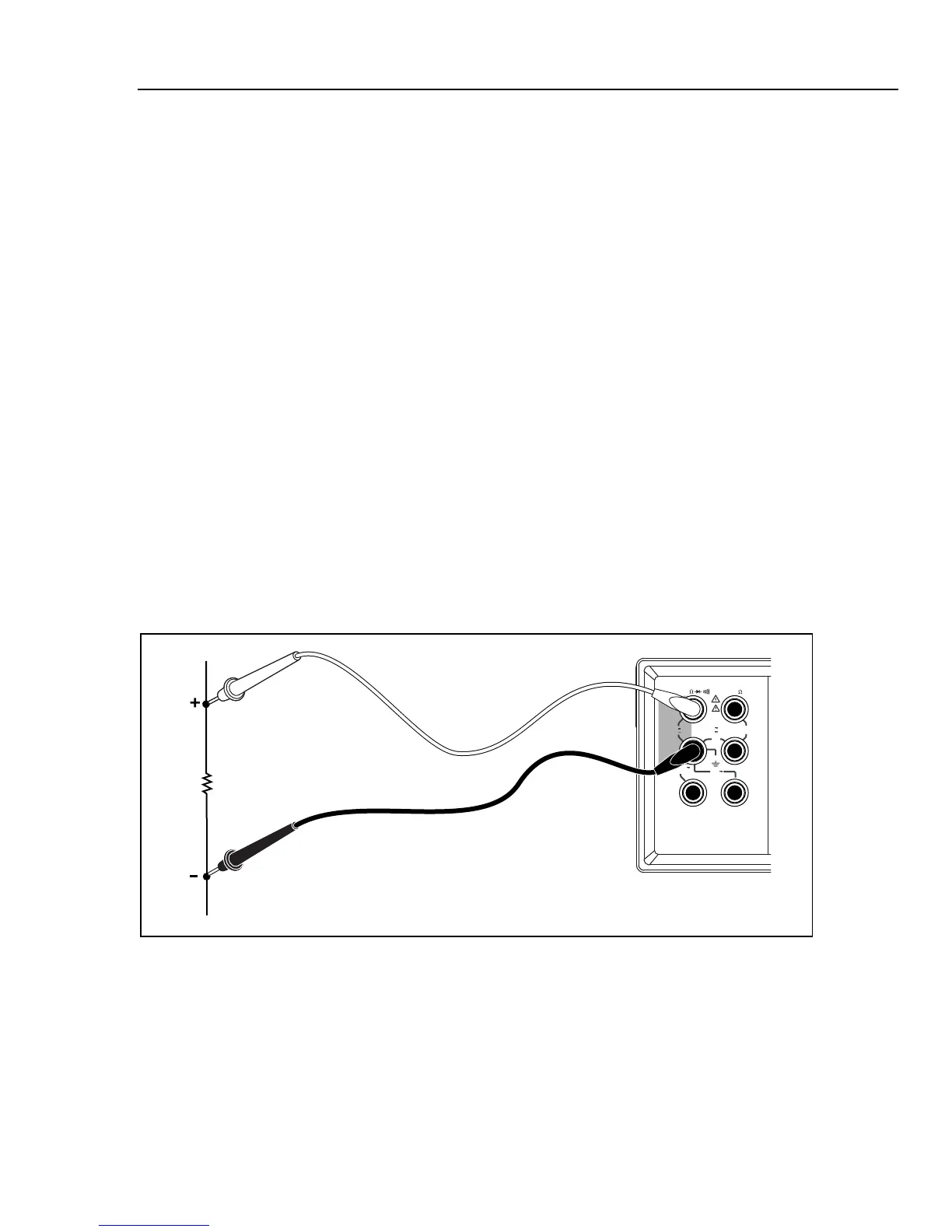

Figure 3-5. 2-Wire Resistance Measurement
Shop for Fluke products online at:
1.877.766.5412
www.MyFlukeStore.ca

Fluke 8808A Specifications

General

Product type	Digital multimeter
Product color	Grey, White
Frequency range	0.2 - 2 kHz
AC current range	0.2 - 10 A
AC voltage range	0.2 - 750 V
DC current range	0.0002 - 10 A
DC voltage range	0.2 - 1000 V
Resistance range	200 - 100000000 Ω
Placement supported	Bench multimeter
Resistance resolution	0.001 Ω
Resolution (frequency)	0.0001 Hz
Resolution (AC current)	100 µA
Resolution (DC current)	1 µA
Resolution (DC voltage)	1 mV
Basic accuracy (frequency)	0.01%
Basic accuracy (DC current)	0.02 + 0.005
Basic accuracy (DC voltage)	0.015 + 0.003
Basic accuracy (resistance)	0.02 + 0.003
Display digits	5.5 digits

Weight and Dimensions

Depth	297 mm
Width	217 mm
Height	88 mm
Weight	2100 g
