DSP-4000 Series
Users Manual
2-12
Wall
outlet
PC
Transition
outlet
Test equipment
cord
Test equipment
cord
Horizontal
cross-connect
Horizontal
cabling
Telecommunications
closet
Work Area
Test Tool
Smart
Remote
TALK
Hub
Basic Link LIA
Basic Link LIA
oy68f.eps

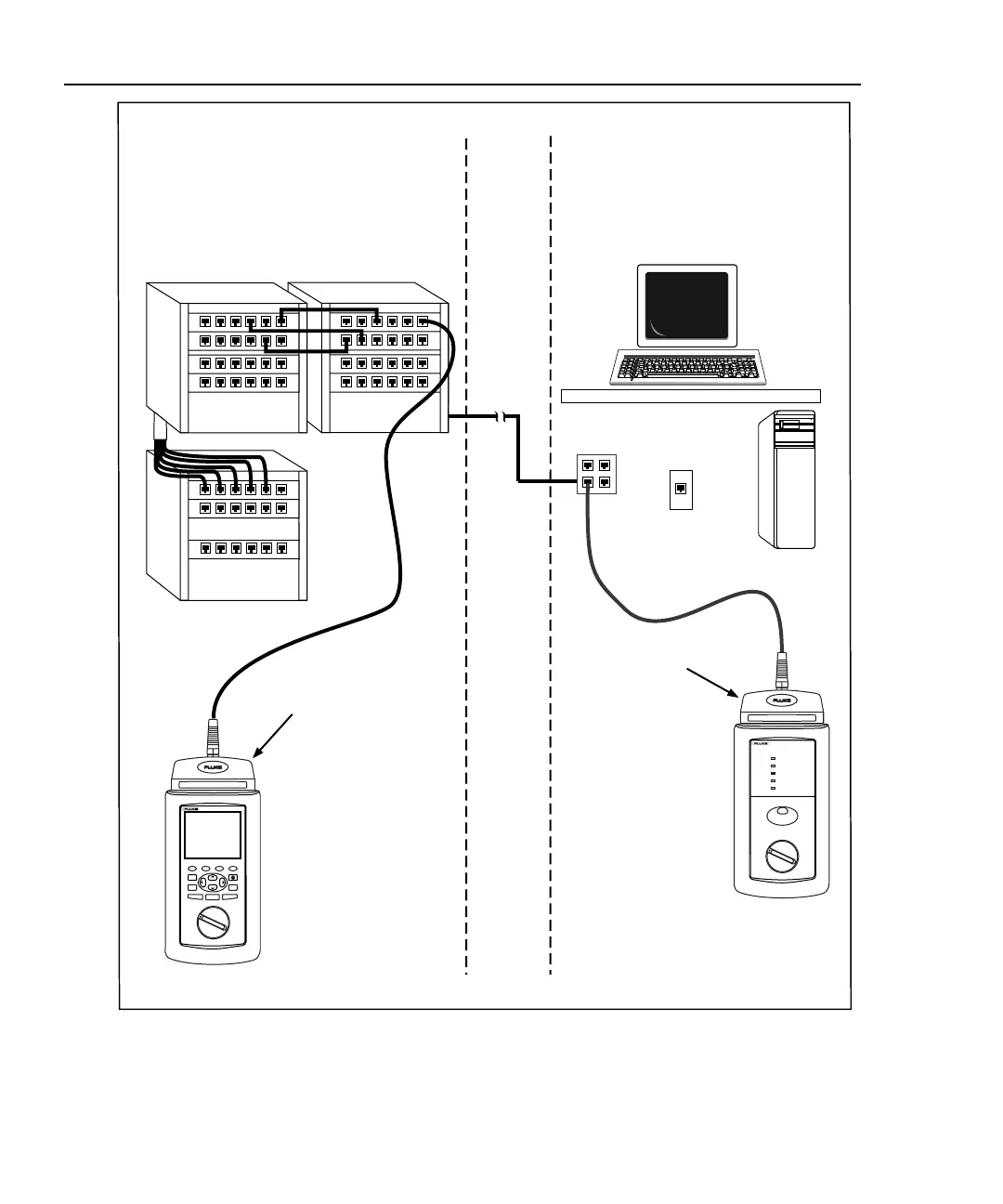

Figure 2-4. Typical Test Connections for a Basic Link
