Fluke NetTool User Manual

6
Wiremap
When both ends of a cable cannot be connected to
NetTool (e.g., one end is in wiring closet), use the
external wiremap function.
⇒ Attach the near end of the cable to the NetTool.
⇒ Attach the wiremap adapter to the far end of the
cable.
⇒ Power up NetTool.

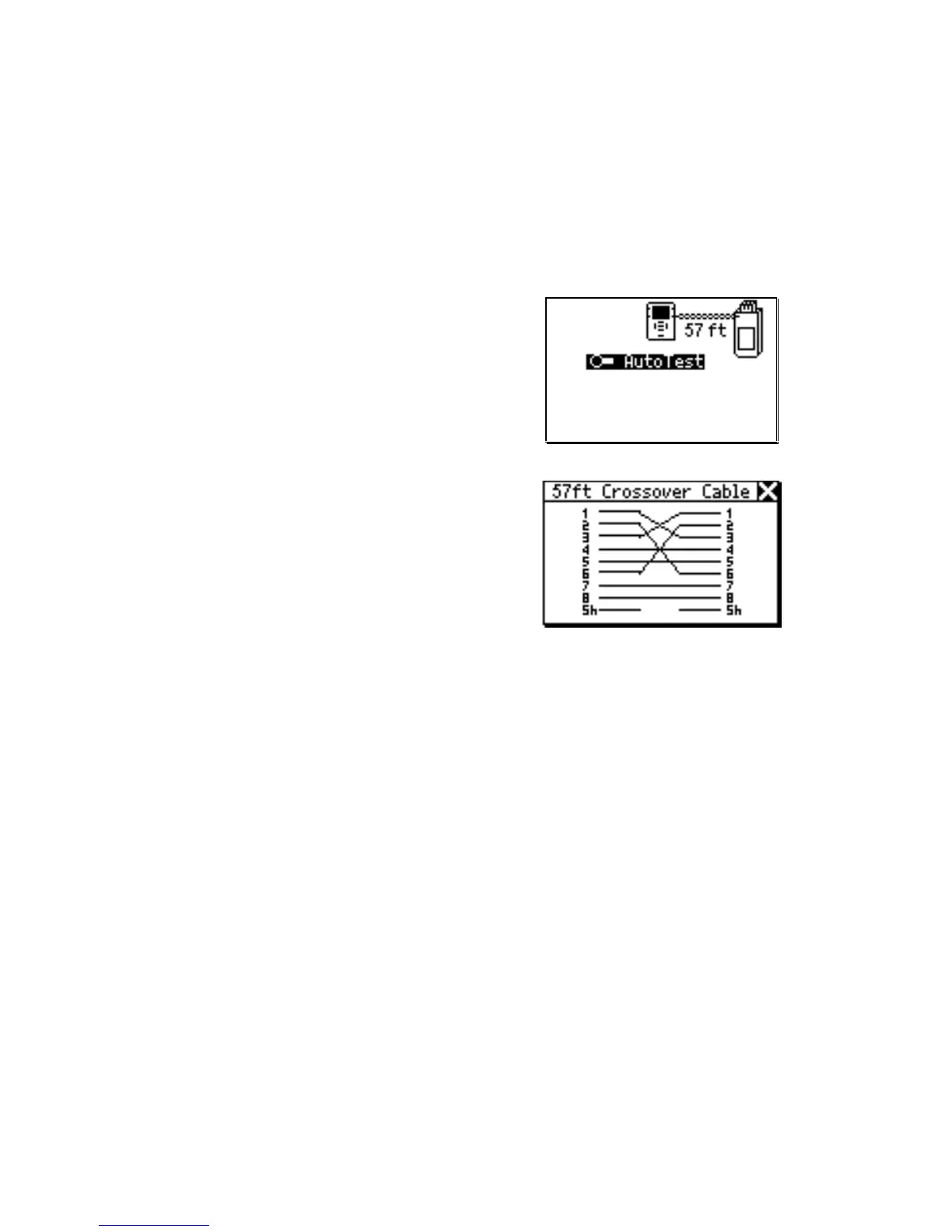

AutoTest flashes.
⇒ Press Select.
⇒ Highlight the Wiremap
icon and press Select.
⇒ If pin configuration
checks out and there
are no opens, shorts or
split pairs, you can rule
out the cable as the
cause of a problem.

Fluke NetTool Specifications

General

Display	LCD
Interface	RJ45
Network Discovery	Yes
Connectivity Testing	Yes
Switch Port Identification	Yes
Power over Ethernet (PoE) Detection	Yes
