Fluke NetTool User Manual

9
Inline Mode
They say two ports are better than one…
Note
NetTool can’t tell you about what it doesn’t
see. NetTool must sense traffic on a network
or device so it can supply protocol or health
information.
Inline means NetTool is connected between two
devices simultaneously like a PC and hub. Use this
mode to verify that a PC will communicate properly with
the network.

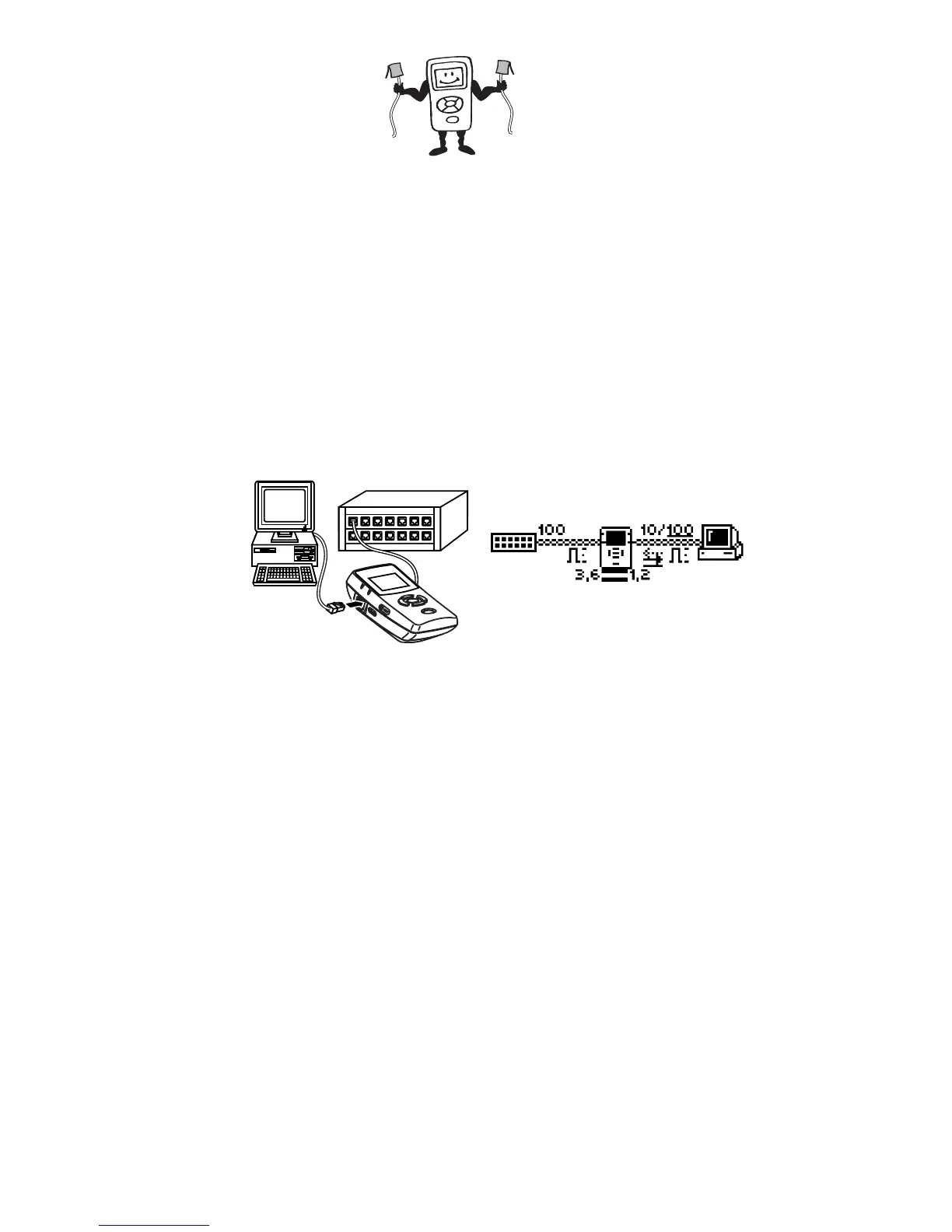

afq02f.eps
⇒ Plug NetTool inline between the PC and the
network.
⇒ Power up the PC.
⇒ Select AutoTest. The example shown above is
NetTool connected inline between a PC and a
hub. The icons represent the discovered devices.
Check
AutoTest (page 19) for more on the icons.

Fluke NetTool Specifications

General

Display	LCD
Interface	RJ45
Network Discovery	Yes
Connectivity Testing	Yes
Switch Port Identification	Yes
Power over Ethernet (PoE) Detection	Yes
