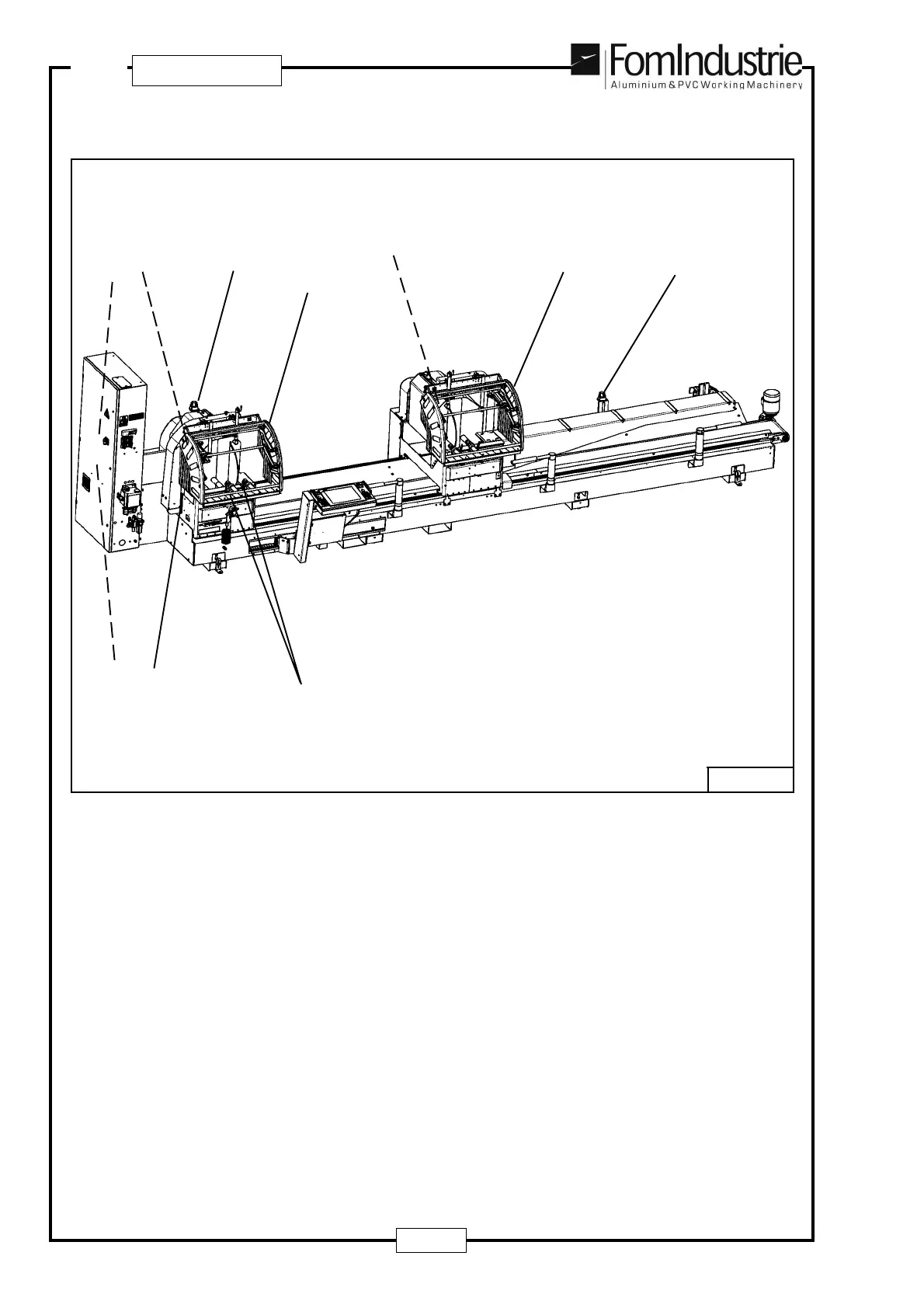

4.4 SAFETY DEVICES (Fig. 04-01)
List of safety devices
1 - Pressure switch which cuts in to stop the machine in the event of anomalous air pressures
2 - Vices non return valves (4)
3 - Microswitch for controlling blade return to rest position with enabling signal for hood opening
4 - Integral safety hoods around cutting area with guard closing microswitch (2)
5 - Electronic safety relays for 2 handed control
6 - Blade braking circuit board (2)
7 - Access prevention bands (4)
8 - Acoustic/light signal: cutting – head tilting – mobile head roller table automatic positioning
9 - Light signal: cutting – head tilting – mobile head roller table automatic positioning
04-01
1
2
3
7
4
6
9
8
4
5
