9.13 RETRACTABLE MIDDLE PROFILE SUPPORT (OPTIONAL)
To fit one of the retractable middle profile supports (supplied AS AN OPTIONAL EXTRA) to the machine proceed
as follows (the machine is in any case supplied with the necessary mechanical and pneumatic connections
to allow easy fitting).

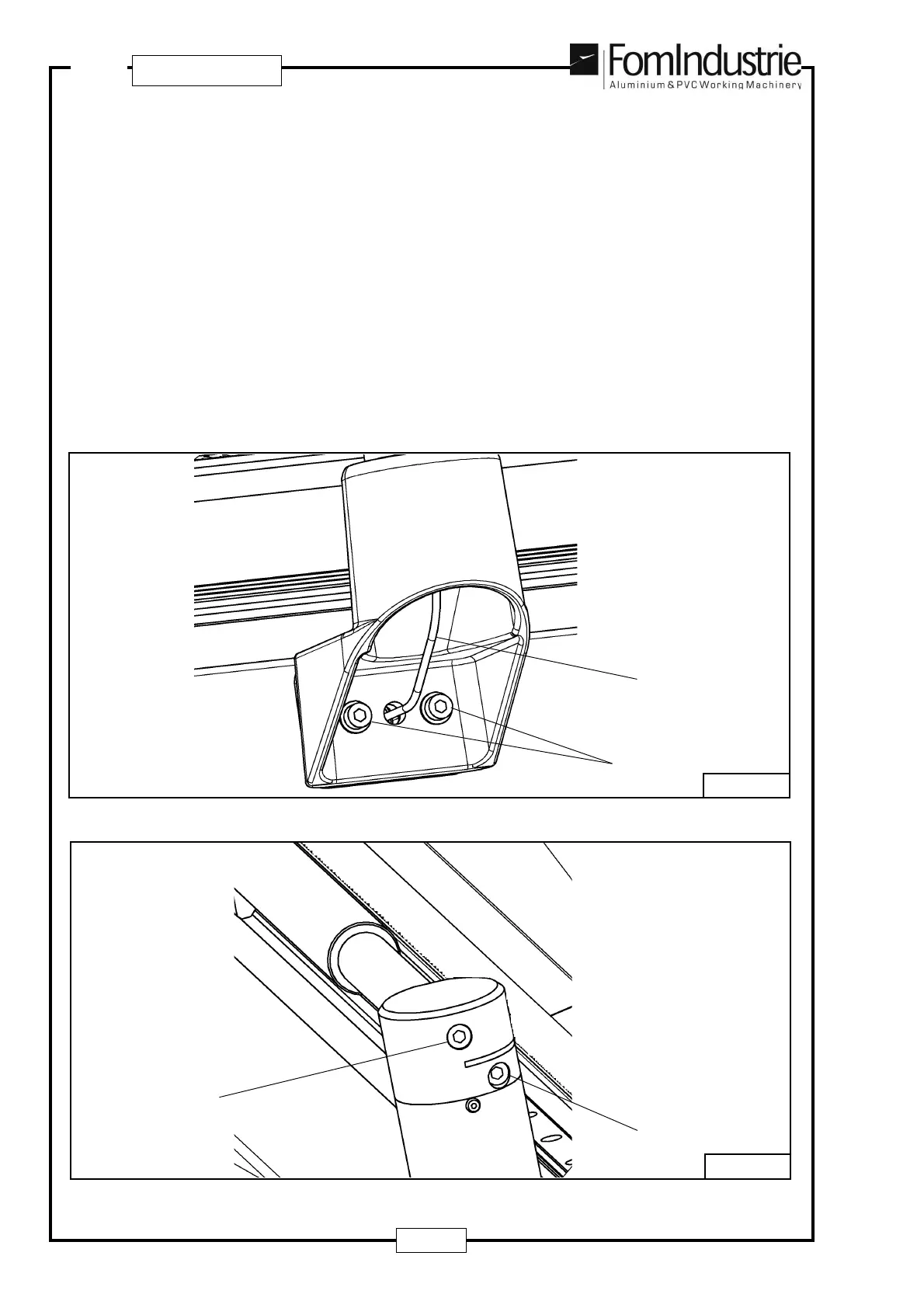

Fit the support over the 2 holes on the front of the base using the 2 screws “A” - Fig. 09-25.
Make the pneumatic connection by connecting hose “B” - Fig. 09-25 as represented in figure.
Adjust, the height of the support, if necessary, using cam “C” - Fig. 09-26.
If necessary, adjust the support horizontally using screw “D” - Fig. 09-26 making sure that the horizontal roller
at rest is parallel with the machine base.
09-26
C
D
WARNING
The LH profile support should be fitted to the first or second pair of holes on the machine base.
The RH profile support, for the 6.6 m version only, should be fitted to the third pair of holes on the machine base.
