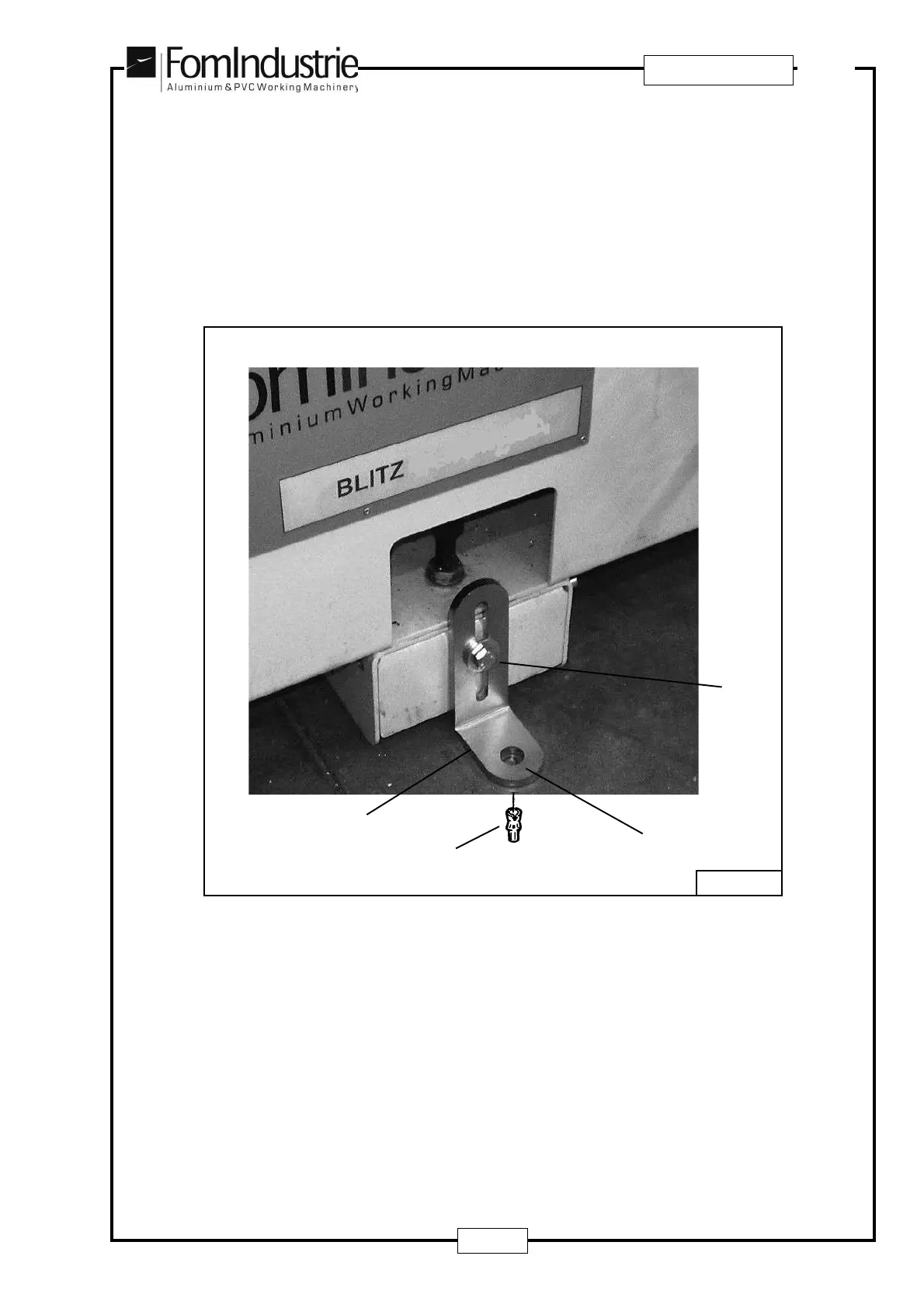

5.5 FIXING TO THE GROUND (FIG. 05-18)
Once the levelling operations are complete, proceed with fixing the machine to the ground.
The machine comes supplied with. 4 brackets (these are the same brackets that were used to secure the heads
in transit). The brackets “A” are fixed to the front (2) and rear (2) sides of the machine (see Ref. “B”) and to
the floor as shown in the figure.
- Make the two holes for fixing to the ground through points “C”.
- Insert the two “STOP plugs” in the holes”D” just made.
B
C
A
D
05-18
