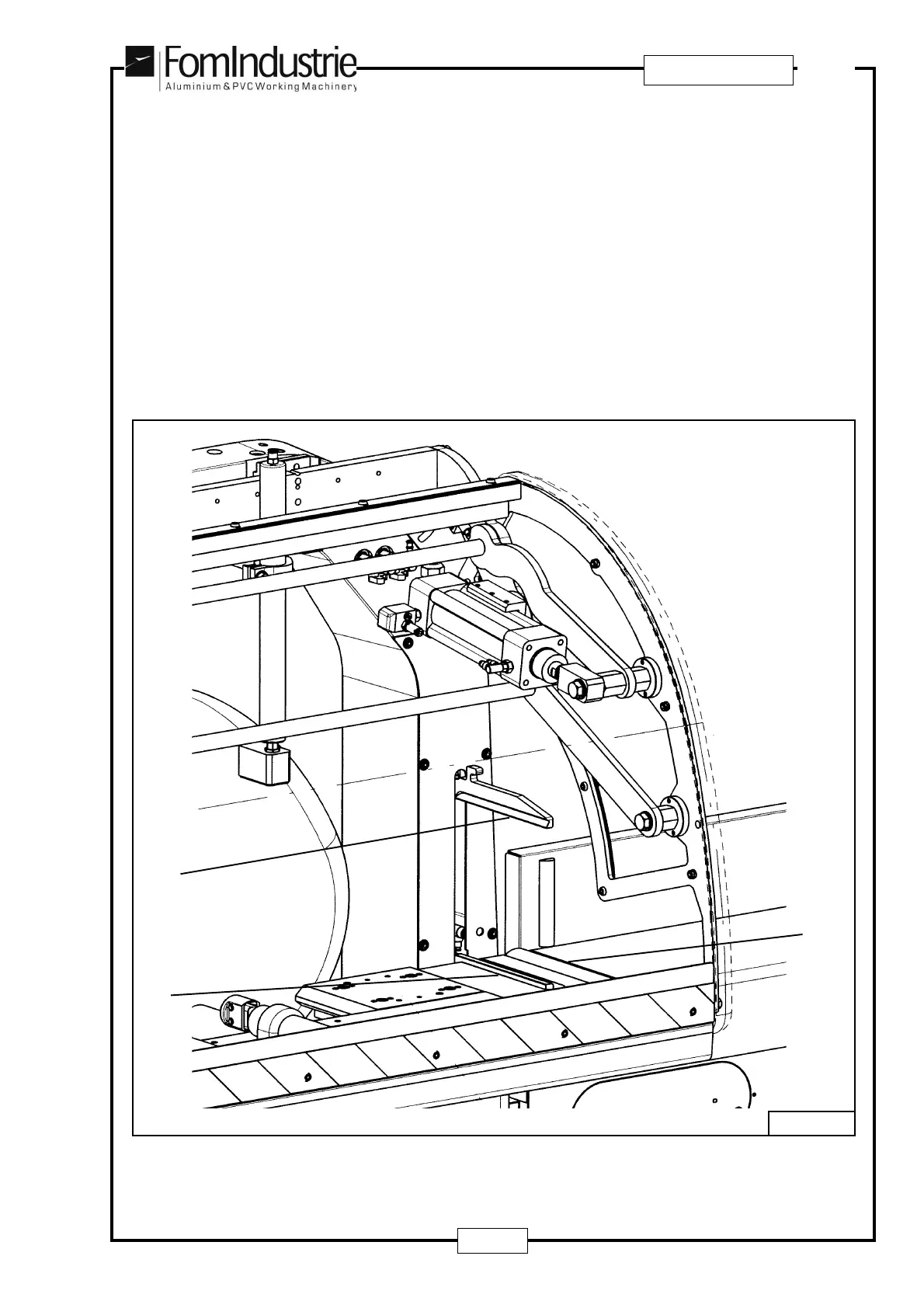

9.10 ADJUSTING THE PROFILE HEIGHT MEASURER (if present) (Fig. 09-22)
To exclude the profile height measurer, located on the mobile head, lower lever “A” completely.
WARNING
Before taking any readings with the profile height measurer, check that the surface “B” on which the piece rests
is higher than the rollers “C” on the mobile head roller table so that the profile lies perfectly on the table “B”.
NOTE
The use of the supplementary vertical vice kit is recommended to be placed near the measurer so as to allow
the profile to lie perfectly on the table “B”.
09-22
C
A
B
