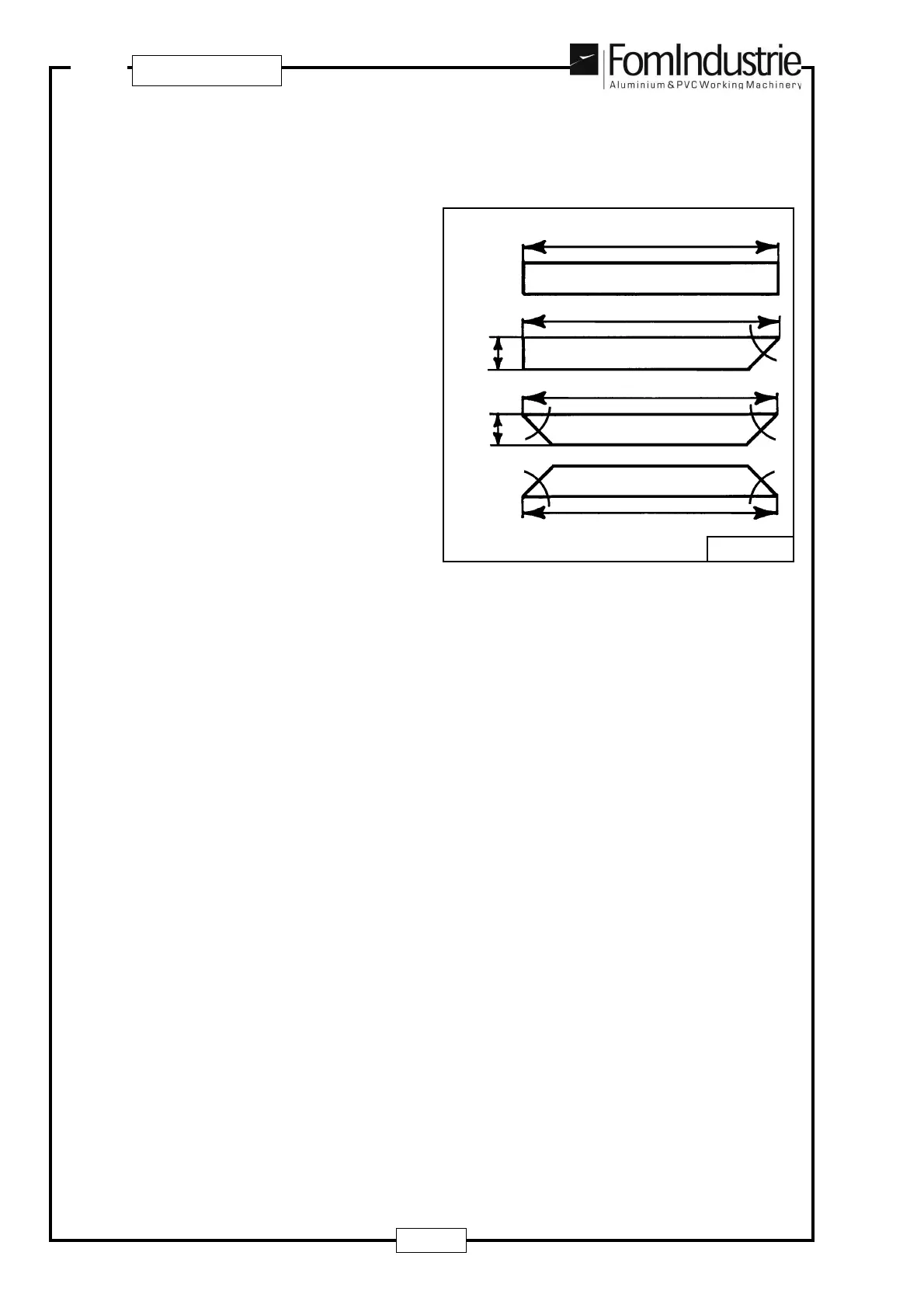

9.11 CALCULATING THE CUTTING LENGTH (FIG. 09-23)
The following situations are three basic examples of calculating the cutting length.
1) To cut profile “1” read length “X” on the program
display
2) To obtain the reading “X” (same length as 1) for
profile cutting “2” (Right and/or Left) move the
head subtracting from the previous measurement
once the h value.
3) To obtain reading “X” (same length as “1 and 2”)
to cut profile “3” move the head subtracting from
the previous measurement “1” twice h.
4) To cut profile “4” read length “X” on the program
display.
Of course the important variable in determining the
length of the piece to be cut is always “h” which
changes depending on the profile used.
2) h
3) h
1)
X
X
X
45°
45°
45°
X
45°45°
4)
